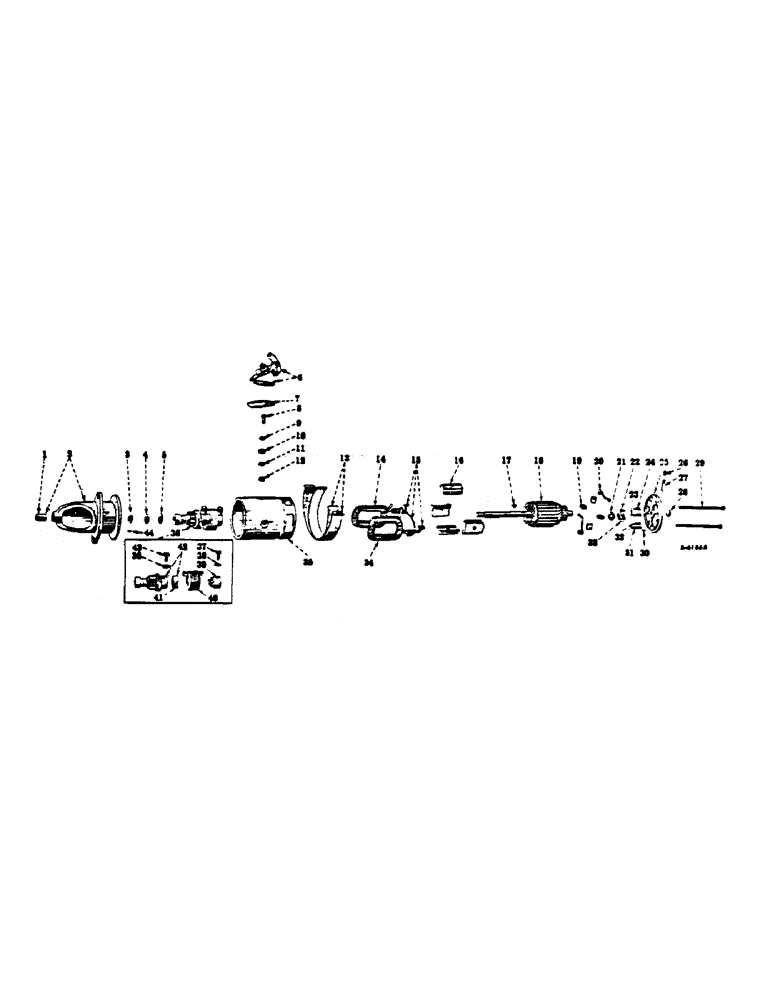

Запчасти Case IH 140 (08-09) - ELECTRICAL, CRANKING MOTOR, DELCO-REMY (06) - ELECTRICAL

1107093

SPARE PART MOTOR ASSY, cranking, 6 volt, order 1108096

1шт.

104221A2GV

STARTER MOTOR

Value, 6V, 10MT Inertia

1шт.

104221A2R

REMAN-STARTER

Remanufactured Starter 6 volt, 10MT intertia to Remanufactured Start

1шт.

104221A1C

CORE-STARTER

Return Number, Starter 6 volt, 10MT inertia

1шт.

1

810620

BUSHING

BUSHING, drive housing

1шт.

2

1910093

HOUSING W/BUSHING, 810620, drive

1шт.

3

833602

WASHER

WASHER, 1/16 x 63/64 drive end space

1шт.

4

1849774

WASHER

WASHER, 1/16 x 1-1/16 drive end space

1шт.

5

809815

WASHER

WASHER, 3/32 x 1-1/6 drive end space

1шт.

6

1932131

SWITCH

SPARE PART SWITCH ASSY, starting

1шт.

132892

SCREW,Sl Rnd Hd, #10 - 32 x 1/4"

SCREW, 10-32 x 1/4 C-Z slt-rd-hd mach

2шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

7

1912376

GASKET

GASKET, starting switch

1шт.

8

821524

ARM

terminal field

1шт.

9

1913958

WASHER

WASHER, 9/16 OD insulating terminal stud

2шт.

10

1913959

WASHER

WASHER, 3/4 OD insulating terminal stud

2шт.

11

812622

WASHER

WASHER, 3/8 x 11/16 x 1/32 plain

2шт.

11

805790

WASHER

WASHER, 1/16 thick terminal stud plain

1шт.

12

805258

NUT

BAND W/NUT, 120614 and screw, 132926, cover

1шт.

13

1886923

BAND

BAND W/NUT, 120614 and screw, 132926 cover

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

132926

SCREW,Sl Rnd Hd, #10 - 32 x 1/4"

SCREW, 10-32 x 1-1/4 C-Z slt-rd-hd mach

1шт.

14

1923194

SPARE PART COIL, field

2шт.

15

819632

LEAD, brush and field connector

1шт.

132892

SCREW,Sl Rnd Hd, #10 - 32 x 1/4"

SCREW, 10-32 x 1/4 C-Z slt-rd-hd mach

2шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

16

810601

SHOE, pole

4шт.

1881869

SCREW

SCREW, pole shoe

4шт.

17

124546

WOODRUFF KEY,#6, 5/32" x 5/8", HT

WOODRUFF KEY, #6, 5/32" x 5/8", HT

1шт.

18

818002

ARMATURE

ARMATURE

1шт.

19

811553

BRUSH

BRUSH

4шт.

115903

SCREW

SCREW, 6-32 x 1/2 blued slt-rd-hd mach

4шт.

NLS

NO LONGER SERVICED

Washer, Lock, #6

4шт.

20

813554

CABLE

LEAD, ground brush

2шт.

122159

HOUSING

SPARE PART SCREW, 8-32 x 1/4 C-Z stl-rd-hd mach

2шт.

492-11008

LOCK WASHER,#8

Washer, Lock, #8

2шт.

21

833602

WASHER

WASHER, space commutator end

1шт.

22

813521

VALVE SPRING

SPRING, brush holder

4шт.

23

812016

PIN

PIN W/INSULATION, brush holder

2шт.

24

812015

PIN

PIN W/INSULATION, brush holder stop

2шт.

25

1881625

FRAME

FRAME ASSY, commutator end, composed of (1) frame (NSS), (1) oiler 1880642, (1) pin 112005, (2) pin 812015, (2) pin 812016, (2) pin 817313, (2) pin 817314, (1) plug, 1865182, (1) wick 802691

1шт.

26

1880642

OILER, commutator end frame

1шт.

27

802691

HYDRAULIC PUMP

WICK, commutator end frame oiler

1шт.

28

1865182

PLUG, commutator end frame

1шт.

29

1932271

BOLT, thru

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

30

112005

SPARE PART PIN, commutator end dowel

1шт.

31

817313

PIN, brush holder hinge

2шт.

32

817314

PIN, brush holder stop

2шт.

33

810226

HOLDER

HOLDER, brush

4шт.

34

1923195

COIL, field, lower

1шт.

35

NSS

NOT SOLD SEPARAT

FRAME, not serviced separately, order cranking motor assy

1шт.

36

1868804

DRIVE

DRIVE ASSY, motor, composed of (1) gear and shaft 1855629, (1) head 1848530, (1) screw 1850810, (1) screw 1850811, (1) spring 1860639, (2) washers 805057

1шт.

37

1850811

SCREW

SCREW, motor drive spring, at head

1шт.

38

805057

WASHER, drive spring screw lock

2шт.

39

1848530

HEAD, motor drive

1шт.

40

1860639

SPRING, motor drive

1шт.

41

1849782

SLEEVE, motor drive

1шт.

42

1855629

DRIVE

GEAR, 10 teeth, motor drive w/sleeve 1849782 and spring

1шт.

43

1850810

SCREW, motor drive spring, shaft end

1шт.

44

809593

PIN

PIN, drive end dowel

1шт.
