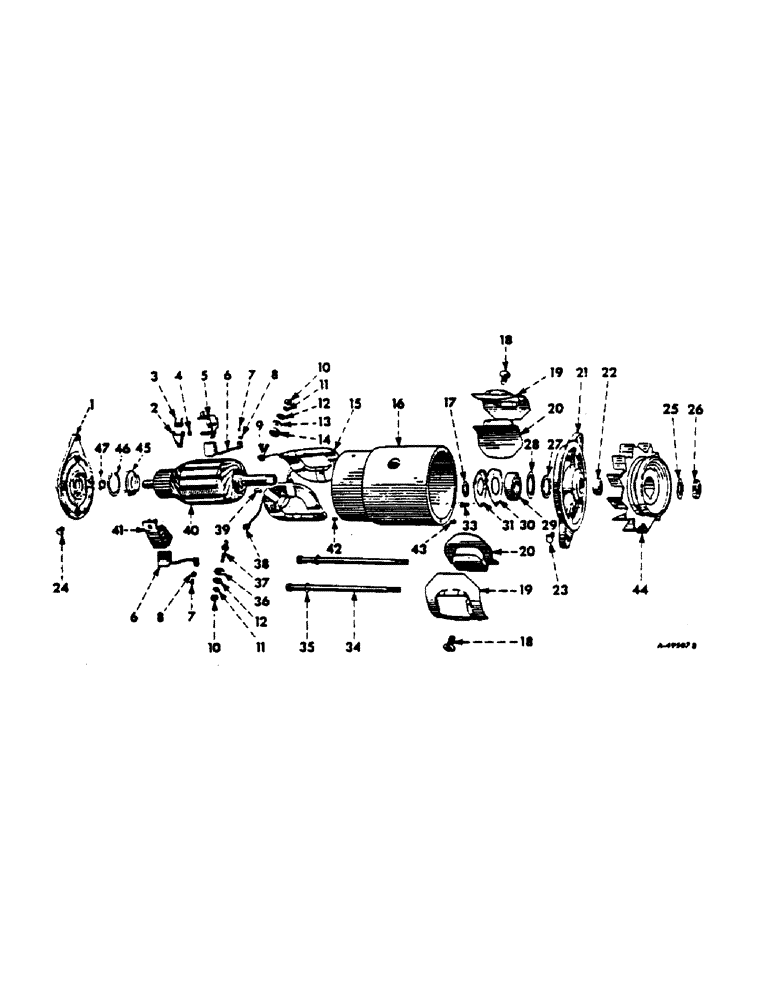

Запчасти Case IH 140 (08-06) - ELECTRICAL, GENERATOR, DELCO-REMY, FOR 140 SERIES TRACTORS (06) - ELECTRICAL

1100042

SPARE PART GENERATOR ASSY, 6 volt, unit A, order generator, 1100055

1шт.

1100052

SPARE PART GENERATOR ASSY, 6 volt, unit B, order generator, 1100055

1шт.

104449A1R

REMAN-GENERATOR

Remanufactured Generator, 6 volt 35 ampere

1шт.

104449A1C

CORE-GENERATOR

Return Number, 6 volt 35 ampere

1шт.

1100055

GENERATOR ASSY, 6 volt, unit C

1шт.

1100409

SPARE PART GENERATOR ASSY, 12 volt, unit D, order generator, 1100401

1шт.

104019A1R

REMAN-GENERATOR

Remanufactured, Generator, 12 volt 25 ampere

1шт.

104019A1C

CORE-GENERATOR

Return Number, Generator, 12 volt 25 ampere

1шт.

1100401

SPARE PART GENERATOR ASSY, 12 volt, unit E

1шт.

103814A1R

REMAN-GENERATOR

Generator

1шт.

103814A1C

CORE-GENERATOR

Return Number

1шт.

1

1951512

HOUSING

FRAME ASSY, commutator end, composed of (1) dowel 112005, (1) frame (NSS), (1) oiler 125809, (1) oil seal 1945697, (1) retainer 1953202, (1) wick 1947350

1шт.

2

1944373

NOZZLE HOLDER

ARM, brush

2шт.

3

1916324

VALVE SPRING

SPRING, brush

2шт.

4

607893R1

WASHER

WASHER, brush arm space

2шт.

5

1925378

NOZZLE HOLDER

HOLDER, ground brush

1шт.

225-14112

NUT,#12-24

NUT, 12-24 C-Z hex

1шт.

132979

SPARE PART SCREW, 12-24 x 5/8 C-Z slt-rd-hd mach

1шт.

131184

CONNECTING LINK

WASHER, no. 12 C-Z med lock

1шт.

6

1932506

BRUSH, COMMUTATOR

BRUSH BRUSH

2шт.

7

132688

SCREW,Sl Rnd Hd, #6 - 32 x 1/4"

SCREW, 6-32 x 1/4 C-Z slt-rd-hd mach

2шт.

8

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

WASHER, brush lead attaching screw lock

2шт.

9

1858749

PLUG

STUD, field terminal

1шт.

10

225-14112

NUT,#12-24

NUT, 12-24 C-Z hex

4шт.

11

1904661

LOCK WASHER

WASHER, field terminal stud lock

4шт.

12

1881409

WASHER

WASHER, terminal stud

2шт.

13

1858753

WASHER

WASHER, terminal stud insulating

1шт.

14

1885090

BUSHING

BUSHING, terminal stud insulating

1шт.

15

1921356

COIL SET, field, units A, B and C

1шт.

15

1923625

COIL ASSY.

COIL SET, field, units D and E

1шт.

16

NSS

NOT SOLD SEPARAT

FRAME, not serviced separately

1шт.

17

809945

BUSHING

WASHER, drive end space

1шт.

18

1968396

SCREW

SCREW, pole shoe

2шт.

19

1914491

INSULATOR, field coil

2шт.

20

1931258

SHOE, pole

2шт.

21

1953882

COVER ASSY

FRAME, drive end

1шт.

22

1858603

BUSHING

COLLAR, drive end space

1шт.

23

125609

OILER

OILER, drive end bearing

1шт.

823551

WICK, drive end oiler

1шт.

24

NLS

NO LONGER SERVICED

OILER, commutator end

1шт.

25

1888439

WASHER

WASHER, drive end shaft nut lock, unit A

1шт.

25

1941978

WASHER

WASHER, drive end shaft nut spring, units B, C, D and E

1шт.

26

1915172

NUT

NUT, drive end shaft

1шт.

27

809961

FELT

WASHER, drive end felt

1шт.

28

819104

WASHER

RETAINER, drive end felt washer

1шт.

29

907503

BEARING

BEARING, drive end ball

1шт.

30

1912008

FELT

GASKET, ball bearing retainer plate

1шт.

31

1911263

LARGE PLATE

PLATE, LARGE PLATE, ball bearing retainer

1шт.

32

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.

33

1914580

SCREW

SCREW, bearing retainer plate

3шт.

34

1908680

SET OF MAIN BRGS -

BOLT, thru

2шт.

35

120638

LOCK WASHER

WASHER, 5/16 C-Z heavy lock

2шт.

36

1921362

BUSHING

BUSHING, armature terminal stud insulating

1шт.

37

1923284

STUD

STUD, armature terminal

1шт.

38

200006

SPARE PART

CLIP, Serial Range: terminal-brush

1шт.

39

124545

WOODRUFF KEY,#5, 1/8" x 5/8", HT

WOODRUFF KEY, #5, 1/8" x 5/8", HT

1шт.

40

1921351

SPARE PART ARMATURE, unit A, B and C

1шт.

40

1928952

ARMATURE

ARMATURE, units D and E

1шт.

1927448

CUP, commutator end felt retainer, unit A

1шт.

1927447

WASHER, commutator end felt, unit A

1шт.

41

1925379

NOZZLE HOLDER

HOLDER, insulated brush

1шт.

225-14112

NUT,#12-24

NUT, 12-24/ C-Z hex

1шт.

132979

SPARE PART SCREW, 12-24 x 5/8 C-z slt-rd-hd mach

1шт.

131184

CONNECTING LINK

WASHER, no. 12 C-Z med lock

1шт.

42

112005

SPARE PART PIN, commutator end frame dowel

1шт.

43

809593

PIN

PIN, drive end frame dowel

1шт.

44

NSS

NOT SOLD SEPARAT

FAN AND PULLEY, generator, order fan, 1944437 and pulley, 1949358

1шт.

45

1953202

RETAINER, commutator end

1шт.

46

1947350

WICK

WICK, commutator end oil

1шт.

47

1945697

GUARD ASSY.

SEAL, commutator end oil

1шт.
