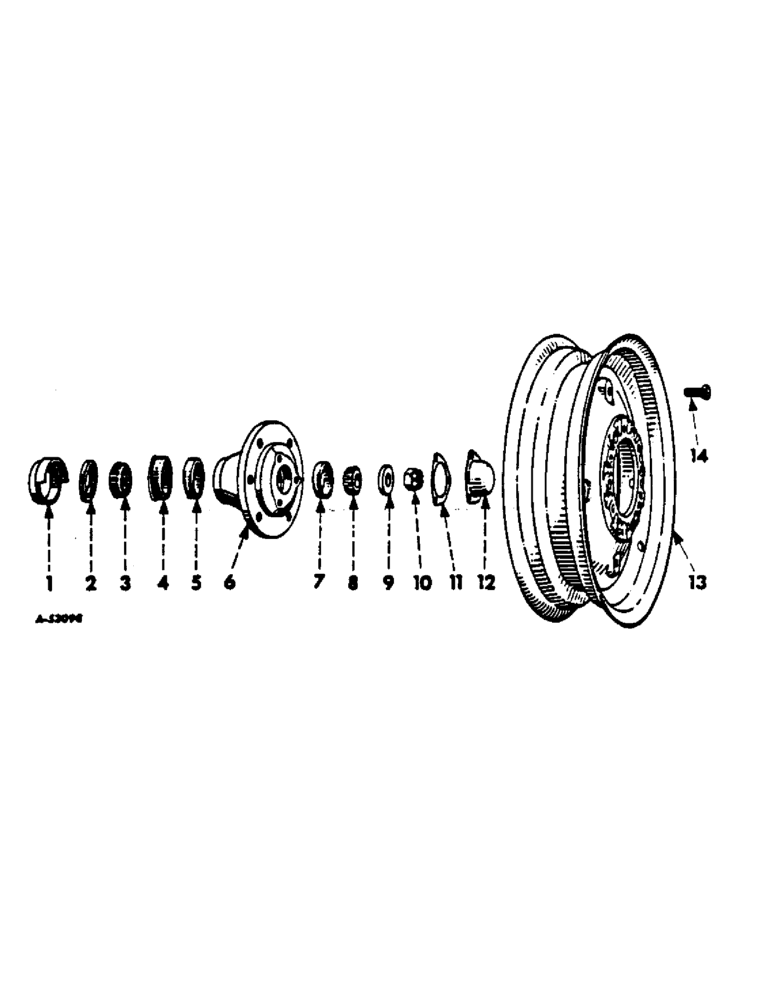

Запчасти Case IH 140 (15-4) - WHEELS AND TRACTION, FRONT WHEELS AND RIMS, FOR 140 SERIES TRACTORS Wheels & Traction

1

43462D

DEFLECTOR

SHIELD, front wheel dust

2шт.

2

372440R91

OIL SEAL

OIL SEAL, front wheel

2шт.

3

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, front wheel inner cone

2шт.

4

49117D

CUP ASSY.

RING, front wheel oil seal wear

2шт.

5

651817R1

BEARING CUP

BEARING, front wheel inner cup

2шт.

5

651817R1GV

BEARING CUP

Value, Bearing Cup

2шт.

6

370289R11

HUB

ASSY, front wheel, composed of (1) bearing 651814R1, (1) bearing 651817R1, (1) hub 370289R1 (NSS), (1) ring 49117D

2шт.

7

651814R1

BEARING CUP

BEARING, front wheel outer cup

2шт.

8

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING ASSY, front wheel outer cone

2шт.

8

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

9

369936R1

WASHER

front wheel outer brg retainer

2шт.

10

102649

SLOTTED NUT,5/8"-18, G5

NUT, , Front wheel outer bearing retainer 5/8"-18, G5

2шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), , Front wheel hub cap 1/8" x 1 1/4"

2шт.

11

49116D

GASKET,0.79mm Thk

front wheel hub cap

2шт.

12

49115D

CYLINDER END CAP

CAP, front wheel hub

2шт.

179814

SPACER

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

13

370603R91

WHEEL ASSY, disc type front, 4.00E-16DC rim for 5.50 x 16 or 3.00D-15DC rim for 5.00 x 15 tire

2шт.

13

370604R91

WHEEL ASSY.

WHEEL ASSY, disc type front, 3.00D-15DC rim for 5.00 x 15 tire

2шт.

14

51485D

BOLT,9/16" - 18 x 1 7/32"

front wheel mounting

12шт.

375128R91

KIT

PACKAGE, front wheel bearing overhaul, consists of (1) bearing 651814R1, (1) bearing 651815R91, (1) bearing 651817R1, (1) bearing 651818R91, (1) gasket 49116D, (1) oil seal 372440R91, (1) ring 49117D

2шт.
