Запчасти Case IH 140 (12-10) - POWER, GOVERNOR AND CHOKE CONTROLS, FOR TRACTORS NOT EQUIPPED WITH FOOT ACCELERATOR Power

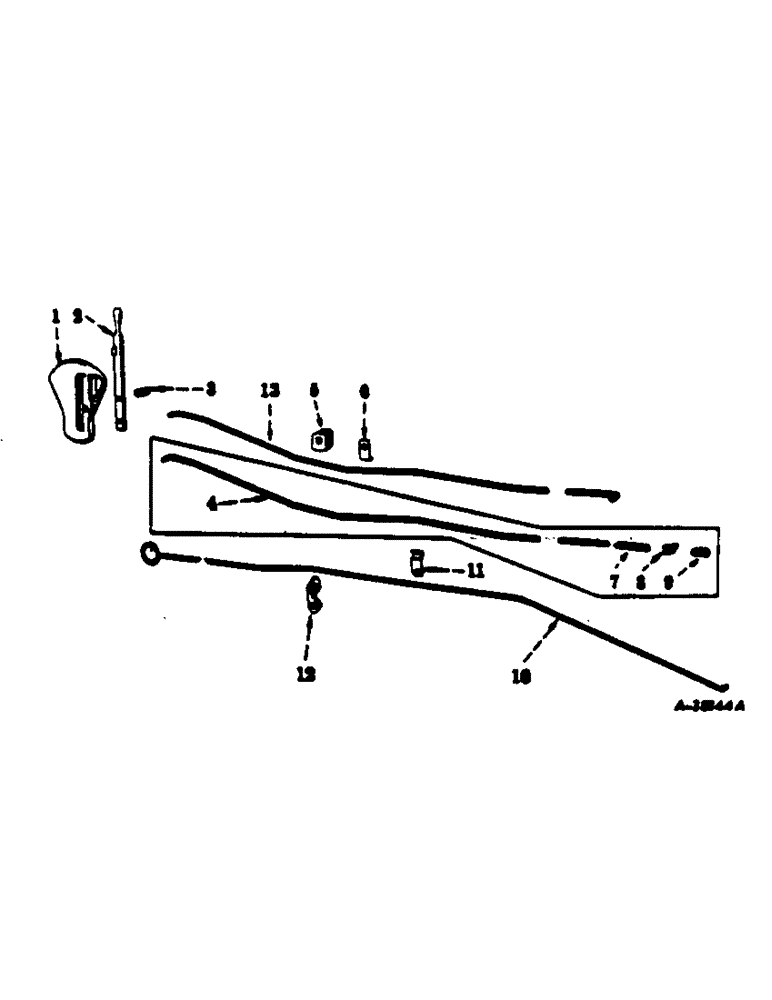

Схема запчастей Case IH 140 - (12-10) - POWER, GOVERNOR AND CHOKE CONTROLS, FOR TRACTORS NOT EQUIPPED WITH FOOT ACCELERATOR Power
4
7
1
11

Артикул

Название

Примечание

Количество

1

350610R11

SECTOR

ASSY, governor control

1шт.

425-115

NUT,5/16"-24, G5

5/16-24 hex

1шт.

108630

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

1шт.

181346

BOLT

SCREW, 5/16-24 x 1-7/8 hex-hd cap, not used on tractors equipped with remote control

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x 16 ga

1шт.

2

350612R2

LEVER

governor control

1шт.

3

43650D

SPRING

governor control lever

1шт.

4

350613R1

ROD, governor control, order 350613R2, Ref. no. 13

1шт.

137130

PIN

1/16 x 7/16 cot.

3шт.

Q103

WASHER

7/64 x 5/8 x 16 ga

2шт.

5

350614R1

CLIP, governor control rod, for tractors w/o touch-controls

1шт.

103026

NUT,3/8"-24, G5

1шт.

181364

BOLT,Hex, 3/8" - 24 x 1", Gr 5

SCREW, 3/8-24 x 1 hex-hd cap

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

6

350727R1

CLIP, governor control rod, on fuel tank rear mounting screw, tractors equipped with touch-control

1шт.

7

53393D

SPRING

governor control rod rear equalizer, used only with rod, 350613R1

1шт.

8

51299DA

SWIVEL, governor control rod rear, used only with rod, 350613R1

1шт.

137130

PIN

1/16 x 7/16 cot.

1шт.

Q103

WASHER

7/64 x 5/8 x 16 ga

1шт.

9

51300D

VALVE SPRING

SPRING, governor control rod front equalizer, used only with rod, 350613R1

1шт.

10

350744R1

ROD, choke, for 100 series tractors

1шт.

10

366732R1

ROD, choke, for 130 and 140 series tractors

1шт.

137130

PIN

1/16 x 7/16 cot.

1шт.

11

350633R3

CLIP

choke rod front, for tractors equipped with touch-control

1шт.

179792

BOLT,Hex, 1/4" - 20 x 9/16"

SCREW, 1/4-20 x 9/16 hex-hd cap

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

12

350632R1

CLIP, choke rod front, for tractors w/o touch-control

1шт.

25-114

NUT,1/4"-28, G5

1/4-28 hex

1шт.

181311

BOLT,Hex, 1/4" - 28 x 5/8", Gr 5

SCREW, 1/4-28 x 5/8 hex-hd cap

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

13

350613R2

ROD, governor control, will work for 51299DA, 51300D, 53393D and 350613R1

1шт.

137130

PIN

1/16 x 7/16 cot.

1шт.

Q103

WASHER

7/64 x 5/8 x 16 ga

1шт.

Выбрано товаров: 34
