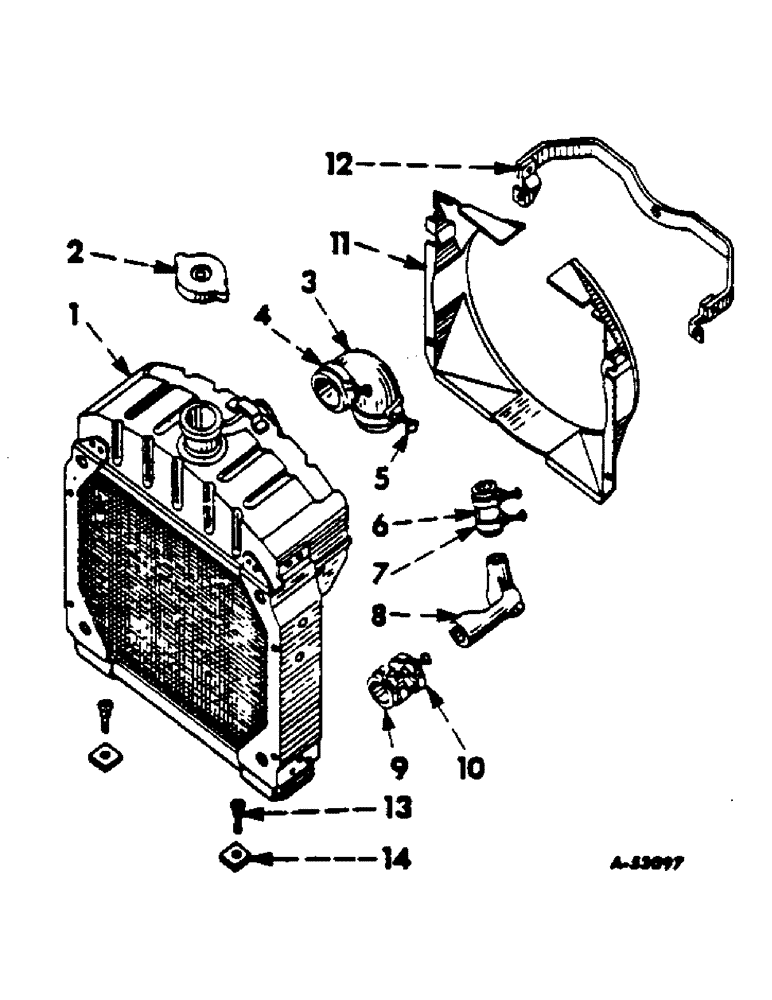

Запчасти Case IH 140 (06-3) - COOLING, RADIATOR AND CONNECTIONS, FOR 140 SERIES TRACTORS Cooling

1

369400R94

RADIATOR

also order cap 393229R91

1шт.

2

361705R91

COVER

CAP, radiator pressure, serial no. 13967 and below

1шт.

2

393229R91

CAP

radiator pressure, serial no. 13698 and above

1шт.

3

369397R1

HOSE,2.38" ID, 2.50" ID x 4.00", SAE 20R4 Class R Grade -1

ELBOW, radiator inlet

1шт.

3

369397R1GV

RADIATOR HOSE

Value, Elbow, Radiator Inlet

1шт.

4

996261R91

COLLAR CLAMP

CLAMP, radiator inlet hose upper, replaces 39226H

1шт.

5

39233H

CLAMP

radiator inlet hose lower

1шт.

6

387721R1

HOSE,1.38" ID x 4.00", SAE 20R1

Water Pump Inlet 1.38" ID x 4.00", SAE 20R1

1шт.

7

995224R1

CLAMP

water pump inlet hose

2шт.

8

369396R1

ELBOW

water outlet

1шт.

445686

PLUG

3/8-18 auto. sq-hd pipe

1шт.

9

20075DB

RADIATOR HOSE,50.80 mm ID x 57.20 mm, SAE 20R4 Class R

Water Outlet Elbow (Replaces 20075DG) 50.80 mm ID x 57.20 mm, SAE 20R4 Class R

1шт.

10

29970D

CLAMP

water outlet elbow hose

2шт.

11

369399R1

SHROUD

HOUSING, fan

1шт.

9635082

NUT,5/16" - 18, Gr 5

4шт.

186271

SCREW,Hex, 5/16" - 18 x 3 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3 3/4", G5

2шт.

186272

BOLT,Hex, 5/16" - 18 x 4", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

12

369513R11

BRACE

radiator mounting

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

13

352632R1

BOLT,Sq Nk, 7/16" - 20 x 1 1/8"

radiator mounting

2шт.

18601R1

NUT,7/16"-20, GC

7/16-20 hex, stop

2шт.

14

47240D

PAD

radiator

2шт.
