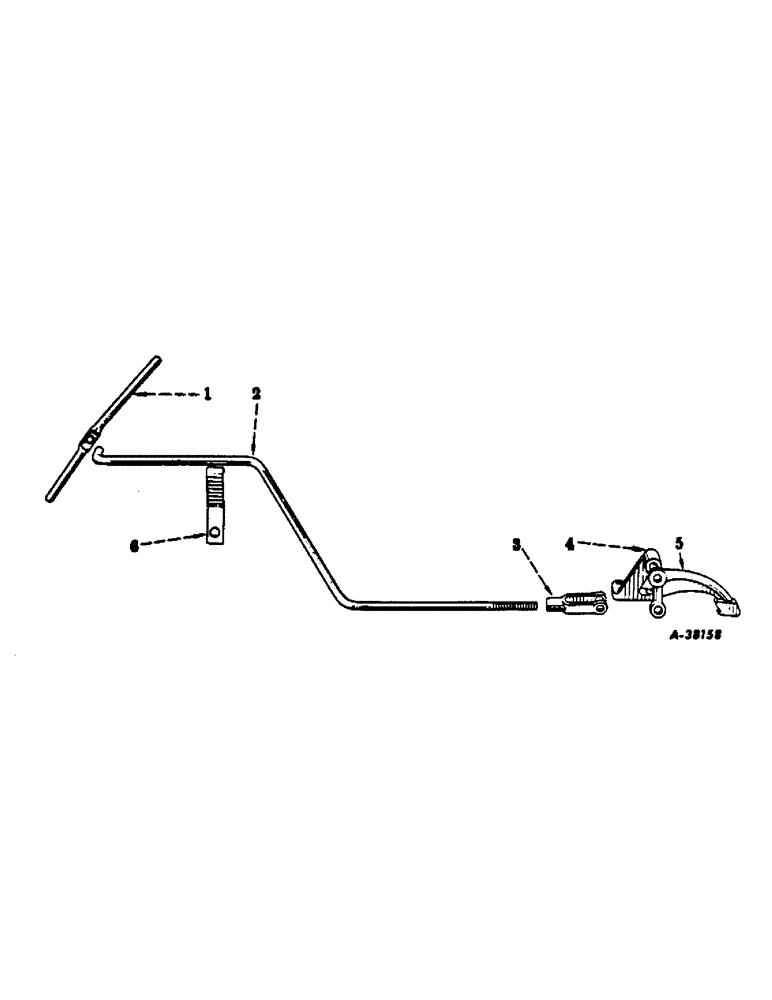

Запчасти Case IH 140 (10-24) - HYDRAULICS, HYDRA-CREEPER ATTACHMENT, CLUTCH INTERLOCK AND PTO SHIFTER LEVER (07) - HYDRAULICS

1

NSS

NOT SOLD SEPARAT

LEVER, PTO and clutch interlock shifter, discontinued for service

1шт.

17141R1

LOCK PIN,5/32" x 1", Slotted

Pin, 5/32" x 1", Slotted

1шт.

2

363758R1

ROD, clutch interlock

1шт.

103026

NUT,3/8"-24, G5

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

2шт.

95-11041

WASHER,3/8"

(13/32" ID x 13/16" OD x no. 16 ga) 3/8"

2шт.

3

104038

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS, 3/8 adjustable rod end

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.

114785

PIN, 3/8 x 1-1/16 hardened rod end

1шт.

4

363760R11

SUPPORT ASSY, clutch interlock

1шт.

425-115

NUT,5/16"-24, G5

5/16-24 hex

1шт.

181338

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5

1шт.

181342

BOLT,Hex, 5/16" - 24 x 1 3/8", Gr 5

SCREW, 5/16 -24 x 1-3/8 hex-hd cap

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

5

363759R1

ARM, clutch pedal interlock

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.

615029R1

WASHER

3/8 x 3/4 x .051

1шт.

6

363762R1

CLAMP, clutch interlock, on seat LH support attaching screw

1шт.
