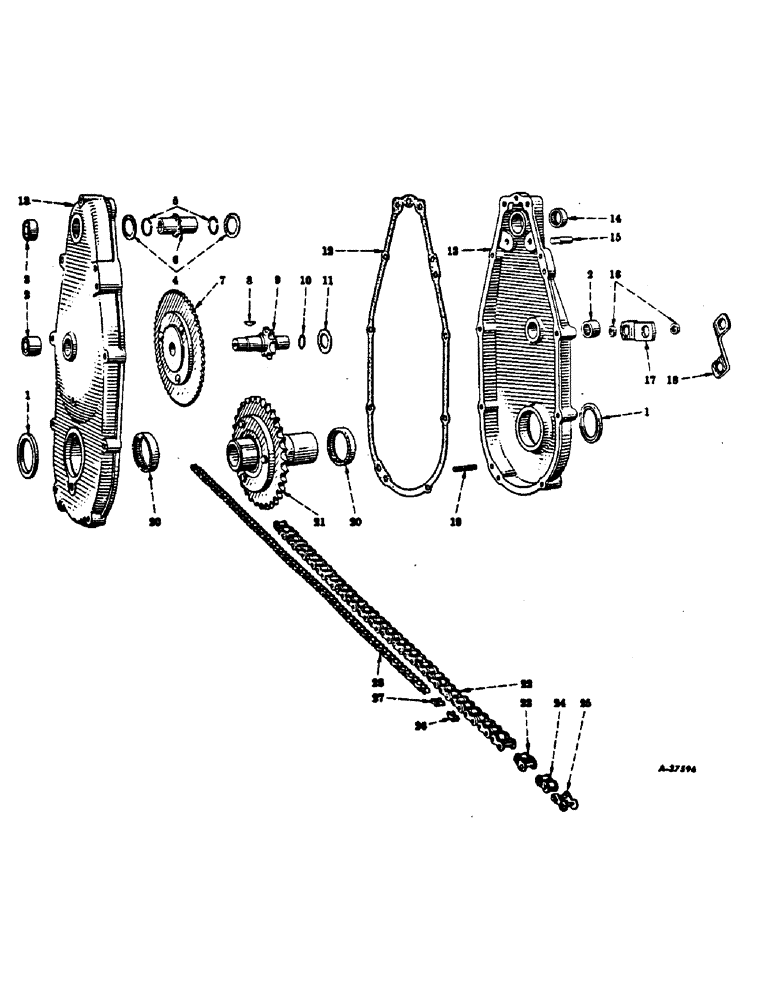

Запчасти Case IH 140 (10-22) - HYDRAULICS, HYDRA-CREEPER ATTACHMENT, TRANSMISSION (07) - HYDRAULICS

1

362255R91

SEAL, driven sprocket oil, discontinued for service after stock is depleted

2шт.

2

362252R91

BEARING, idler pinion needle

2шт.

3

362253R91

BEARING, drive sprocket needle

1шт.

4

NSS

NOT SOLD SEPARAT

WASHER, drive sprocket retainer, discontinued for service

2шт.

5

362260R1

RING, SNAP

RING, drive sprocket retainer

2шт.

6

NSS

NOT SOLD SEPARAT

SPROCKET, drive, 10 teeth, discontinued for service

1шт.

7

NSS

NOT SOLD SEPARAT

SPROCKET ASSY, idler, discontinued for service

1шт.

8

124546

WOODRUFF KEY,#6, 5/32" x 5/8", HT

1шт.

9

NSS

NOT SOLD SEPARAT

PINION, idler, 8 teeth, discontinued for service

1шт.

10

NSS

NOT SOLD SEPARAT

RING, idler pinion retainer, discontinued for service

1шт.

11

NSS

NOT SOLD SEPARAT

WASHER, idler pinion retainer, discontinued for service

1шт.

12

NSS

NOT SOLD SEPARAT

GASKET, housing, discontinued for service

1шт.

13

NSS

NOT SOLD SEPARAT

HOUSING AND COVER ASSY, discontinued for service

1шт.

20956R1

PLUG, 1/8-27 C-Z auto. sq-hd pipe

1шт.

179821

BOLT,Hex, 5/16" - 18 x 1 3/8", Gr 5

4шт.

179823

BOLT,Hex, 5/16" - 18 x 1 5/8", Gr 5

2шт.

179825

BOLT,Hex, 5/16" - 18 x 1 7/8", Gr 5

3шт.

112723

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

9шт.

14

10026R

NEEDLE BEARING,0.875" ID x 1.1245" OD x 0.5"

BEARING, drive sprocket needle

1шт.

15

NSS

NOT SOLD SEPARAT

STUD, hydraulic motor mounting, discontinued for service

4шт.

16

NSS

NOT SOLD SEPARAT

SPACER, hydra-creeper transmission support bracket, discontinued for service

2шт.

17

NSS

NOT SOLD SEPARAT

BRACKET, hydra-creeper transmission support, for tractors equipped with PTO and belt pulley, discontinued for service

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

1шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x 16 ga

1шт.

95-11041

WASHER,3/8"

(13/32" ID x 13/16" OD x no. 16 ga) 3/8"

1шт.

18

NSS

NOT SOLD SEPARAT

BRACKET, hydra-creeper transmission support, for tractors equipped with PTO, discontinued for service

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

1шт.

19

141223

DOWEL,5/16" x 1"

PIN, 5/16 x 1 dowel

2шт.

20

362251R91

BEARING, NEEDLE,Needle, 47.62mm ID x 57.15mm OD x 12.57mm W

BEARING, drive sprocket needle

2шт.

21

NSS

NOT SOLD SEPARAT

SPROCKET ASSY, driven, 32 teeth, discontinued for service

1шт.

18410R1

PIN, 1/8 x 1-3/4 roll

1шт.

22

NSS

NOT SOLD SEPARAT

CHAIN, driven sprocket, used 41 links of 5/8 pitch roller chain from A 10 ft. roll marked, 1791D and one offset link, 1315D

1шт.

23

1315D

LINK

5/8 pitch offset

1шт.

24

1309D

LINK

5/8 pitch roller

1шт.

25

1310D

LINK

ASSY, 5/8 pitch connecting

1шт.

26

1764D

LINK

3/8 pitch roller

1шт.

27

1765D

LINK

ASSY, 3/8 pitch connecting

1шт.

28

NSS

NOT SOLD SEPARAT

CHAIN, drive sprocket, use 70 links of 3/8 pitch roller chain from a 10 ft. roll marked, 1789D and one connecting link, 1765D

1шт.
