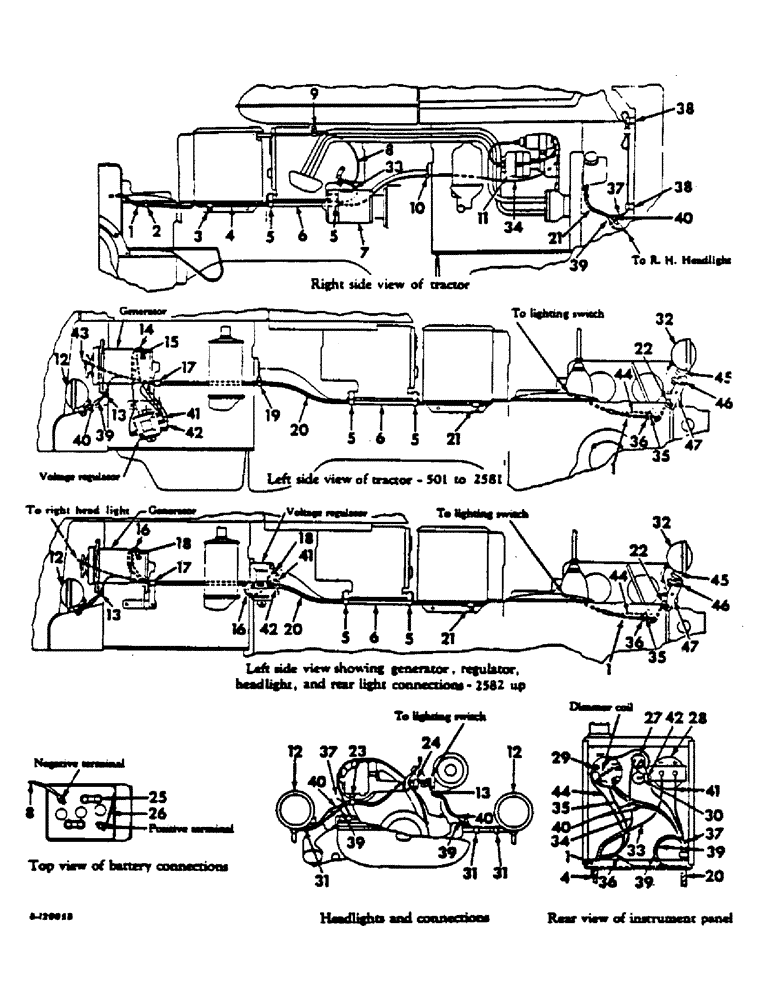

Запчасти Case IH 130 (08-24) - ELECTRICAL, STARTING & LIGHTING, BATTERY IGNITION, 6V, FOR 140 SERIES TRACTORS W/ S/N 26800 & BELOW (06) - ELECTRICAL

1

370817R91

HARNESS ASSY, lighting switch to rear light

1шт.

2

363477R1

CLIP, rear light cable, on starting crank mounting bracket bolt

1шт.

3

370821R1

CLIP,ELECTRICAL

CLIP, cable, on battery box RH side mounting bolt

1шт.

4

358109R92

HARNESS

ASSY, ignition and lighting

1шт.

5

350741R1

CLIP, harness, on touch-control cylinder block mounting bolts

4шт.

179879

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

6

69576C1

CONDUIT, convoluted, replaces 363479R1

2шт.

7

1108096

MOTOR ASSY, cranking, for components see list of parts under details of cranking motor

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

8

367139R91

CABLE

W/BOLT, 356062R91, battery to cranking motor

1шт.

356062R91

BOLT

ASSY, terminal

1шт.

9

362123R1

CLIP

battery cable, on fuel tank rear mounting screw

1шт.

10

370819R1

CLIP, ignition switch to coil cable, on clutch housing bolt

1шт.

11

NSS

NOT SOLD SEPARAT

BATTERY IGNITION UNIT, refer to C-123 engine section B in eng-1 parts catalog

1шт.

12

NSS

NOT SOLD SEPARAT

LIGHT ASSY, head, refer to head lights, rear lights and supports

2шт.

13

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, head light cable, on generator front mounting bolt

1шт.

14

358112R92

CABLE

generator, A terminal to regulator, gen terminal, brown, serial no. 2581 and below

1шт.

15

370818R91

CABLE, generator, F terminal to regulator, F terminal, black, serial no. 2581 and below

1шт.

16

NSS

NOT SOLD SEPARAT

CABLE, generator A terminal to regulator, gen terminal, light blue, order harness, Ref. no. 20, serial no. 2582 and above

1шт.

17

362126R1

CLIP

cable harness, on generator bracket rear bolt

1шт.

18

NSS

NOT SOLD SEPARAT

CABLE, generator, F terminal to regulator, F terminal, yellow, order harness, Ref. no. 20, serial no. 2582 and above

1шт.

19

370820R1

CLIP

cable harness, on LH side clutch housing bolt

1шт.

20

370816R91

HARNESS ASSY, cable, serial no. 2581 and below

1шт.

20

373106R91

HARNESS ASSY, cable, serial no. 2582 and above

1шт.

21

370821R1

CLIP,ELECTRICAL

CLIP, cable harness, on LH side battery box bolt

1шт.

22

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, on lower rear light bracket bolt

1шт.

23

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, head light cable, on crankcase front cover bolt

1шт.

24

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, head light cable, on generator brace bolt

1шт.

25

355196R93

BATTERY, prestolite 1110X, 6 volt

1шт.

26

350736R91

CABLE

W/BOLT, 356062R91, Serial Range: battery-groung

1шт.

356062R91

BOLT

ASSY, terminal

1шт.

27

62801DC

SWITCH

INDICATOR, charge, replaces 360053R92

1шт.

28

378424R91

GAUGE

INDICATOR ASSY, charge, replaces 360053R92

1шт.

29

371464R91

SWITCH

ASSY, lighting

1шт.

141706

WASHER

11/16 int-tooth lock

1шт.

30

354232R91

BOX

HOUSING W/KNOB, 356445R91, fuse

1шт.

432644

FUSE,20 Amp, Type SFE

cartridge type SFE 20

1шт.

31

363484R1

CLAMP, head light cable, on light post

3шт.

110633

NUT,#10-24

3шт.

110501

SCREW

10-24 x 5/8 slt-rd-hd mach

3шт.

32

NSS

NOT SOLD SEPARAT

LIGHT ASSY, rear, refer to head lights, rear lights and supports

1шт.

33

NSS

NOT SOLD SEPARAT

CABLE, charge indicator to cranking motor, brown, order harness, 35819R92

1шт.

34

NSS

NOT SOLD SEPARAT

CABLE, ignition switch to coil, black, order harness, 358109R92

1шт.

35

NSS

NOT SOLD SEPARAT

CABLE, lighting switch to rear light, red, order harnes, 370817R91

1шт.

36

NSS

NOT SOLD SEPARAT

CABLE, rear light to ground, pink, order harness, 370817R91

1шт.

37

372629R91

CABLE, horn to horn switch, black, serial no. 5878 and below

1шт.

37

NSS

NOT SOLD SEPARAT

CABLE, horn to connector, dark green, order harness, Ref. no. 20, serial no. 5879 and above

1шт.

38

365584R1

CLIP

horn cable, on LH side of fan housing, serial no. 5879 and above

2шт.

39

NSS

NOT SOLD SEPARAT

CABLE, head light to ground, pink, order harness, Ref. no. 20

1шт.

40

NSS

NOT SOLD SEPARAT

CABLE, lighting switch to head light, black, order harness, Ref. no. 20

1шт.

41

NSS

NOT SOLD SEPARAT

CABLE, regulator, bat terminal to charge indicator, gray, order harness, Ref. no. 20

1шт.

42

NSS

NOT SOLD SEPARAT

CABLE, ignition switch to regulator, L terminal, light green, order harness, Ref. no. 20

1шт.

43

NSS

NOT SOLD SEPARAT

CABLE, head light, black, order harness, Ref. no. 20

1шт.

44

NSS

NOT SOLD SEPARAT

CABLE, taped back at one end, black

1шт.

45

365503R1

SPACER

rear light

1шт.

46

350920R1

CLAMP

rear light

1шт.

47

512699R1

BRACKET, rear light

1шт.

114502

JAM NUT,Jam, 5/16"-18, G5

2шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 C-Z hex-hd cap, tractors w/deluxe cushion seat

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.
