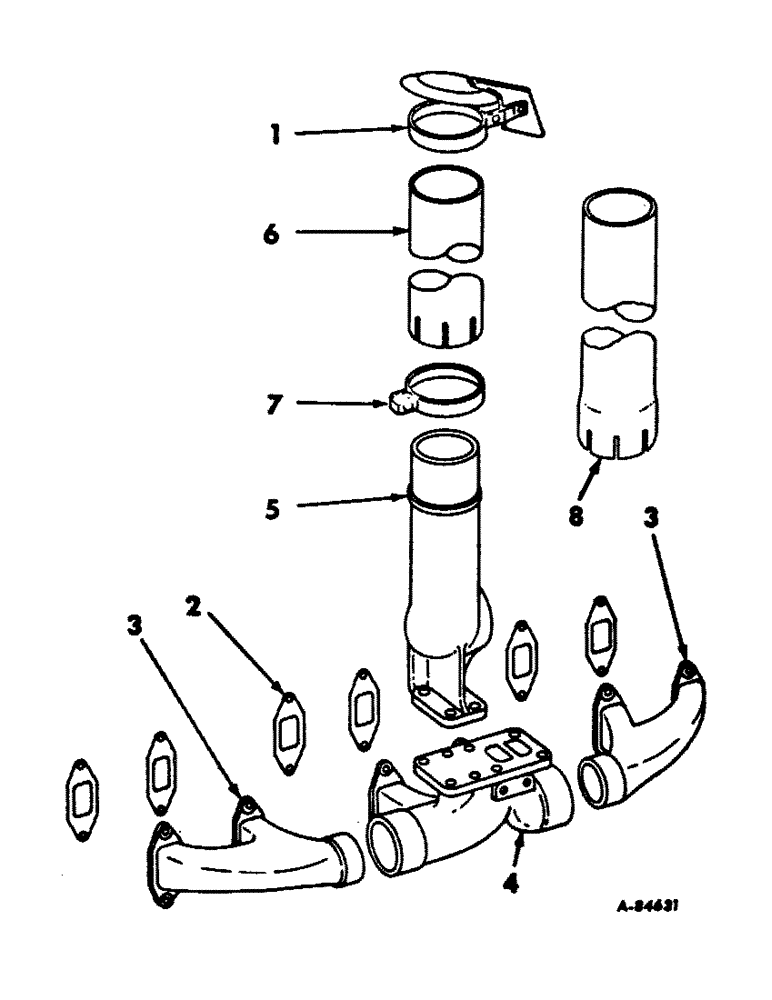

Запчасти Case IH 1206 (D-19) - DIESEL ENGINES, EXHAUST SYSTEM (01) - ENGINE

1

402315R1

CAP

ASSY, exhaust, replaces 321576R91

1шт.

2

326523R1

MANIFOLD GASKET

GASKET, exhaust manifold

6шт.

3

607251C1

MANIFOLD

front & rear exhaust

2шт.

250451R1

NUT

exhaust manifold stud

8шт.

4

607252C11

NO LONGER SERVICED

MANIFOLD W/TWO PLUGS, 117244, center exhaust

1шт.

250451R1

NUT

exhaust manifold stud

4шт.

444577

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG, 1/4-18 auto sq-hd pipe

2шт.

5

607282C1

ELBOW

turbo exhaust outlet

1шт.

6

391930R1

PIPE

exhaust extension

1шт.

7

402314R1

CLAMP ASSY, exhaust extension pipe, replaces 395811R1

1шт.

8

402986R1

PIPE, EXHAUST SYSTEM

EXTENSION, exhaust pipe, replaces 392982R1, tractors with cab

1шт.
