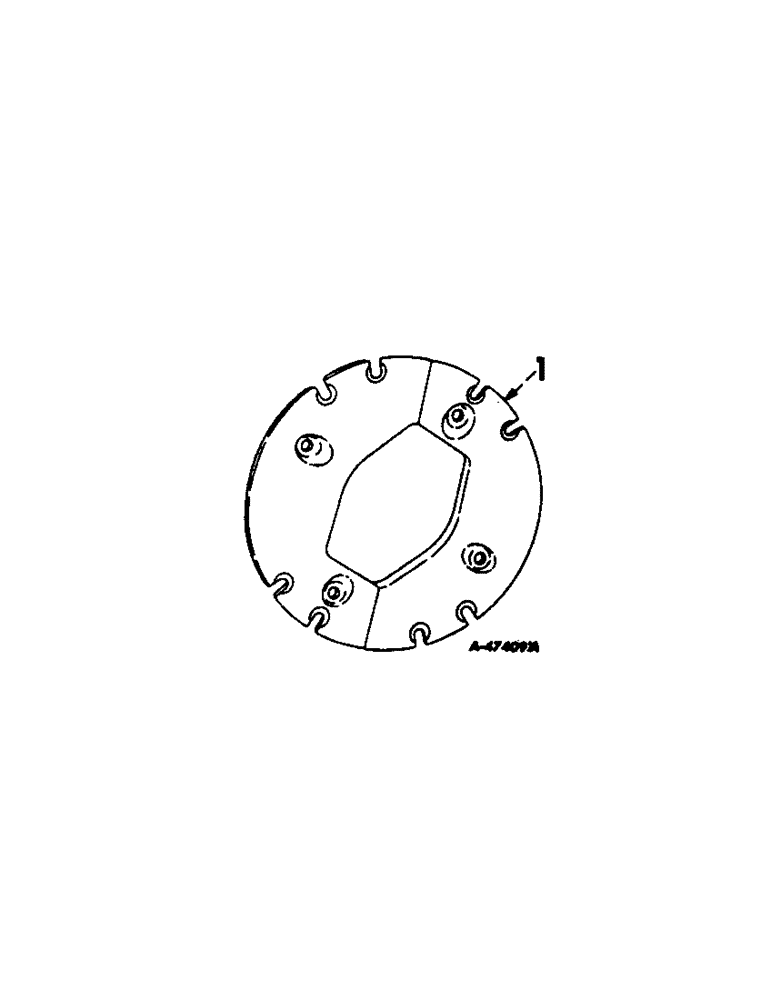

Запчасти Case IH 1206 (L-08[1]) - WHEELS AND WHEEL WEIGHTS, REAR WHEEL WEIGHTS SPLIT TYPE TRACTORS WITH 38 INCH REAR WHEELS Wheels & Wheel Weights

1

400078R1

WHEEL WEIGHT

WEIGHT, rear wheel, half, approx 75 lbs, first position, will work for 366109R2

4шт.

401918R1

BOLT (SPREADER),3/4" - 10 x 6 1/2"

BOLT, rear wheel weight

8шт.

280954

NUT,3/4"-10, G5

8шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4-10 C-Z hex. jam

8шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

5шт.

2

400078R1

WHEEL WEIGHT

WEIGHT, rear wheel, half, approx 75 lbs, second or third position, will work for 366109R2

4шт.

401919R1

BOLT,3/4" - 10 x 9 1/2"

rear wheel weight

8шт.

280954

NUT,3/4"-10, G5

8шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4-10 C-Z hex. jam

8шт.

366112R1

WASHER

11/32 x 1-1/4 x 11 ga

16шт.
