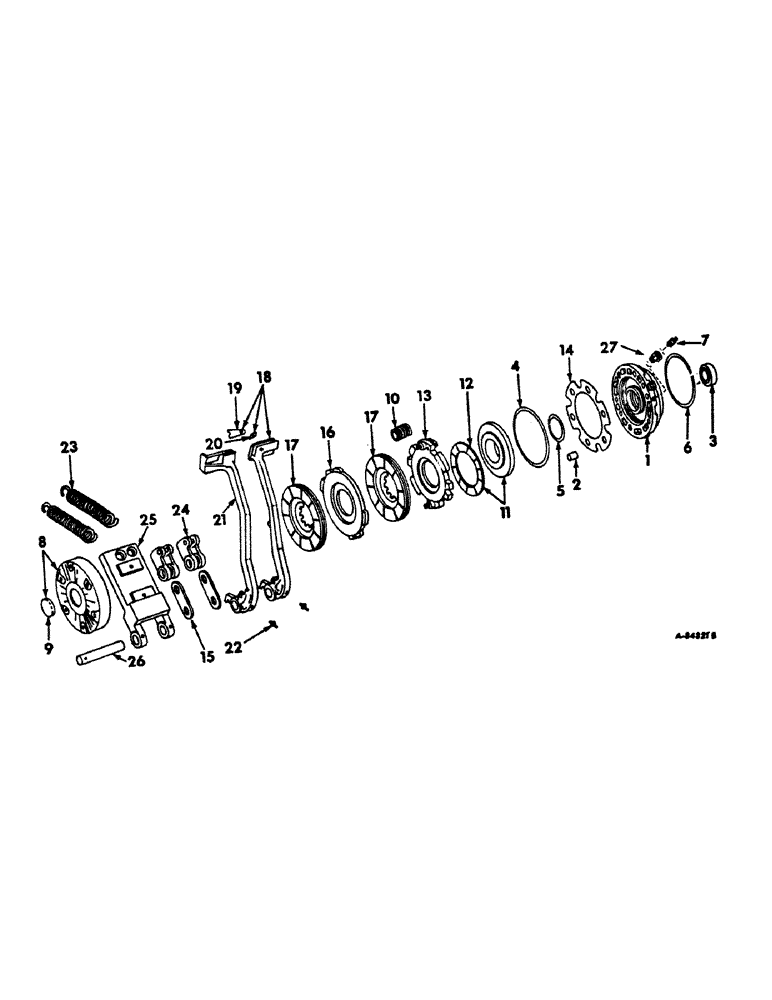

Запчасти Case IH 1206 (H-12) - CONTROLS, BRAKES Controls

1

391815R1

HOUSING, brake piston, order housing, 397340R1 & connector 397388R1

2шт.

1

397340R1

HOUSING

brake piston

2шт.

2

403285R2

DOWEL

PIN, 5-8 x 3-1/4 dowel

4шт.

3

384156R91

SEAL

brake piston housing oil

2шт.

4

384365R1

RING

O-RING, 8-1/4 x 8-1/2 x 1/8, piston outer sealing

2шт.

5

354836R1

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

3-1/4 x 3-1/2 x 1/8, piston inner sealing

2шт.

6

285453R1

O-RING,0.139" Thk x 6.734" ID, -261, Cl 5, 75 Duro

6-3/4 x 7 x 1/8

2шт.

7

82301R1

BLEEDER,3/8" - 24 x 117mm

bleed

2шт.

8

392780R11

HOUSING

ASSY, brake

2шт.

20819

BALL JOINT HEAD

SCREW W/NYLON PELLET, 5/8-11 x 4-3/4 hex-hd cap

8шт.

271569

SOCKET,Hex, 5/8" - 11 x 3 3/4", Gr 5

SCREW, 5/8-11 x 3-3/4 hex-hd cap

4шт.

20172R1

PIN, 1/2 x 1-5/8 slotted spring

8шт.

9

384339R1

PLUG,Cup, 2 3/16"

brake housing cup

2шт.

10

384367R2

SPRING

brake piston return

1шт.

11

384368R12

PISTON ASSY.

PISTON ASSY, brake

2шт.

This insulator pad needs to be assembled w/ the groove away from the piston. Use 3M Co. cement #EC-1300 or 345-23 (pint) or 345-22 (5 oz. tube) covering a minimum of 75% of the surface involved to insure a good bond. Not necessary to bake.

1шт.

12

384161R1

FRICTION WASHER

INSULATOR, brake piston

2шт.

This insulator pad needs to be assembled w/ the groove away from the piston. Use 3M Co. cement #EC-1300 or 345-23 (pint) or 345-22 (5 oz. tube) covering a minimum of 75% of the surface involved to insure a good bond. Not necessary to bake.

1шт.

13

392776R21

PLATE ASSY.

PLATE ASSY, primary brake, composed of (1) plate 392776R2 (NSS), (2) screw 384163R2 (NSS), (2) screw 228320, (2) spring 384164R4 (NSS)

2шт.

228320

SCREW W/EXT, tooth lock washer, 8-32 x 1/4 C-Z slt, rd-hd mach

4шт.

384163R2

SCREW,Knurled, 3/8" - 12, LH Thd x 1.38", SST

self, adj screwlock

1шт.

14

391816R1

SHIM

brake piston housing .0358

1шт.

14

391817R1

SHIM

brake piston housing .0120

1шт.

14

391818R1

SHIM

brake piston housing .007

1шт.

14

391819R1

SHIM

brake piston housing .004/.005

1шт.

14

391820R1

SHIM

brake piston housing .0025/.0035

1шт.

15

384082R1

LINK

brake operating

2шт.

108630

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

4шт.

98724H

AXLE PIN,1/2" x 1.688"

PIN, 1/2 x 1-11/16 rod end

4шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

17/32 x 1-1/16 x .095

4шт.

16

392777R2

PLATE ASSY.

PLATE, intermediate brake

2шт.

17

394463R91

DISC

ASSY, heavy duty brake friction

4шт.

18

380014R11

PEDAL ASSY, LH brake

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

223095

SCREW, 3/8-16 x 1-1/4 hex, soc, hd half dog, pt set

1шт.

19

43751DB

LATCH, PEDALS

PLATE, brake pedal lock

1шт.

20

51293D

SPRING

brake pedal lock tension

1шт.

104087

RIVET,But Hd, 1/4" x 1 1/4"

1/4 x 1-1/4 rd-hd

1шт.

21

380015R1

PEDAL, RH brake

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

223095

SCREW, 3/8-16 x 1-1/4 hex-soc-hd half dog-pt set

1шт.

22

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 drive, type str lub

2шт.

23

384315R1

VALVE SPRING

SPRING, brake pedal return

2шт.

24

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

25

384084R1

ADAPTER, brake shaft & hydraulic valve mounting

1шт.

432-1240

COTTER PIN,3/16" x 2 1/2"

Pin, Split (Cotter), 3/16" x 2 1/2"

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

3шт.

26

384085R1

SHAFT

brake pedal

1шт.

27

397338R1

CONNECTOR, ELEC

CONNECTOR, bleeder valve

1шт.

406726R91

PACKAGE, power brake piston housing o-ring and seal service, consists of (2) o-ring 285453R1, (2) o-ring 354836R1, (2) o-ring 384365R1, (2) oil seal 384156R91, or (2) oil seal 393546R91

1шт.
