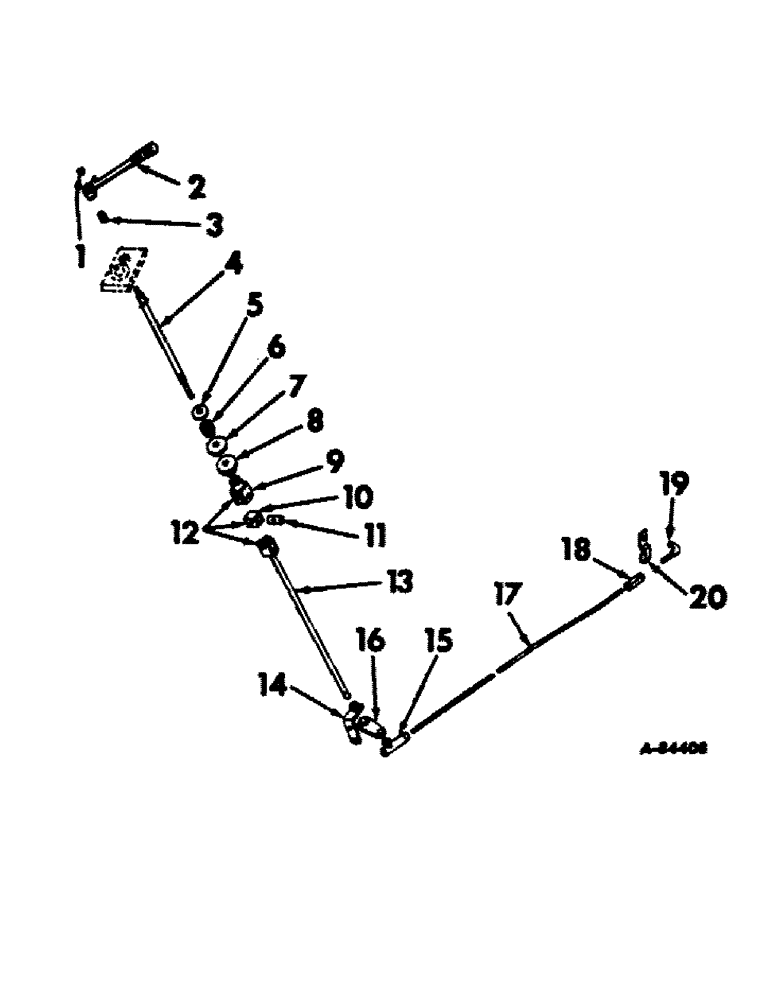

Запчасти Case IH 1206 (H-03[1]) - CONTROLS, ENGINE SPEED CONTROLS, INTERNATIONAL TRACTORS Controls

1

192105

HOLE PLUG BUTTON,1"

PLUG, 1 in. C-Z button

1шт.

2

391666R1

HANDLE

governor control

1шт.

274881

WASHER

5/16-18 stover hex. lock

1шт.

615029R1

WASHER

3/8 x 3/4 x .065

1шт.

106265

WASHER,1/2"

9/16 x 1-3/8 x .109

1шт.

3

30A

SPRING

governor control handle

1шт.

4

382683R11

SHAFT

ASSY, governor control upper, for service replacement furnish, shaft assy, 404238R11, yoke assy 404240R1, set screw 333800R1

1шт.

4

404238R11

SHAFT

ASSY, governor control upper, tractors w/o tilt steering

1шт.

4

404246R1

SHAFT

ASSY, governor control upper, tractors w/tilt steering

1шт.

443149

GROOVED PIN,3/16" x 1 1/4", Type E

Pin, Grooved, 3/16" x 1 1/4", Type E

1шт.

5

369461R1

RETAINER

RETAINER, governor control spring

1шт.

114505

JAM NUT,Jam, 1/2"-13, G5

2шт.

6

369462R1

SPRING

governor control

1шт.

7

382684R1

GASKET

DISC, governor control friction

1шт.

8

382685R11

RETAINER

RETAINER ASSY, governor control friction

1шт.

364577R1

PIN,5/32" x 3/4", Coiled

1шт.

9

382689R11

YOKE ASSY, upper, for service replacement on tractors w/o tilt steering furnish shaft assy, 404238R11, yoke assy 404240R1, set screw 333800R1, for service replacement on tractors w/tilt steering furnish, shaft assy 404246R1, yoke assy 404240R1, set screw

1шт.

9

404240R1

YOKE

ASSY, upper

1шт.

10

382691R1

CROSS

BLOCK, universal joint center

1шт.

11

382692R1

PIN

center block

1шт.

364577R1

PIN,5/32" x 3/4", Coiled

1шт.

12

382688R91

JOINT & SHAFT ASSY, governor control, for service replacement on tractors w/o tilt steering furnish joint assy 404243R91, set screw 333800R1, shaft assy 404238R11, for service replacement on tractors w/tilt steering furnish, joint assy 404243R91, set scre

1шт.

12

404243R91

JOINT & SHAFT ASSY, governor control

1шт.

13

382694R11

ROD

SHAFT ASSY, governor control lower

1шт.

385681R1

PIN

1/4 x 1-1/4 str

1шт.

14

382695R11

BRACKET

SUPPORT ASSY, governor control shaft

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

15

393353R91

JOINT TURNING

JOINT, 5/16-24 C-Z type sp ball

1шт.

425-115

NUT,5/16"-24, G5

5/16-24 hex.

1шт.

16

392955R11

LEVER

ASSY, governor control rod operating

1шт.

364577R1

PIN,5/32" x 3/4", Coiled

1шт.

17

383405R1

ROD, governor control, rear, furnish rod 401313R1

1шт.

114493

JAM NUT,Jam, 5/16"-24, G5

1шт.

455332

NUT,Jam, 5/16"-18, G5, LH

5/16-24 hex. jam LH

1шт.

17

401313R1

ROD, governor control

1шт.

18

369474R1

TURNBUCKLE

governor control rod

1шт.

19

392956R1

ROD, governor control, front

1шт.

114492

JAM NUT,Jam, 1/4"-28, G5

1/4-28 hex. jam

1шт.

432-68

COTTER PIN,3/32" x 1/2"

Pin, Split (Cotter), 3/32" x 1/2"

1шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x .065

1шт.

20

384594R1

GUIDE, governor control rod

1шт.

179875

BOLT,Hex, 1/2" - 13 x 1/2", Gr 5

SCREW, 1/2-13 x 1/2 hex-hd cap

1шт.
