Запчасти Case IH 1206 (A-10) - CHASSIS, RADIATOR AND SHEET METAL, RIGHT HAND SIDE OPERATOR MOUNTING STEP & HANDLE, FARMALL TRACTORS Chassis, Radiator & Sheet Metal

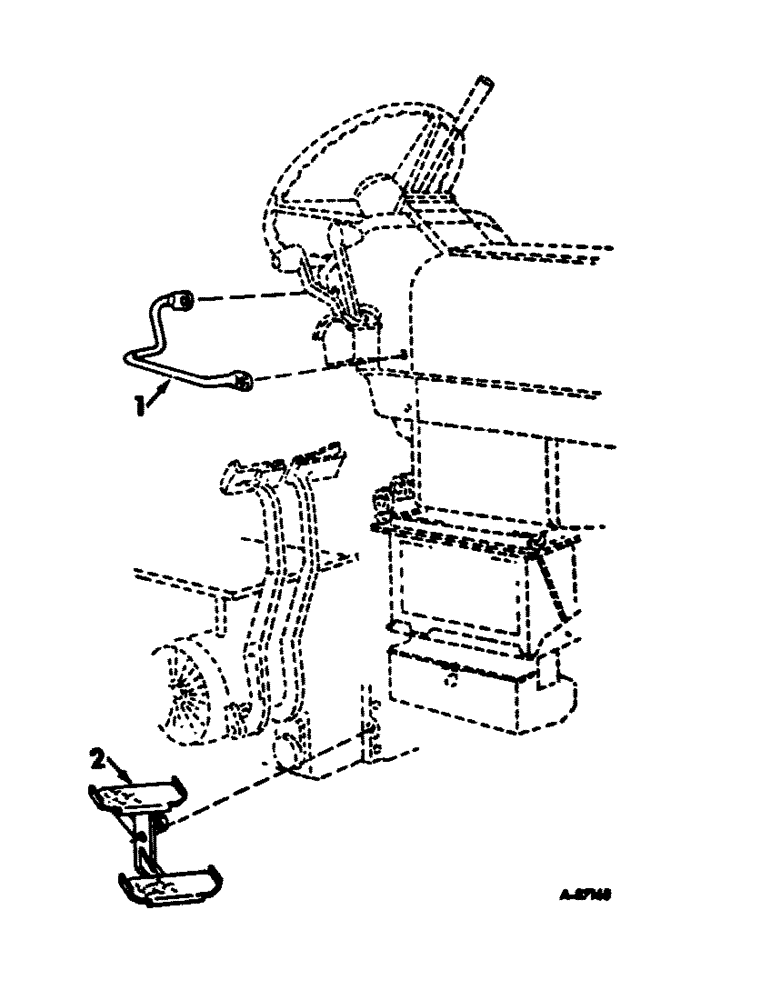

Схема запчастей Case IH 1206 - (A-10) - CHASSIS, RADIATOR AND SHEET METAL, RIGHT HAND SIDE OPERATOR MOUNTING STEP & HANDLE, FARMALL TRACTORS Chassis, Radiator & Sheet Metal
2
1

Артикул

Название

Примечание

Количество

395125R91

PARTS ACCESSORY, RH side operator mounting, also order grip, 388940R1 when applied to tractors up to serial no.

1шт.

1

394820R1

HANDLE

operator mounting assist

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 C-Z hex-hd cap

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

5/16"-18 x 1-1/4" C-Z hex-hd cap

1шт.

2

395123R1

STEP

ASSY, RH mounting

1шт.

NLS

NO LONGER SERVICED

SCREW, 3/4-10 x 1-1/2 hex-hd cap

1шт.

Q3501

WASHER

25/32 x 1-1/4 x 16 ga

1шт.

375250R1

SCREW,Flg, 5/8" - 11 x 2 1/4"

5/8-11 x 2-1/4 12 PT hd cap

1шт.

Выбрано товаров: 8
