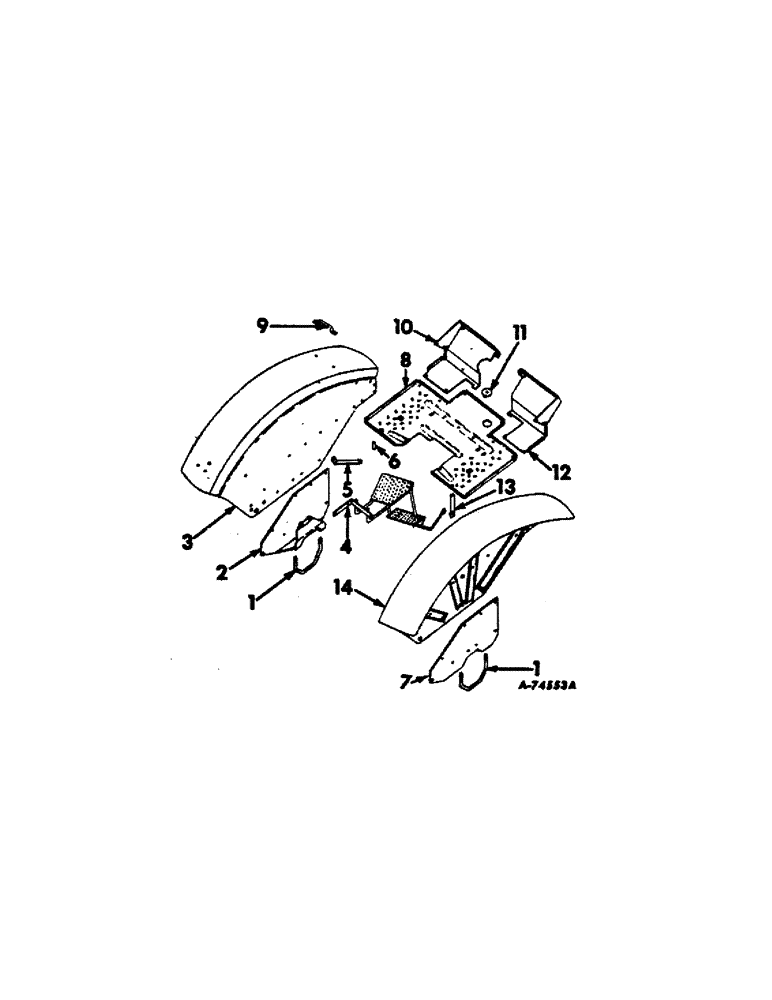

Запчасти Case IH 1206 (A-09[1]) - CHASSIS, RADIATOR AND SHEET METAL, FENDERS AND PLATFORMS Chassis, Radiator & Sheet Metal

1

379376R1

BOLT,3/4" - 10 x 8.50" W x 7.50" L

U-BOLT, fender mounting

2шт.

220081

NUT

3/4-10 hex.

4шт.

2

379714R91

SUPPORT ASSY, LH fender

1шт.

2

380831R11

SUPPORT ASSY, LH, full coverage fenders

1шт.

102635

NUT,3/8"-16, G5

2шт.

179846

LEVER

2шт.

575807R1

WASHER

13/32 x 1 x 11 ga

4шт.

3

386102R92

FENDER ASSY, LH

1шт.

102635

NUT,3/8"-16, G5

4шт.

NLS

NO LONGER SERVICED

4шт.

575807R1

WASHER

13/32 x 1 x 11 ga

4шт.

386109R21

FENDER ASSY, LH, full coverage

1шт.

102635

NUT,3/8"-16, G5

7шт.

179843

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

7шт.

575807R1

WASHER

13/32 x 1 x 11 ga

7шт.

4

383193R92

STEP ASSY, mounting

1шт.

4

385831R91

STEP ASSY, mounting, tractors with all wheel drive

1шт.

271608

PIVOT

SCREW, 3/4-10 x 1-5/8 hex-hd cap

1шт.

5

384332R1

BRACKET, fender support, LH

1шт.

102635

NUT,3/8"-16, G5

2шт.

179844

BOLT,Hex, 3/8" - 16 x 1 5/8", Gr 5

SCREW, 3/8-16 x 1-5/8 hex.-hd cap

2шт.

575807R1

WASHER

13/32 x 1 x 11 ga

2шт.

6

379718R1

SPACER,1/2" X-Strng Pipe x 1.281"

platform

4шт.

7

379715R91

SUPPORT ASSY, RH fender

7шт.

7

380832R11

SUPPORT ASSY, RH, full coverage fenders

1шт.

102635

NUT,3/8"-16, G5

2шт.

179846

LEVER

2шт.

575807R1

WASHER

13/32 x 1 x 11 ga

4шт.

8

379717R1

PLATFORM, rear frame

1шт.

8

387907R2

PLATFORM, rear frame, tractors with platform extension

1шт.

102635

NUT,3/8"-16, G5

14 used on tractors with platform extension 3/8"-16, G5

10шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

8 used on tractors with platform extension Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

3/8-16 X 1-3/8 Hex-hd cap

2шт.

179844

BOLT,Hex, 3/8" - 16 x 1 5/8", Gr 5

SCREW, 3/8-16 x 1-5/8 hex-hd cap

4шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

8шт.

575807R1

WASHER

13/32 x 1 x 11 ga

4шт.

9

381050R1

HANDLE, fender

1шт.

102635

NUT,3/8"-16, G5

2шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

2шт.

446211

WASHER, 7/16 x 7/8 x .065

2шт.

10

380391R11

SHIELD ASSY, LH mud

1шт.

10

385833R11

SHIELD ASSY, LH mud, tractors with all wheel drive

1шт.

102635

NUT,3/8"-16, G5

8шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

6шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

9шт.

11

(Not used)

1шт.

12

380392R11

SHIELD ASSY, RH mud

1шт.

102635

NUT,3/8"-16, G5

7шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

13

384333R1

BRACKET, fender support, RH

1шт.

102635

NUT,3/8"-16, G5

2шт.

179844

BOLT,Hex, 3/8" - 16 x 1 5/8", Gr 5

SCREW, 3/8-16 x 1-5/8 hex-hd cap

2шт.

575807R1

WASHER

13/32 x 1 x 11 ga

2шт.

14

386103R91

FENDER ASSY, RH

1шт.

102635

NUT,3/8"-16, G5

4шт.

NLS

NO LONGER SERVICED

4шт.

575807R1

WASHER

13/32 x 1 x 11 ga

4шт.

14

386110R91

FENDER ASSY, RH, full coverage

1шт.

179843

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

7шт.

102635

NUT,3/8"-16, G5

7шт.

575807R1

WASHER

13/32 x 1 x 11 ga

7шт.
