Запчасти Case IH 1206 (A-08) - CHASSIS, RADIATOR AND SHEET METAL, PLATFORM EXTENSION, INTERNATIONAL TRACTORS Chassis, Radiator & Sheet Metal

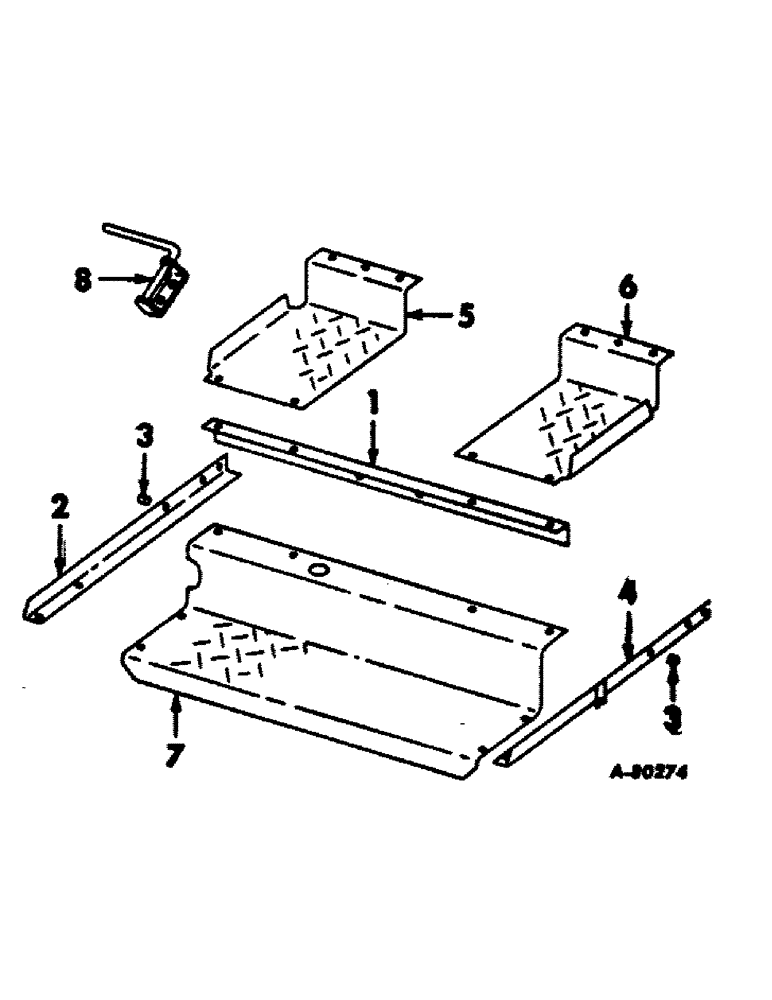

Схема запчастей Case IH 1206 - (A-08) - CHASSIS, RADIATOR AND SHEET METAL, PLATFORM EXTENSION, INTERNATIONAL TRACTORS Chassis, Radiator & Sheet Metal
7
1
3
4
5
2
8
3
6

Артикул

Название

Примечание

Количество

387914R91

PARTS ACCESSORY, platform extension, tractors without hitches

1шт.

1

387903R1

ANGLE, platform extension support

1шт.

271547

STUD,Hex, 5/8" - 11 x 1 1/2", Gr 5

SCREW, 5/8-11 x 1-1/2 hex-hd cap

2шт.

2

387904R11

ANGLE ASSY, platform support LH

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

180129

BOLT,Hex, 3/8" - 16 x 1 7/8"

SCREW, 3/8-16 x 1-7/8 hex-hd cap

1шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

SCREW, 3/8-16 x 2 hex-hd cap

3шт.

20803R1

WASHER

13/32 x 1 x 11 ga

4шт.

3

600192R1

SPACER

platform support

2шт.

4

387905R11

ANGLE ASSY, platform support RH

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

180129R1

SCREW, 3/8-16 x 1-7/8 hex-hd cap

1шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

SCREW, 3/8-16 x 2 hex-hd cap

3шт.

20803R1

WASHER

13/32 x 1 x 11 ga

4шт.

5

387908R1

EXTENSION, platform front LH

1шт.

6

687909R1

EXTENSION, platform front RH

1шт.

7

387910R2

EXTENSION, platform rear

1шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd cap

4шт.

120121

SCREW, 3/8-16 x 7/8 hex-hd cap

4шт.

8

387911R11

BRACKET ASSY, handle & lamp support

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

SCREW, 3/8-16 x 7/8 hex-hd cap

1шт.

180125

SCREW,Hex, 3/8" - 16 x 1 3/8", Gr 5

3/8-16 x 1-3/8 hex-hd cap

1шт.

180127

SCREW,Hex, 3/8" - 16 x 1 5/8", Gr 5

3/8-16 x 1-5/8 hex-hd cap

2шт.

20803R1

WASHER

13/32 x 1 x 11 ga

2шт.

Выбрано товаров: 26
