Запчасти Case IH 1206 (A-07) - CHASSIS, RADIATOR AND SHEET METAL, HOOD AND RADIATOR GRILLE Chassis, Radiator & Sheet Metal

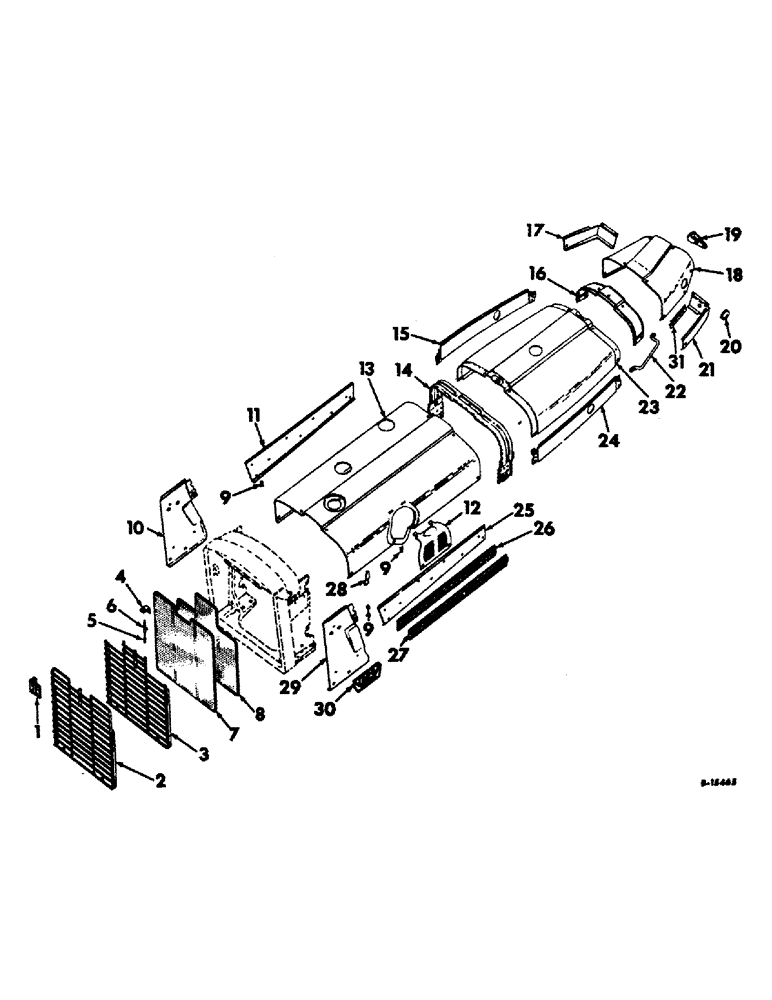

Схема запчастей Case IH 1206 - (A-07) - CHASSIS, RADIATOR AND SHEET METAL, HOOD AND RADIATOR GRILLE Chassis, Radiator & Sheet Metal
12
27
9
16
20
8
11
25
9
31
10
1
6
19
22
21
13
28
15
29
18
3
26
30
14
2
23
17
24
9
7
5
4

Артикул

Название

Примечание

Количество

1

2751809R1

DECAL

PRODUCT GRAPHIC, IH emblem, die casting, optional with 2751847R1

1шт.

1

2751847R1

PRODUCT GRAPHIC

IH emblem, plastic, optional with 2751809R1

1шт.

385059R1

SCREW,Cross Flat Hd, #10 - 24 x 7/8"

10-24 x 7/8 CR-REC-FIL HD mach

2шт.

2

392120R91

GRILLE ASSY, radiator, Farmall tractors

1шт.

3

392132R91

GRILLE ASSY, radiator, International tractors

1шт.

4

391935R11

BRACKET ASSY, grill latch

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

5

367833R1

SPRING

grille latch pin

1шт.

446178

WASHER,#12

1/4 x 1/2 x .036

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

6

392139R1

PIN, grille latch

1шт.

20989R1

PIN,1/4" x 2 1/4", Coiled

1шт.

7

392128R91

SCREEN ASSY, radiator grille, Farmall tractors

1шт.

8

392136R11

SCREEN ASSY, radiator grille, International tractors

1шт.

9

376787R1

WASHER

RETAINER, screw

6шт.

10

391728R21

PANEL ASSY, RH radiator support, Farmall tractors

1шт.

10

391730R21

PANEL ASSY, RH radiator support, International tractors

1шт.

10

395478R11

PANEL ASSY, radiator support RH, tractors w/air conditioned cab

1шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

5/16-18 floating cage

1шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 hex. washer hd bevel cap

3шт.

11

378634R1

PANEL, RH front hood side, Farmall tractors w/serial no. 11792 & below, International tractors w/serial no. 8383 & below

1шт.

11

396342R1

PANEL

RH front hood side, Farmall tractors w/serial no. 11793 & above, International tractors w/serial no. 8384 & above

1шт.

389872R1

THUMB SCREW,Knurled Head, 5/16"-18 x 3/4"

SCREW, front hood side panel thumb

2шт.

12

391726R1

COVER

front hood access, furnish hood 397879R91

1шт.

12

397897R91

HOOD ASSY, front

1шт.

389872R1

THUMB SCREW,Knurled Head, 5/16"-18 x 3/4"

SCREW, front hood access cover thumb

2шт.

13

391723R11

HOOD ASSY, front, furnish cover 397881R1

1шт.

13

397881R1

GRILLE

COVER, front hood access

1шт.

389427R91

CAPTIVE WASHER SCREW,Hex, 5/16" - 18 x 3/4"

SCREW, 5/16-18 x 3/4 hex-hd cap w/washer

8шт.

14

395280R91

REINFORCEMENT

ASSY, rear hood front

1шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

5/16-18 floating cage

6шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

4шт.

15

378639R1

PANEL, RH rear hood side, Farmall tractors w/side headlights

1шт.

15

378671R1

PANEL

RH rear hood side, All International tractors and Farmall tractors w/flat top deluxe fenders & adj headlights

1шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 hex. washer hd bevel cap

2шт.

16

378640R11

REINFORCEMENT ASSY, rear hood rear

1шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

5/16-18 floating cage

2шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

SCREW, 5/16-18 x 1/2 hex-hd cap

4шт.

17

382643R1

HOUSING, steering support lower RH

1шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 hex. washer hd bevel cap

1шт.

18

382644R1

HOUSING, steering & gear selector support

1шт.

18

385797R1

HOUSING, steering & gear selector support, all wheel drive tractors

1шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 hex, washer hd bevel cap

8шт.

19

383127R1

BRACKET, support housing mounting

1шт.

NLS

NO LONGER SERVICED

2шт.

20

187758

PLUG,2 1/2"

torque amplifier opening button

1шт.

21

389907R1

HOUSING, steering support lower LH

1шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 hex. washer hd cap

1шт.

22

384343R1

HANDLE

operators mounting assist LH

1шт.

21534R1

BOLT,Hex, 5/16" - 18 x 1"

SCREW, 5/16-18 x 1 cd or zn-pltd hex-hd cap

1шт.

21535R1

SCREW, 5/16-18 x 1-1/4 cd or zn-pltd hex-hd cap

1шт.

23

381412R1

HOOD

rear

1шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 hex. washer hd bevel cap

2шт.

24

378638R1

PANEL, LH rear hood side, Farmall tractors w/side headlights

1шт.

24

378670R1

PANEL, LH rear hood side, all International tractors and Farmall tractors w/flat top deluxe fenders & adj headlights

1шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 hex. washer hd bevel cap

2шт.

25

378633R1

PANEL, LH front hood side, Farmall tractors w/serial no. 11792 & below, International tractors w/serial no. 8383 & below

1шт.

25

396341R1

PANEL

LH front hood side, Farmall tractors w/serial no. 11793 & above, International tractors w/serial no. 8384 & above

1шт.

389872R1

THUMB SCREW,Knurled Head, 5/16"-18 x 3/4"

SCREW, front hood side panel thumb

2шт.

26

381553R1

PRODUCT GRAPHIC

PLATE, International name

2шт.

370786R1

FASTENER

tubular clip

14шт.

27

377796R1

PRODUCT GRAPHIC

PLATE, Mc Cormick Farmall name

2шт.

370786R1

FASTENER

tubular clip

14шт.

28

369173R1

SPRING

hood panel

5шт.

110633

NUT,#10-24

5шт.

29

391727R21

PANEL ASSY, LH radiator support, Farmall tractors

1шт.

29

391729R21

PANEL ASSY, LH radiator support, International tractors

1шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

5/16-18 floating cage

1шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 hex. washer hd bevel cap

3шт.

370786R1

FASTENER

tubular clip

4шт.

30

2752935R1

PRODUCT GRAPHIC

1206 model symbol plate

2шт.

30

2753231R1

PRODUCT GRAPHIC, 21206 model symbol decal

2шт.

31

2752210R1

PRODUCT GRAPHIC, all wheel drive emblem

2шт.

370786R1

FASTENER

tubular clip

4шт.

Выбрано товаров: 74
