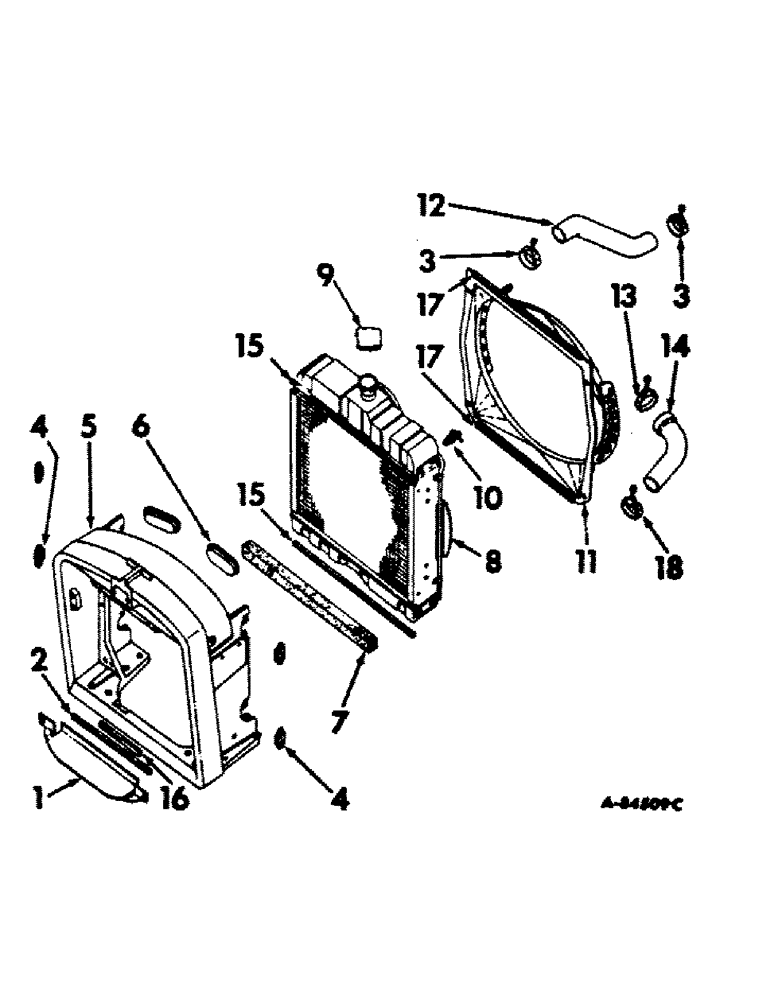

Запчасти Case IH 1206 (A-05) - CHASSIS, RADIATOR AND SHEET METAL, RADIATOR AND CONNECTIONS Chassis, Radiator & Sheet Metal

1

383407R1

BAFFLE, radiator air, International tractors

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

2шт.

2

385631R1

SEAL

radiator air baffle long, Farmall tractors, 2 for International tractors

1шт.

3

39205H

CLAMP

radiator hose

2шт.

4

378710R91

PLATE ASSY.

BRACKET, radiator mounting plate

4шт.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

7шт.

179796

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

SCREW, 1/4-20 x 7/8 hex-hd cap

4шт.

5

378705R4

SUPPORT, radiator, furnish 378640R1

1шт.

5

398640R1

SUPPORT, radiator

1шт.

19555R1

PIN,5/16" x 1", Coiled

2шт.

271565

SHIELD,Hex, 5/8" - 11 x 2 3/4", Gr 5

SCREW, 5/8-11 x 2-3/4 hex-hd cap, Farmall tractors

5шт.

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

SCREW, 5/8-11 x 2-3/4 hex-hd cap, International tractors

6шт.

384317R1

SCREW, 5/8-11 x 2-3/4 (12) PT-HD cap, Farmall tractors

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

6

383788R1

PLUG

radiator support

2шт.

7

383839R1

GASKET

GASKET, radiator baffle, Farmall tractors

1шт.

8

391931R91

RADIATOR ASSY, less filler cap

1шт.

9

402281R1

CYLINDER END CAP

CAP, radiator pressure

1шт.

10

614201R1

VALVE

COCK, 1/4 drain, radiator

1шт.

11

391933R12

SHROUD ASSY, fan

1шт.

11

395480R1

SHROUD ASSY, fan, tractors w/air conditioned cab

1шт.

179789

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

4шт.

95-11028

WASHER,1/4"

9/32 x 5/8 x .051

4шт.

12

391932R1

RADIATOR HOSE,50.80 mm ID x 248.90 mm, SAE 20R4, CLASS R, GRADE 1

Inlet 50.80 mm ID x 248.90 mm, SAE 20R4, CLASS R, GRADE 1

1шт.

13

39219H

CLAMP

radiator outlet hose upper

1шт.

14

380448R2

RADIATOR HOSE,55.90 mm ID x 213.40 mm, SAE 20R4 CLASS SC

Outlet 55.90 mm ID x 213.40 mm, SAE 20R4 CLASS SC

1шт.

15

385631R1

SEAL

radiator air, on radiator, 2 for International tractors

1шт.

16

528936R1

GASKET

SEAL, radiator air, will work for 389600R1

1шт.

17

391934R1

SEAL, radiator air

2шт.

18

81448H

EXCITER

CLAMP, radiator outlet hose lower

1шт.
