Запчасти Case IH 1206 (A-03) - CHASSIS, RADIATOR AND SHEET METAL, CLUTCH HOUSING AND COVERS Chassis, Radiator & Sheet Metal

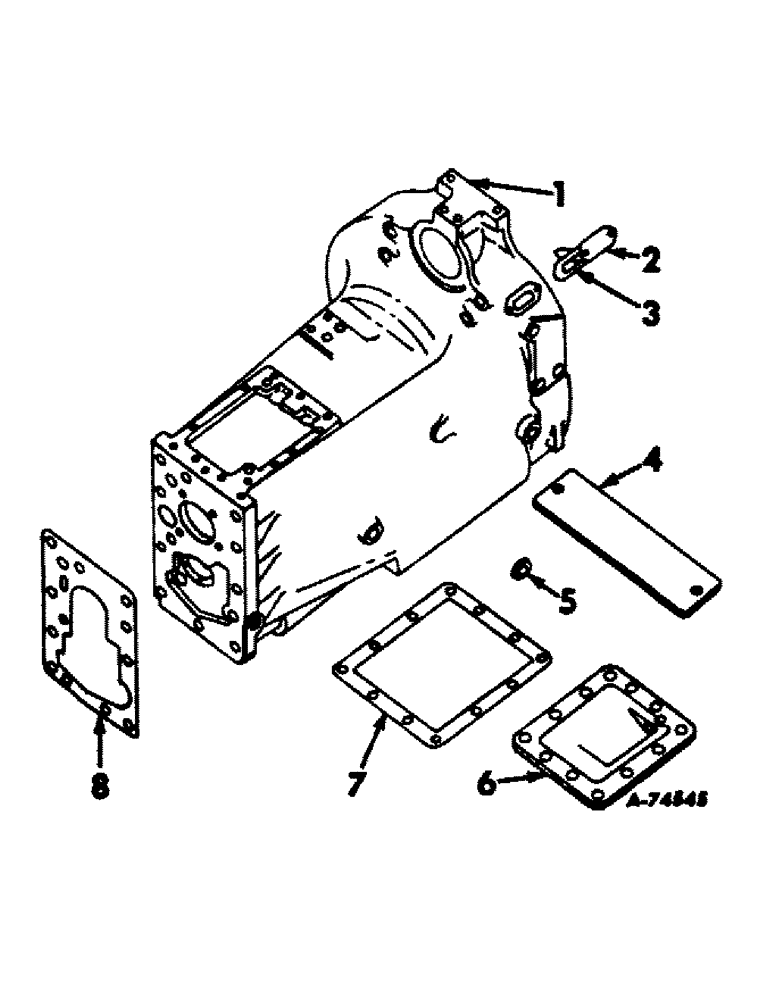

Схема запчастей Case IH 1206 - (A-03) - CHASSIS, RADIATOR AND SHEET METAL, CLUTCH HOUSING AND COVERS Chassis, Radiator & Sheet Metal
4
6
8
2
3
5
1
7

Артикул

Название

Примечание

Количество

1

380066R92

HOUSING W/PLUG, 444788 and seat, 381611R1, clutch

1шт.

444788

DRAIN PLUG,Sq Soc, 1/2"-14 NPTF

PLUG, 1/2-14 sq-soc pipe

1шт.

179884

BOLT,Hex, 1/2" - 13 x 1 3/8", Gr 5, Full Thd

SCREW, 1/2-13 x 1-3/8 hex-hd cap

2шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

SCREW, 5/8-11 x 2-1/4 hex-hd cap, (8) Farmall tractors, (10) International tractors

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, (6) Farmall tractors, (10) International tractors 5/8"

1шт.

2

380073R1

COVER, engine timing opening

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

3

380072R1

POINTER, engine timing

1шт.

4

380068R1

BAR

COVER, clutch compartment

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

5

381611R1

SEAT

valve

1шт.

6

384077R11

COVER

W/PLUG, clutch housing bottom

1шт.

103735

HOUSING

PIN, 1/4 x 1/2 chamfered straight

1шт.

217-469

DRAIN PLUG,Sq Soc, 3/4" - 14 NPTF

PLUG, 3/4-14 sq-soc pipe

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

12шт.

7

384078R1

GASKET

clutch housing bottom cover

1шт.

8

92613C91

GASKET

clutch housing (replaces 380067R1)

1шт.

45979D

STUD

PIN, rear engine support dowel

1шт.

Выбрано товаров: 20
