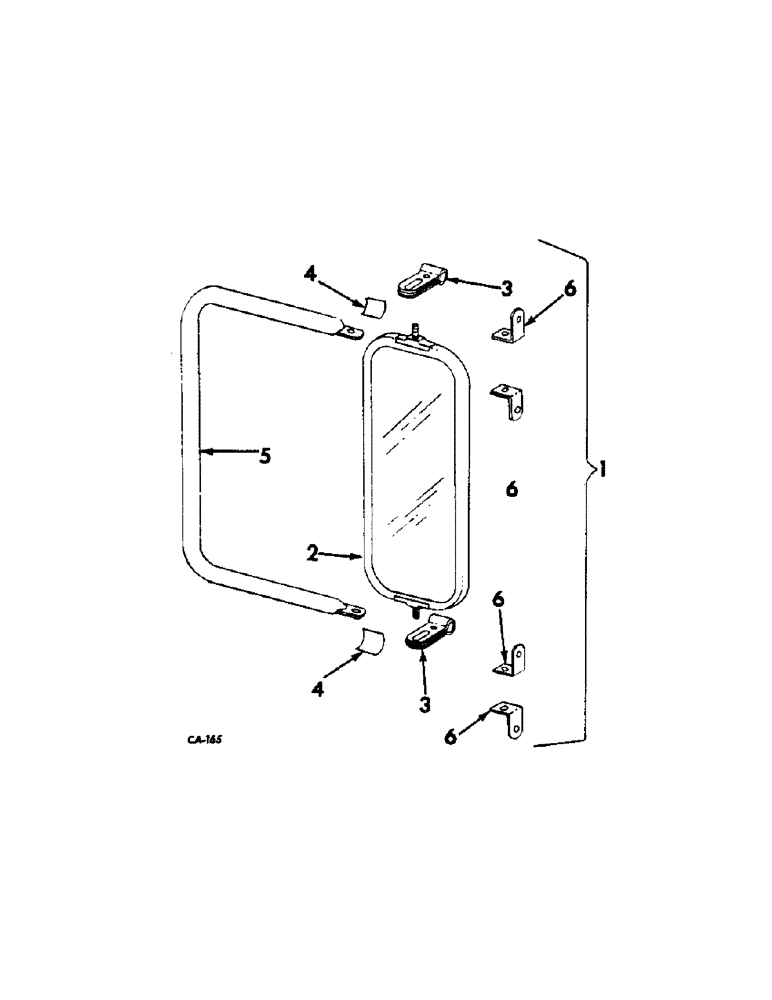

Запчасти Case IH 1206 (N-17) - PARTS ACCESSORIES AND ATTACHMENTS, REAR VIEW MIRROR Accessories & Attachments

1

401538R91

MIRROR ASSY, rear view, optional w/527346R91, consists of all parts marked unit A

1шт.

1

527346R91

MIRROR ASSY, rear view, optional w/401538R91, consists of all parts marked unit B

1шт.

2

403628R1

HEAD

ASSY, mirror, unit A

1шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .051 C-Z

4шт.

138542

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

2шт.

131502

NUT, 3/8-24 C-Z low crown

2шт.

2

527347R1

HEAD

ASSY, mirror, unit B

1шт.

21843R1

WASHER

13/32 x 1 x 4 ga C-Z

2шт.

138542

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

2шт.

131422

SUPPORT,Crown, 3/8"-16

NUT, 3/8-16 C-Z low crown

2шт.

3

403629R1

BRACKET, mirror head, unit A

2шт.

181565

SCREW, 1/4-28 x 11/16 C-Z hex-hd cap

1шт.

120423

LOCK WASHER,Int Tooth, 0.267" ID x 0.478" OD x 0.028"

WASHER, LOCK, Int Tooth, 1/4"

2шт.

120367

NUT,Hex, 1/4" - 28, Gr 5

1/4-28 C-Z hex.

2шт.

3

352229C1

BRACKET, mirror head, unit B

2шт.

151561

SMALL ELECTRIC MOTOR

SCREW, 1/4-28 x 1/2 znd hex-hd cap

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

231-2444

NUT,1/4"-28, GB

NUT, LOCK, 1/4"-28, GB

2шт.

4

527348R1

GASKET, head bracket, unit B

1шт.

5

403630R1

SUPPORT

LOOP, mirror mounting, unit A

1шт.

5

527349R1

SUPPORT

LOOP, mirror mounting, unit B

1шт.

6

403631R1

BRACKET, mirror mounting, unit A

4шт.

181636

BOLT,Hex, 3/8" - 24 x 7/8", Gr 5

SCREW, 3/8-24 x 7/8 C-Z hex-hd cap

2шт.

138542

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

2шт.

120369

NUT,3/8"-24, G5

2шт.

6

527350R1

BRACKET, mirror mounting, unit B

4шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

2шт.

142619H

WASHER

13/32 x 3/4 x 11 ga C-Z

4шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

402359R91

PARTS ACCESSORY, rear view mirror, for tractors previously not equipped w/rear view mirrors

1шт.

400550R91

CLUTCH ASSY, sheave

1шт.
