(M-04[2]) - SEATS AND MISCELLANEOUS, TOOLS

Запчасти Case IH 1206 (M-04[2]) - SEATS AND MISCELLANEOUS, TOOLS (10) - OPERATORS PLATFORM

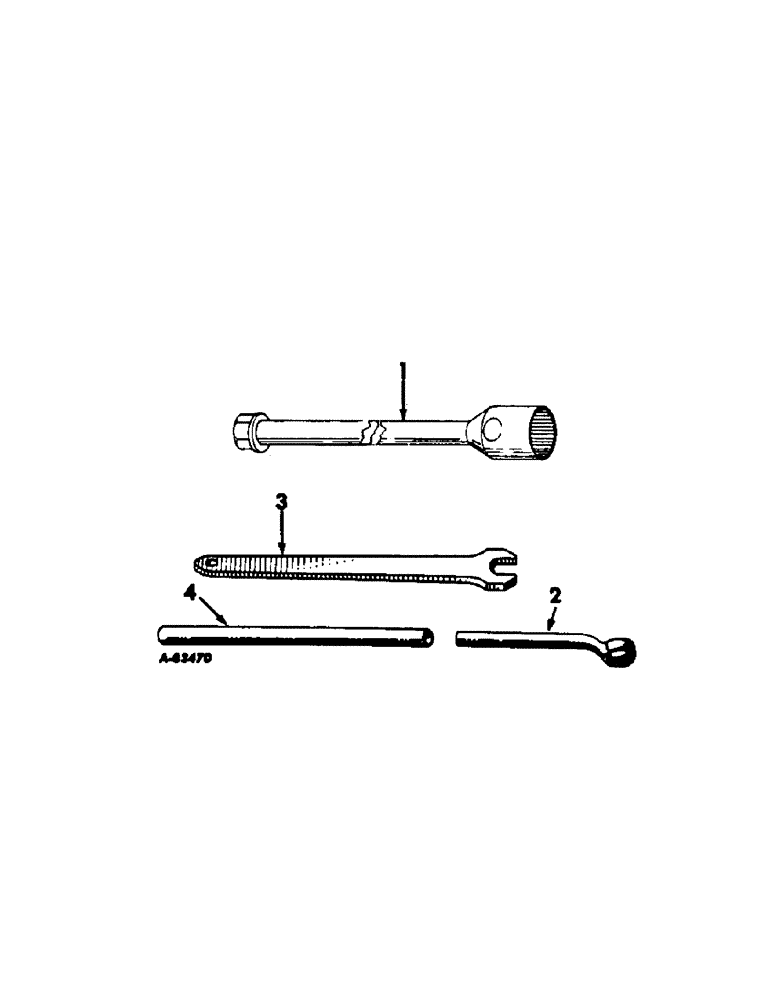

Схема запчастей Case IH 1206 - (M-04[2]) - SEATS AND MISCELLANEOUS, TOOLS (10) - OPERATORS PLATFORM
1
2
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

(Not used in this application)

1шт.

2

373941R2

SOCKET WRENCH

WRENCH, rd handle box, 1-5/16

1шт.

2

373942R1

TOOL

WRENCH, rd handle box, 1-1/8

1шт.

3

(Not used in this application)

1шт.

4

373943R1

EXTENSION, wrench

1шт.

4

385718R2

EXTENSION

wrench, 1 inch x 48 inch long

1шт.

21372D

GREASE, tube of magneto

1шт.
