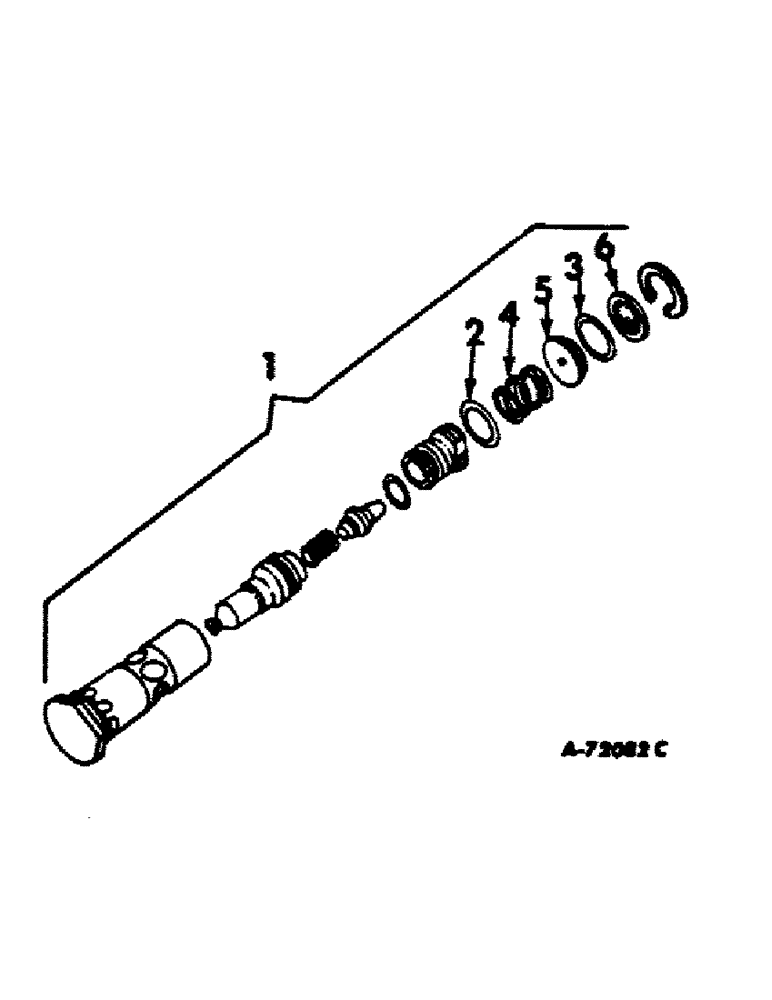

Запчасти Case IH 1206 (F-24) - HYDRAULIC SYSTEM, PILOT RELIEF VALVE (07) - HYDRAULIC SYSTEM

1

388208R92

VALVE

ASSY, pilot relief

1шт.

2

406185R1

O-RING

5/8 x 3/4 x 1/16, treated, poppet, replaces 379181R1

5шт.

3

298385R1

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

11/16 x 13/16 x 1/16, orifice plate

1шт.

4

386040R1

SPRING

poppet return

1шт.

5

386042R1

PLATE

orifice

1шт.

6

386073R91

SCREEN

ASSY, pilot relief valve

1шт.
