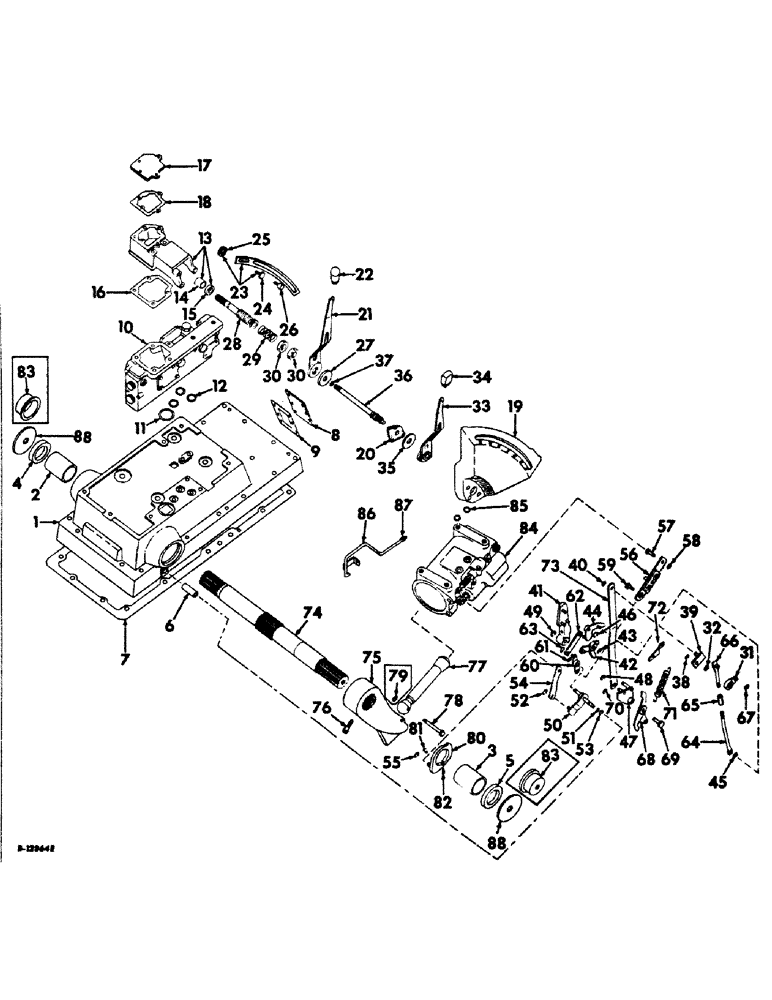

Запчасти Case IH 1206 (F-11) - HYDRAULIC SYSTEM, DRAFT CONTROL (07) - HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
398347R91
PARTS ACCESSORY, hydraulic draft control, tractors with 12 gpm power supply
1шт.
1
398353R91
COVER W/TWO BEARINGS, bushing and two oil seals, rear frame, will work 385935R92
1шт.
271570
SEALING RING COLLAR,Hex, 5/8" - 11 x 4", Gr 5
SCREW, 5/8-11 x 4 hex-hd cap
16шт.
444776
PLUG,Sq Soc, 1/4"-18 NPTF
1/4-18 NPTF sq-soc pipe
1шт.
2
382774R2
BUSHING,70.78mm ID x 76.2mm OD x 80.26mm L
BEARING, rockshaft LH
1шт.
3
382775R2
BUSHING,76.85mm ID x 81.28mm OD x 80.26mm L
BEARING, rockshaft RH
1шт.
4
382776R91
OIL SEAL
rockshaft oil LH
1шт.
5
382778R91
OIL SEAL
rockshaft RH oil
1шт.
6
382798R1
BUSHING
eccentric shaft position control
1шт.
7
380264R2
GASKET
rear frame cover
1шт.
8
382415R1
COVER
valve adj opening
1шт.
179814
SPACER
6шт.
9
382416R1
GASKET
valve adj opening cover
1шт.
10
399604R91
SUPPORT ASSY, seat RH, for components see list of parts under parts under details of seat & hydraulic component support
1шт.
179841
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5
3/8-16 x 1-1/4 hex-hd cap
2шт.
279991R1
SCREW
W/PELLET INSERT, 1/2-13 x 1-1/2 hex-hd cap
1шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
1шт.
11
384377R1
O-RING,0.103" Thk x 2.55" ID, -141, Cl 6, 90 Duro
2-5/16 x 2-1/2 x 3/32, hyd component housing large
1шт.
12
381884R1
O-RING,0.103" Thk x 0.987" ID, -120, Cl 6, 90 Duro
1 x 1-3/16 x 3/32, hyd component housing small
2шт.
12
386867R1
O-RING,0.103" Thk x 1.11" ID, -122, Cl 6, 90 Duro
1-1/8 x 1-5/16 x 3/32, hyd component housing
1шт.
13
382792R11
SUPPORT ASSY.
SUPPORT ASSY, draft control quadrant
1шт.
138250
SCREW, 3/8-16 x 3 hex-soc-hd cap
2шт.
280161
BOLT,Hex, 3/8" - 16 x 3", Gr 5
2шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
14
401836R1
BEARING ASSY, quadrant support
1шт.
15
383133R91
SEAL
quadrant support oil
1шт.
16
382793R1
GASKET
quadrant support opening
1шт.
17
382794R1
COVER
quadrant support
1шт.
179791
BOLT,Hex, 1/4" - 20 x 1/2", Gr 5
4шт.
180021
SPRING
SCREW, 1/4-20 x 7/8 C-Z hex-hd cap
1шт.
18
382795R1
GASKET
quadrant support cover
1шт.
19
399384R1
SECTOR
QUADRANT, control, will work for 382796R1
1шт.
186270
BOLT,Hex, 5/16" - 18 x 3 1/2", Gr 5
3шт.
20
398654R1
BEARING, sensitivity control shaft
1шт.
21
398355R1
HANDLE
ASSY, position control
1шт.
22
382801R1
BALL
KNOB, position control handle
1шт.
23
378619R11
GUIDE
ASSY, position control handle
1шт.
88542
BOLT,Hex, 1/4"-20 x 1/2", Gr 5
SCREW, 1/4-20 x 1/2 OD or zn-pltd hex-hd cap
2шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
24
371599R2
LARGE PIN
PIN, adjustable stop
1шт.
25
371600R2
HANDLE
KNOB, adjustable stop pin
1шт.
26
378620R1
STOP
position control handle
1шт.
144417H
NUT,1/4"-28, GB
1/4-28 cd pltd ESNA stop
1шт.
27
376056R1
DISC
position control handle friction
1шт.
28
382802R11
SHAFT
ASSY, position control
1шт.
29
378067R1
SPRING
position control handle friction
1шт.
30
376063R1
NUT
position control handle friction spring
2шт.
NLS
NO LONGER SERVICED
13/16 x 1-1/2 x .134
1шт.
31
382803R2
LEVER, position control
1шт.
32
378066R1
SNAP RING,#X74, .616" Dia, E-Type
Ring, Retaining, , position control shaft #X74, .616" Dia, E-Type
2шт.
33
398357R1
HANDLE
ASSY, sensitivity control
1шт.
34
382805R1
KNOB
sensitivity control handle
1шт.
35
380421R1
FRICTION WASHER
DISC, sensitivity control handle friction
1шт.
36
384602R91
SHAFT
ASSY, sensitivity control lever
1шт.
114503
JAM NUT,Jam, 3/8"-16, G5
2шт.
376066R1
BELLEVILLE WASHER
bellville
2шт.
Q1597
WASHER
13/32 x 3/4 x 16 ga
1шт.
37
355967R1
O-RING,0.364" ID x 0.003" Width
3/8 x 1/2 x 1/16, sensitivity control shaft
1шт.
38
110668R1
CIRCLIP,#37, .300" Dia, E-Type
Ring, Retaining, , sensitivity control shaft #37, .300" Dia, E-Type
1шт.
39
392222R11
LEVER ASSY, sensitivity control
1шт.
40
110668R1
CIRCLIP,#37, .300" Dia, E-Type
Ring, Retaining, , sensitivity control lever pin #37, .300" Dia, E-Type
1шт.
41
384511R91
SUPPORT
ASSY, position control stop pivot
1шт.
179840
BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5
SCREW, 3/8-16 x 1-1/8 hex-hd cap
1шт.
179842
SPACER
3/8-16 x 1-3/8 hex-hd cap
1шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
42
384513R11
LEVER
ASSY, draft control stop
1шт.
43
381478R1
SNAP RING,#X43, .375" Dia, E-Type
Ring, Retaining, , draft control stop lever #X43, .375" Dia, E-Type
1шт.
44
382825R11
LEVER
BELLCRANK ASSY, position control
1шт.
45
110668R1
CIRCLIP,#37, .300" Dia, E-Type
Ring, Retaining, , position control bellcrank pin #37, .300" Dia, E-Type
1шт.
46
204502R1
SNAP RING,#43, Ext
Position control bellcrank #43, Ext
1шт.
47
392223R91
ASSEMBLY
ECCENTRIC ASSY, draft control
1шт.
48
110668R1
CIRCLIP,#37, .300" Dia, E-Type
Ring, Retaining, , draft control eccentric shaft #37, .300" Dia, E-Type
1шт.
49
370290R1
SNAP RING,#50, .392" Dia, E-Type
Ring, Retaining, , draft control eccentric #50, .392" Dia, E-Type
1шт.
50
384399R91
ECCENTRIC
ASSY, position control
1шт.
51
355967R1
O-RING,0.364" ID x 0.003" Width
3/8 x 1/2 x 1/16, eccentric shaft
1шт.
52
110668R1
CIRCLIP,#37, .300" Dia, E-Type
Ring, Retaining, , position control eccentric pin #37, .300" Dia, E-Type
1шт.
53
971043R1
SNAP RING,#50, Ext
Eccentric shaft #50, Ext
1шт.
54
382838R1
LINK
, Serial Range: eccentric-rockshaft
1шт.
55
110668R1
CIRCLIP,#37, .300" Dia, E-Type
Ring, Retaining, , eccentric to rockshaft link #37, .300" Dia, E-Type
1шт.
56
403984R1
LINK
ASSY, walking beam to valve, replaces 384515R12
1шт.
57
382841R1
PIN
walking, Serial Range: beam-valve
1шт.
58
110668R1
CIRCLIP,#37, .300" Dia, E-Type
Ring, Retaining, , valve pin #37, .300" Dia, E-Type
1шт.
59
382842R1
SCREW,Shldr, Hex, 5/16" - 18 x 0.65", W/ Nylon Pellet
shoulder
1шт.
60
382843R11
BEAM
ASSY, follow-up walking
1шт.
61
110668R1
CIRCLIP,#37, .300" Dia, E-Type
Ring, Retaining, , follow-up walking beam #37, .300" Dia, E-Type
1шт.
62
382845R1
LINK
walking, Serial Range: beam-bellcrank
1шт.
63
104977R1
SNAP RING,#X31, .243" Dia, E-Type
RING, RETAINING, , Walking beam to bellcrank #X31, .243" Dia, E-Type
1шт.
64
382846R1
ROD
position control, lower
1шт.
65
382847R1
TURNBUCKLE
position control rod
1шт.
114503
JAM NUT,Jam, 3/8"-16, G5
1шт.
66
382848R11
ROD
ASSY, position control, upper
1шт.
67
110668R1
CIRCLIP,#37, .300" Dia, E-Type
Ring, Retaining, , position control rod pin #37, .300" Dia, E-Type
1шт.
68
392225R1
ARM
draft control sensing pick-up
1шт.
69
382788R1
PIN
sensing pick-up arm
1шт.
70
110668R1
CIRCLIP,#37, .300" Dia, E-Type
Ring, Retaining, , sensing pick-up arm pin #37, .300" Dia, E-Type
1шт.
71
392280R1
SPRING
sensing arm return
1шт.
72
387414R1
ANCHOR
spring, part of cylinder & valve, 391908R91
1шт.
73
392226R1
LINK, draft control eccentric to sensing lever
1шт.
74
392872R2
ROCKSHAFT
hyd draft control
1шт.
75
382810R2
ROD
BELLCRANK, rockshaft
1шт.
76
382811R1
SET SCREW,Hex, 3/8" - 16, Lok-Thd x 1 1/2", Cone Pt
rockshaft bellcrank lok, thread set
1шт.
77
382812R4
ROD
piston connecting
1шт.
78
398314R1
SPARE PART
PIN, piston connecting rod
1шт.
103384
COTTER PIN,1/8" x 3/4"
Pin, Split (Cotter), 1/8" x 3/4"
1шт.
16558R1
WASHER
17/64 x 5/8 x .049
1шт.
79
(Not used in this application)
1шт.
80
384518R11
CAM
ASSY, rockshaft actuating hub
1шт.
81
376057R1
BUCKET TOOTH KEY
KEY, rockshaft actuating hub cam
1шт.
82
382816R1
SET SCREW
rockshaft actuating hub cam set
1шт.
83
382818R1
RETAINER
rockshaft arm
2шт.
271556
WHEEL CYLINDER,Hex, 5/8" - 11 x 1 1/4", Gr 5
SCREW, 5/8-11 x 1-1/4 hex-hd cap
2шт.
84
391908R94
CYLINDER & VALVE ASSY, draft control, for components see list of parts under details of draft control cylinder & valve
1шт.
NLS
NO LONGER SERVICED
SCREW, 5/8-11 x 3-3/4 hex-hd cap
2шт.
85
387926R2
RING
seal, Serial Range: cylinder-cover
2шт.
86
385942R91
TUBE
ASSY, cylinder lub
1шт.
179816
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
1шт.
87
19984R1
TUBE NUT,7/16"-24
NUT, 7/16-24 hi-duty tube fitting
1шт.
88
(Not used in this application)
1шт.
Выбрано товаров: 122
