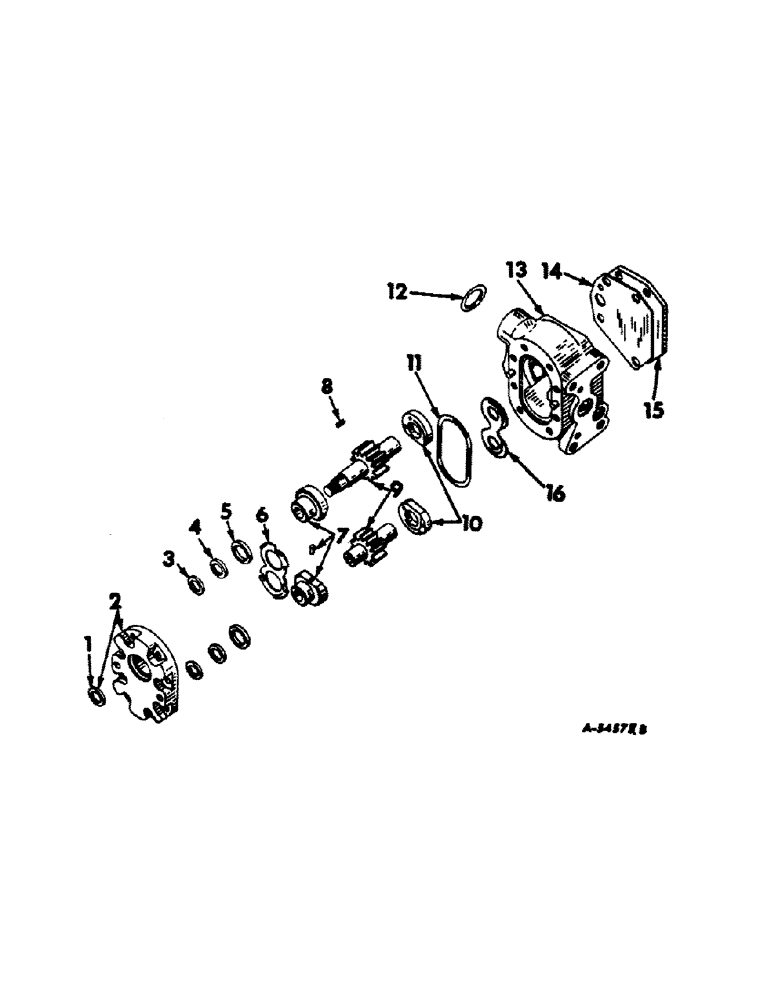

Запчасти Case IH 1206 (F-10) - HYDRAULIC SYSTEM, HYDRAULIC PUMP, THOMPSON, 12 GPM (07) - HYDRAULIC SYSTEM

374483R95

HYDRAULIC PUMP

PUMP ASSY, hydraulic, 12 gpm, optional with 373964R93

1шт.

1

373157R91

OIL SEAL

SEAL, pump shaft oil

1шт.

2

374542R91

COVER ASSY, pump, for service replacement also order o-ring and gasket package, 371549R93

1шт.

380617R1

SCREW, 12 point cap

8шт.

3

WASHER, back-up, not serviced separately order package, 371549R93

2шт.

4

O-RING, pressure bearing, not serviced separately order package, 3715493R93

2шт.

5

374543R1

RETAINER

pressure bearing o-ring

2шт.

6

371530R1

SPRING

pressure plate

1шт.

7

371807R91

BEARING

PACKAGE, pressure bearing, for service replacement also order o-ring and gasket package, 371549R93

1шт.

7

1949296C1

REMAN-HYD PUMP

Reman For New PN 371807R91

1шт.

7

1949297C1

CORE-HYDRAULIC PUMP

Return Number

1шт.

8

370942R1

KEY

5/32 x 13/32 sq parallel

1шт.

9

371804R91

PACKAGE, drive and driven gear, note

1шт.

10

371810R91

PACKAGE, body bearing, for service replacement also order o-ring and gasket package, 371549R93

1шт.

19501R1

SCREW, 6-32 x 1 hex-soc-hd cap

6шт.

11

O-RING, pump cover, not serviced separately order package, 371549R93

1шт.

12

252483R1

O-RING,-218, 70 Duro, 1.234" ID x .139" Thk

1-1/4 x 1-1/2 x 1/8, suction port

1шт.

13

374547R94

BODY W/BEARINGS, pump, for service replacement also order o-ring and gasket package, 371549R93

1шт.

14

GASKET, implement pump rear cover, not serviced separately order package, 371549R93

1шт.

15

371532R1

COVER, implement pump rear

1шт.

16

383664R1

LARGE PLATE

PLATE, body wear

1шт.

371549R93

PACKAGE

hydraulic pump o-ring and gasket service, consists of (1) gasket 371547R1 (NSS), (1) oil seal 373157R91, (1) o-ring 252483R1, (1) o-ring 252739R1, (1) o-ring 254091R1 (NSS), (1) o-ring 254691R1, (2) o-ring 372764R1 (NSS), (1) 352221R1, (2) washer

1шт.
