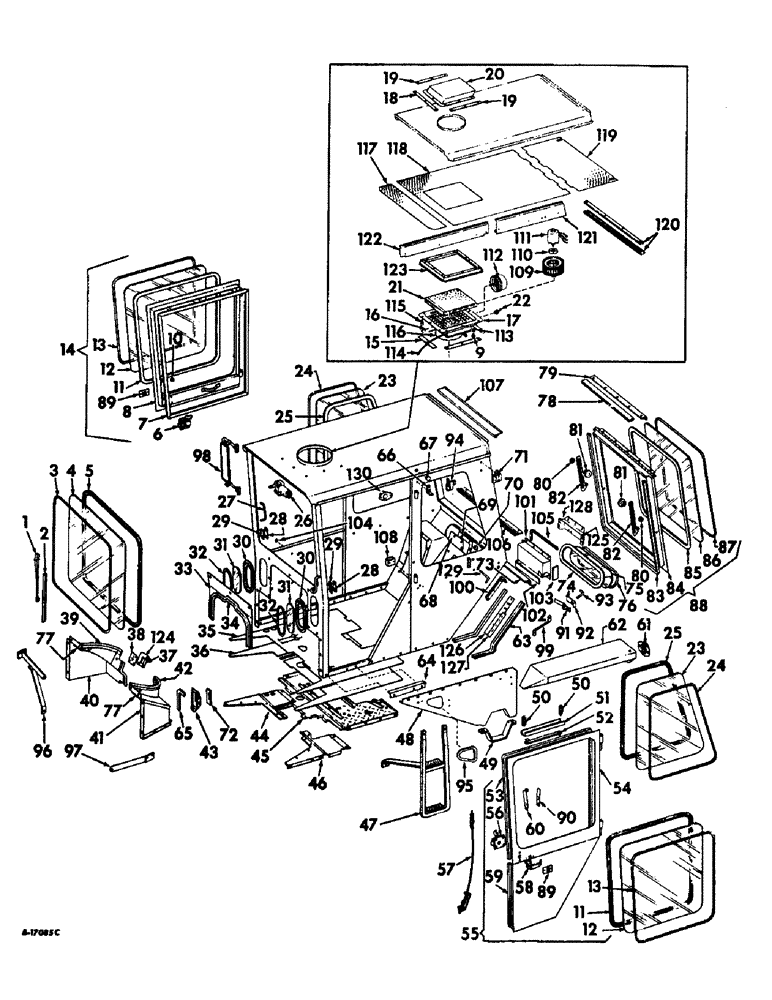

Запчасти Case IH 1206 (N-03) - PARTS ACCESSORIES AND ATTACHMENTS, TRACTOR CAB AND CONNECTIONS Accessories & Attachments
№
Артикул
Название
Примечание
Количество
1
404242R1
ARM
ASSY, wiper, replaces 391141R91
1шт.
2
346909C1
WIPER
BLADE ASSY, wiper, replaces 163195R91
1шт.
3
391784R1
SEAL, front windshield glass weatherstrip, 128 in., purchase locally
1шт.
4
391534R1
GLASS, front windshield, for details see listing under tractor cab glass dimensions
1шт.
5
391783R1
SEAL, front windshield glass molding, 128 in., purchase locally
1шт.
6
391530R91
LATCH ASSY, LH door
1шт.
446607
SCREW, 10-32 x 1/2 C-Z cr-rec-truss-hd mach
4шт.
7
391771R1
SEAL, RH door weather, 135 in., purchase locally
1шт.
8
391514R91
FRAME ASSY, RH door, Farmall tractor serial no. 9210 and below, International tractor serial no. 7855 and below
1шт.
8
395242R91
FRAME ASSY, RH door, Farmall tractor serial no. 9211 and above, International serial no. 7856 and above
1шт.
9
399350R1
KNOB, fresh air
1шт.
10
391772R2
GROMMET, RH door
1шт.
11
391769R1
SEAL, LH & RH door window glass molding, 114 in., purchase locally
2шт.
12
391515R1
GLASS, LH & RH door window, for details see listing under tractor cab glass dimensions
2шт.
13
391770R1
SEAL, LH & RH door window glass inner weatherstrip, 114 in., purchase locally
2шт.
14
391768R91
DOOR ASSY, RH, Farmall tractor serial no. 9210 and below, International tractor serial no. 7855 and below
1шт.
14
395234R91
DOOR ASSY, RH, Farmall tractor serial no. 9211 and above, International tractor serial no. 7856 and above
1шт.
15
391752R1
SEAL, pressurizer blower short
2шт.
16
391753R1
SEAL, pressurizer blower long
2шт.
17
391503R92
BLOWER ASSY, pressurizer, consists of ref. 21, 22 & 109 thr 116
1шт.
18
391750R1
SEAL, air intake hood short
1шт.
19
391751R1
SEAL, air intake hood long
2шт.
20
391502R91
HOOD ASSY, air intake pressurizer
1шт.
262047C1
NUT, 1/4-20 spin lock flange
10шт.
21
391505R2
FILTER, pressurizer blower
1шт.
22
391504R91
SWITCH
blower toggle
1шт.
23
391787R1
GLASS, cab side window, for details see listing under tractor cab glass dimensions
2шт.
24
391789R1
STRIP, cab window glass weatherstrip, 100 in., purchase locally
2шт.
25
391788R1
STRIP, cab window glass molding, 100 in., purchase locally
2шт.
26
391195R91
WIPER MOTOR
MOTOR ASSY, wiper, for components, see list of parts under details of windshield wiper motor
1шт.
263-5658
SELF-TAP SCREW,Slotted Pan Hd, #10 x 1/2"
SCREW, 1/16 x 1/2 C-Z slt-pan-hd tap
1шт.
178378
LOCK WASHER,Ext-Int Tooth, #10
WASHER, no. 10 C-Z int, ext tooth lock
1шт.
27
391761R1
HOOK, RH door
1шт.
27
395012R1
HOOK, LH door
1шт.
112726
COTTER PIN,1/16" x 1/2"
PIN, SPLIT (COTTER), 1/16" x 1/2"
2шт.
446179
WASHER,#12
1/4 x 1/2 x .036
2шт.
28
392801R1
STRIKER PLATE
STRIKER, door
2шт.
134416
BRACKET
SCREW, 1/4-20 x 1/2 C-Z cr-rec-ov-hd mach
4шт.
29
392794R91
PLATE ASSY, door striker
2шт.
138604
LOCK WASHER,Ext Csk Tooth, 1/4"
WASHER, 1/4 C-Z ext-tooth lock
4шт.
30
391785R1
STRIP, front lower window glass molding, 30 in., purchase locally
2шт.
31
391535R1
GLASS
front lower window, for details see listing under tractor cab glass dimensions
2шт.
32
391786R1
STRIP, front lower window glass weatherstrip, purchase locally
2шт.
33
391495R91
PANEL ASSY, front filler
1шт.
120376
NUT,5/16"-18, G5
7шт.
326-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 8
SCREW, 5/16-18 x 3/4 C-Z slt-truss-hd mach
7шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
7шт.
619855R1
WASHER
11/32 x 3/4 x .16 ga C-Z
7шт.
34
SEAL, front filler, use 40 in. of seal from 12 foot length marked 391510R1
1шт.
35
391501R1
MAT
floor
1шт.
36
391500R1
LINER, floor mat
1шт.
37
391749R1
RETAINER, park lock lever seal
1шт.
85700996
SCREW,Phillips Drive, Pan HD, 1/4" - 20 x 1/2"
1/4-20 x 1/2 C-Z slt-truss-hd mach
4шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
4шт.
38
391748R1
SEAL, park lock lever
1шт.
39
391510R1
SEAL
front RH shroud, 30 in., long
1шт.
40
391499R91
SHROUD ASSY, front RH
1шт.
120376
NUT,5/16"-18, G5
8шт.
326-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 8
SCREW, 5/16-18 x 3/4 C-Z slt-truss-hd mach
8шт.
9635884
BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5
5/16-18 x 3/4 C-Z slt-truss-hd mach
8шт.
9635884
BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5
5/16-18 x 1 C-Z hex-hd cap
1шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
8шт.
668569R1
WASHER
11/32 x 1-1/2 x 11 ga C-Z
1шт.
41
391498R91
SHROUD ASSY, front LH
1шт.
41
392667R91
SHROUD ASSY, front LH, tractors w/all wheel drive
1шт.
120376
NUT,5/16"-18, G5
8шт.
326-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 8
SCREW, 5/16-18 x 3/4 C-Z slt-truss-hd mach
8шт.
9635884
BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5
5/16-18 x 1 C-Z hex-hd cap
1шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
8шт.
668569R1
WASHER
11/32 x 1-1/2 x 11 ga C-Z
1шт.
42
SEAL, LH shroud, use 30 in. of seal from 12 foot length marked 391150R1
1шт.
42
SEAL, LH shroud, tractors w/all wheel drive, use 8.3 in. of seal from 12 foot length marked, 391510R1
1шт.
43
392668R91
PANEL ASSY, front LH shroud
1шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
3шт.
470-12510
SCREW,Slotted Pan Hd, 1/4"-20 x 5/8"
1/4-20 x 5/8 C-Z pan-hd mach
3шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
3шт.
44
391150R1
EXTENSION, platform RH
1шт.
45
387907R2
PLATFORM, rear frame, will work for 379717R2, Farmall tractors
1шт.
46
391149R1
EXTENSION, platform LH
1шт.
47
391792R91
LADDER ASSY, cab mounting
1шт.
88692
BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 5, Full Thd
1шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
1шт.
446257
WASHER,3/4" x 1 3/4" x .148"
13/16 x 1-3/4 x .122 C-Z
1шт.
48
391151R11
SUPPORT ASSY, cab LH
1шт.
48
391152R11
SUPPORT ASSY, cab RH
1шт.
180183
BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5
SCREW, 1/2-13 x 2-1/4 znd hex-hd cap
4шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
4шт.
120384
WASHER,1/2"
LOCK, 1/2"
4шт.
49
391153R1
STRAP, cab support mounting
2шт.
50
21983H
SPRING
LH door check, will work for 392789R1
1шт.
17044R1
LOCK NUT,3/8"-16, GB
NUT, 3/8-16 cd-pltd ESNA stop
2шт.
446477
WASHER
7/16 x 1-3/8 x .064 C-Z
2шт.
51
392788R1
CHANNEL, LH door check spring
1шт.
52
392787R91
STRAP ASSY, LH door check
1шт.
53
391775R1
SEAL, upper LH door weather, 106 in. purchase locally
1шт.
54
395752R1
FRAME ASSY, LH door, will work for 391529R91 & 391531R91, Farmall tractor serial no. 9210 and below, International tractor serial no. 7855 and below
1шт.
54
395738R1
FRAME ASSY, LH door, Farmall tractor serial no. 9211 and above, International tractor serial no. 7856 and above
1шт.
55
391528R91
DOOR ASSY, LH, Farmall tractor serial no. 9210 and below, International tractor serial no. 7855 and below
1шт.
55
395235R91
DOOR ASSY, LH, Farmall tractor serial no. 9211 and above, International tractor serial no. 7856 and above
1шт.
56
391527R91
LATCH
ASSY, RH door
1шт.
157684
SCREW, 10-24 x 1/2 C-Z cr-rec-truss-hd mach
4шт.
57
392792R91
CABLE
ASSY, lower LH door
1шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
2шт.
120376
NUT,5/16"-18, G5
2шт.
125681
SCREW, 5/16-18 x 5/8 C-Z slt-truss-hd mach
2шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
1шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
2шт.
446179
WASHER,#12
1/4 x 1/2 x .036 C-Z
1шт.
446354
WASHER,1/4"
5/16 x 7/8 x .051 C-Z
2шт.
58
393237R91
HANDLE
ASSY, upper LH door
1шт.
436746
SCREW
10-32 x 1/4 C-Z slt-pan-hd mach
2шт.
138479
PLUG
WASHER, no. 10 ext-tooth lock
2шт.
59
391777R1
SEAL, lower LH door weather, 64 in., purchase locally
1шт.
60
395239R1
LATCH, flap, Farmall tractor serial no. 9211 and above, International tractor serial no. 7856 and above
1шт.
61
995170R2
REFLECTOR, fender red
2шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
4шт.
85700996
SCREW,Phillips Drive, Pan HD, 1/4" - 20 x 1/2"
1/4-20 x 1/2 C-Z slt-rd-hd mach
4шт.
174916
LOCK WASHER,Ext-Int Tooth, 1/4"
WASHER, 1/4 C-Z int, ext-tooth lock
4шт.
16599R1
WASHER, 17/32 x 5/8 x .036 C-Z
4шт.
62
391507R91
FENDER ASSY, LH
1шт.
62
391508R91
FENDER ASSY, RH
1шт.
120377
NUT,3/8" - 16, Gr 5
12шт.
180122
BOLT,Hex, 3/8" - 16 x 1", Gr 5
3/8-16 x 1 C-Z hex-hd cap
12шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
12шт.
469668R1
WASHER
13/32 x 3/4 x 16 ga C-Z
2шт.
63
SEAL, left rear panel, use 7.5 in. from 12 ft. length marked 391510R1
1шт.
63
SEAL, right rear panel, use 18.5 in. from 12 ft. length marked 391510R1
1шт.
64
398946R1
ANGLE, floor mat retainer
1шт.
65
397211R1
SEAL, shift lever panel
1шт.
66
392790R1
BRACKET, LH door hinge retainer
1шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
2шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
67
392793R1
PLUG, hoist nut
2шт.
68
392798R1
SEAL, hitch quadrant
1шт.
69
392799R1
RETAINER, hitch quadrant seal
1шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
8шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
8шт.
446179
WASHER,#12
1/4 x 1/2 x .036 C-Z
8шт.
70
392796R1
BLOCK, cab rear bumper
1шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
1шт.
133043
SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"
1/4-20 x 3/4 C-Z slt-rd-hd mach
1шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
1шт.
71
2751844R1
PRODUCT GRAPHIC
IH emblem, die casting, optional with 2751846R1
2шт.
155097
SCREW, 10-24 x 5/16 cr-rec-rd-hd mach
4шт.
71
2751846R1
EMBLEM CASE/IH
PRODUCT GRAPHIC, IH emblem, plastic, optional with 2751844R1
2шт.
385129R1
SCREW,Sl Rnd Hd, #10 - 16 x 3/8"
10-16 x 3/8 thd-cutting
4шт.
395-31022
WASHER,#10
13/64 x 15/32 x .049
4шт.
72
397220R1
SEAL, adhesive back
1шт.
73
391506R1
BAR, fender tie
1шт.
120377
NUT,3/8" - 16, Gr 5
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
469668R1
WASHER
13/32 x 3/4 x 16 ga C-Z
2шт.
74
391766R1
SEAL, rear lower window glass molding, 60 in., purchase locally
1шт.
75
391536R1
GLASS, rear lower window, for details see listing under tractor cab glass dimensions
1шт.
76
391767R1
SEAL, rear lower window glass inner weatherstrip, 60 in., purchase locally
1шт.
77
397669R1
PAD, non-slip
2шт.
326-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 8
SCREW, 5/16-18 x 3/4 C-Z slt-truss hd-mach
16шт.
9635884
BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5
5/16-18 x 1 C-Z hex-hd cap
2шт.
120376
NUT,5/16"-18, G5
16шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
16шт.
668569R1
WASHER
11/16 x 1-1/2 x 11 ga
2шт.
78
392786R1
SEAL, rear window rain gutter
1шт.
79
392785R1
GUTTER, rear window rain
1шт.
80
52747R1
SPACER, rear window regulator arm
2шт.
81
391511R1
KNOB
rear window regulating arm
2шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
2шт.
495-21031
WASHER,1/4"
5/16 x 3/4 x .051 C-Z
2шт.
82
392800R1
ARM, rear window regulator
2шт.
20821R1
RIVET, 1/4 x 5/8 C-Z truss-hd solid
2шт.
446179
WASHER,#12
1/4 x 1/2 x .036 C-Z
2шт.
83
391765R1
SEAL, rear window weather, 93 in., purchase locally
1шт.
84
391512R91
FRAME ASSY, rear window
1шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
5шт.
157733
SCREW, 1/4-20 x 3/4 C-Z cr-rec-truss-hd mach
5шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
5шт.
446179
WASHER,#12
1/4 x 1/2 x .036 C-Z
5шт.
85
391763R1
SEAL, rear window glass molding, 112 in., purchase locally
1шт.
86
391513R1
GLASS, rear window, for details see listing under tractor cab glass dimensions
1шт.
87
391764R1
SEAL, rear window glass innder weatherstrip, 112 in., purchase locally
1шт.
88
391762R91
WINDOW ASSY, rear
1шт.
89
395241R1
STRIKER, open door latch, Farmall tractor serial no. 9211 and above, International tractor serial no. 7856 and above
2шт.
157716
SCREW, 1/4-20 x 1/2 C-Z slt-truss-hd mach
4шт.
121753
WASHER
1/4 C-Z ext-tooth lock
4шт.
90
395240R1
BAR, stop, Farmall tractor serial no. 9211 and above, International tractor serial no. 7856 and above
1шт.
440-12510
SCREW,Cross Pan Hd, 1/4"-20 x 5/8"
1/4-20 x 5/8 C-Z slt-truss hd mach
2шт.
120735
NUT, 1/4-20 C-Z hex.
2шт.
NLS
NO LONGER SERVICED
1/4 C-Z ext-tooth lock
4шт.
91
395236R91
LATCH, door, Farmall tractor serial no. 9211 and above, International tractor serial no. 7856 and above
2шт.
92
395237R91
LATCH, spring, Farmall tractor serial no. 9211 and above, International tractor serial no. 7856 and above
2шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
4шт.
440-12510
SCREW,Cross Pan Hd, 1/4"-20 x 5/8"
1/4-20 x 5/8 C-Z slt-truss hd mach
4шт.
121753
WASHER
1/4 C-Z ext-tooth lock
8шт.
93
395238R1
ROD, pull, Farmall tractor serial no. 9211 and above, International tractor serial no. 7856 and above
2шт.
NLS
NO LONGER SERVICED
5/16-18 C-Z hex. jam
6шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
2шт.
94
397000R1
HOOK, coat
1шт.
120614
NUT,Hex, #10 - 32
NUT, #10-32
2шт.
133634
LINK ASSY.
10-32 x 1/2 C-Z flat-hd mach
2шт.
131183
WASHER, no. 10 C-Z light lock
2шт.
95
398856R1
MOLDING, cab support
2шт.
96
403997R1
BRACE ASSY, RH front
1шт.
180124
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5
SCREW, 3/8-16 x 1-1/4 hex-hd cap
2шт.
575807R1
WASHER
13/32 x 1 x 11 ga
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
120377
NUT,3/8" - 16, Gr 5
2шт.
L23059
SPACER, 3/4 x 13/16 x-strong pipe
1шт.
13-1052
BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5
SCREW, 5/8-11 x 3-1/4 hex-hd, replaces screw, 271563 in clutch hsg, Course Threads
1шт.
97
401539R1
BRACE ASSY, LH front
1шт.
180124
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5
SCREW, 3/8-16 x 1-1/4 hex-hd cap
2шт.
575807R1
WASHER
13/32 x 1 x 11 ga
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
120377
NUT,3/8" - 16, Gr 5
2шт.
12258R1
WASHER
21/32 x 1-1/4 x 11 ga
1шт.
375250R1
SCREW,Flg, 5/8" - 11 x 2 1/4"
5/8-11 x 2-1/4 12 pt-hd cap
1шт.
98
401538R91
MIRROR ASSY, rear view, optional w/527346R91, under details of rear view mirror, for components see list of parts
2шт.
120369
NUT,3/8"-24, G5
3/8-16 C-Z hex.
8шт.
120377
NUT,3/8" - 16, Gr 5
8шт.
98
527346R91
MIRROR ASSY, rear view, optional w/401538R91, for components see list of parts under details of rear view mirror
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
8шт.
120377
NUT,3/8" - 16, Gr 5
8шт.
99
401545R1
BRACE, rear
2шт.
180175
BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5
SCREW, 1/2-13 x 1-1/4 hex-hd cap
2шт.
20601R1
WASHER
17/32 x 1-1/4 x 11 ga
2шт.
120384
WASHER,1/2"
LOCK, 1/2"
2шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
2шт.
20203R1
BOLT,Hex, 5/8" - 11 x 3 7/8", Gr 5
SCREW, 5/8-11 x 3-7/8 hex-hd cap
2шт.
100
(Not used in this application)
1шт.
101
392795R91
PANEL ASSY, hyd manifold rear filler
1шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
7шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
7шт.
446179
WASHER,#12
1/4 x 1/2 x .036 C-Z
14шт.
102
(Not used in this application)
1шт.
103
(Not used in this application)
1шт.
104
432407
PLUG, 13/32 button
4шт.
105
391510R1
SEAL
rear panel
1шт.
106
401562R1
RETAINER ASSY, rear roof top
1шт.
107
401565R1
RETAINER ASSY, rear window top
1шт.
108
401676R1
TRAY, ash
1шт.
171716
SELF-TAP SCREW,Slotted Pan Hd, #10 x 3/8"
SCREW, 10-24 x 3/8 slt, pan, hd tap
2шт.
109
399352R91
WHEEL, blower
1шт.
110
399349R1
SHIM, motor mounting
1шт.
111
399353R1
MOTOR, pressurizer blower
1шт.
112
238747R91
OUTLET ASSY., air
1шт.
113
399347R1
GROMMET, rubber
1шт.
114
399345R1
CABLE ASSY, switch to harness connector
1шт.
115
399346R1
SCREW, 1/4-20 x 3/4 thumb
2шт.
116
399354R2
BLOWER AND CASE ASSY, pressurizer
1шт.
399348R1
BUMPER, rubber
1шт.
117
401591R1
HEADLINER, front roof
1шт.
118
401569R1
HEADLINER, rear window top
1шт.
119
401579R1
HEADLINER, rear roof
1шт.
120
401602R1
TRIM, snap
1шт.
263-5658
SELF-TAP SCREW,Slotted Pan Hd, #10 x 1/2"
SCREW, 10-16 x 1/2 slt, pan-hd tap
5шт.
121
401580R1
RETAINER, LH top front window
1шт.
121
401581R1
RETAINER, RH top front window
1шт.
171716
SELF-TAP SCREW,Slotted Pan Hd, #10 x 3/8"
SCREW, 10-24 x 3/8 slt, pan-hd tap
1шт.
122
401574R1
RETAINER, top side window LH
1шт.
122
401575R1
RETAINER, top side window RH
1шт.
171716
SELF-TAP SCREW,Slotted Pan Hd, #10 x 3/8"
SCREW, 10-24 x 3/8 slt, pan-hd tap
8шт.
123
401592R1
RETAINER, pressurizer outer
1шт.
124
SEAL, park lock, use 60 in. of seal from 12 ft. length marked 391510R91, used w/panel 403886R11
1шт.
125
392795R91
PANEL ASSY, hyd manifold rear filler
1шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
7шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
7шт.
126
402364R11
PLATE ASSY, rear adapter
1шт.
126
402364R11
PLATE ASSY, rear adapter
1шт.
120392
WASHER,1/4", SAE
9/32 x 5/8 x .051 C-Z
3шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
3шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
3шт.
127
SEAL, rear panel adapter, use 9.5 in. of seal from 12 ft. length marked 391510R1
1шт.
128
397652R1
SEAL, cab rear filler panel
1шт.
129
392791R1
HOOK, LH door holder bolt, Farmall tractor serial no. 25243 & below, International tractor serial no. 6098 & below
1шт.
623090R1
NUT, 1/2-13 cd, pltd wing
1шт.
623090R1
NUT, 1/2-13 cd, pltd wing
1шт.
130
583430R91
LATCH
PLUGER, RH door holder
1шт.
130
583431R91
CONNECTION,ELECTRIC
SOCKET, door holder plunger, Farmall tractor serial no. 9210 & below, International tractor serial no. 7855 and below
1шт.
120575
NUT, 1/4-20 C-Z hex.
2шт.
120585
SCREW,Sl Flat Hd, 1/4" - 20 x 5/8"
Slotted Flat Hd, 1/4"-20 x 5/8"
2шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
446179
WASHER,#12
1/4 x 1/2 x .036
2шт.
1017954R1
PLUG,Cap, .485" OD
lift hole
2шт.
1432499
PLUG, 11/32 button
10шт.
1432268
PLUG, 7/8 button
1шт.
Выбрано товаров: 294
