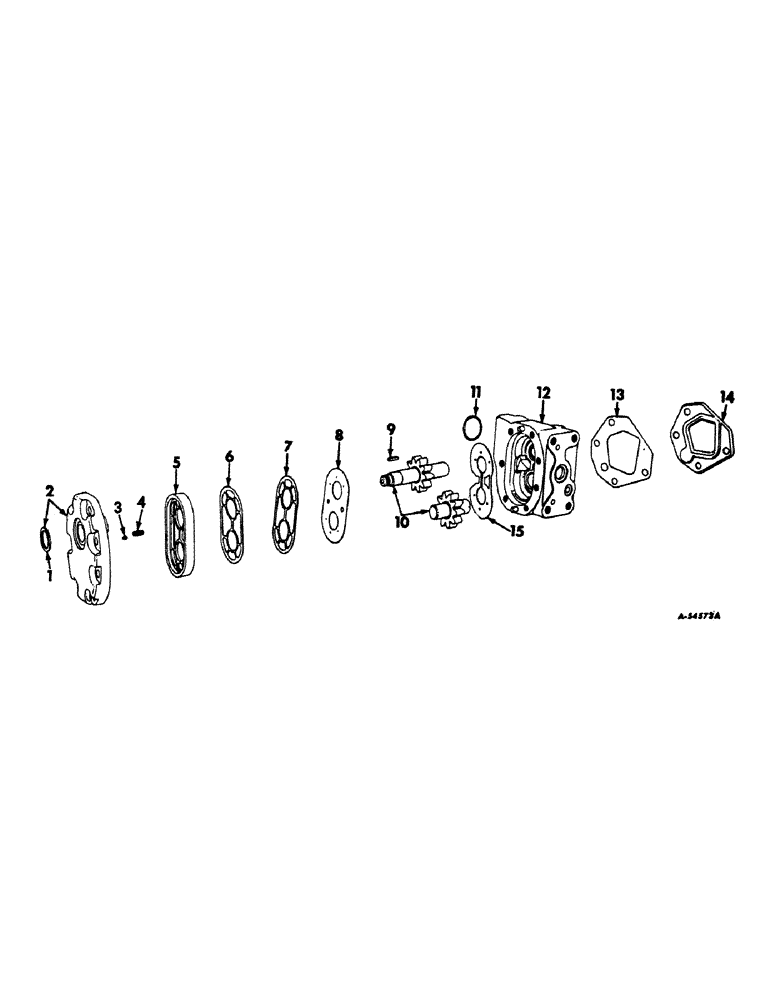

Запчасти Case IH 1206 (F-09) - HYDRAULIC SYSTEM, HYDRAULIC PUMP, CESSNA, 12 GPM (07) - HYDRAULIC SYSTEM

373964R93

HYDRAULIC PUMP

PUMP ASSY, hydraulic, 12 gpm, optional with 374483R95

1шт.

1

373244R91

SEAL

SEAL, pump shaft oil

1шт.

2

372431R91

COVER ASSY, pump, for service replacement, also order o-ring and gasket package, 373969R93

1шт.

3

16007R1

BALL

7/32 cr-stl

1шт.

4

383663R1

VALVE SPRING

SPRING, ball check

1шт.

5

SEAL, diaphragm, not serviced separately order o-ring and gasket package

1шт.

6

GASKET, protector, not serviced separately order o-ring and gasket package

1шт.

7

GASKET, back-up, not serviced separately order o-ring and gasket package

1шт.

8

DIAPHRAGM, pressure, not serviced separately order o-ring and gasket package

1шт.

9

370942R1

KEY

5/32 x 13/32 sq-parallel

1шт.

10

374845R91

KIT

PACKAGE, drive and driven gear, for service replacement, also order o-ring and gasket package, 373969R93

1шт.

10

1949296C1

REMAN-HYD PUMP

Reman For New PN 374845R91

1шт.

10

1949297C1

CORE-HYDRAULIC PUMP

Return Number

1шт.

11

252483R1

O-RING,-218, 70 Duro, 1.234" ID x .139" Thk

1-1/4 x 1-1/2 x 1/8, suction port

1шт.

12

373965R93

BODY W/BUSHINGS, pump, for service replacement, also order o-ring and gasket package, 373969R93

1шт.

13

GASKET, implement pump rear cover, not serviced separately order o-ring and gasket package

1шт.

14

371524R1

LARGE PLATE

COVER, implement pump rear

1шт.

15

DIAPHRAGM, body, not serviced separately order o-ring and gasket package

1шт.

373969R93

NO LONGER SERVICED

PACKAGE, hydraulic pump o-ring and gasket service, consists of (1) diaphragm 371555R2 (NSS), (1) diaphragm 373968R2 (NSS), (1) gasket 371558R1 (NSS), (1) gasket 371559R1 (NSS), (1) gasket 371560R1 (NSS), (1) oil seal 373244R91, (1) o-ring 252483R1, (1) o-

1шт.
