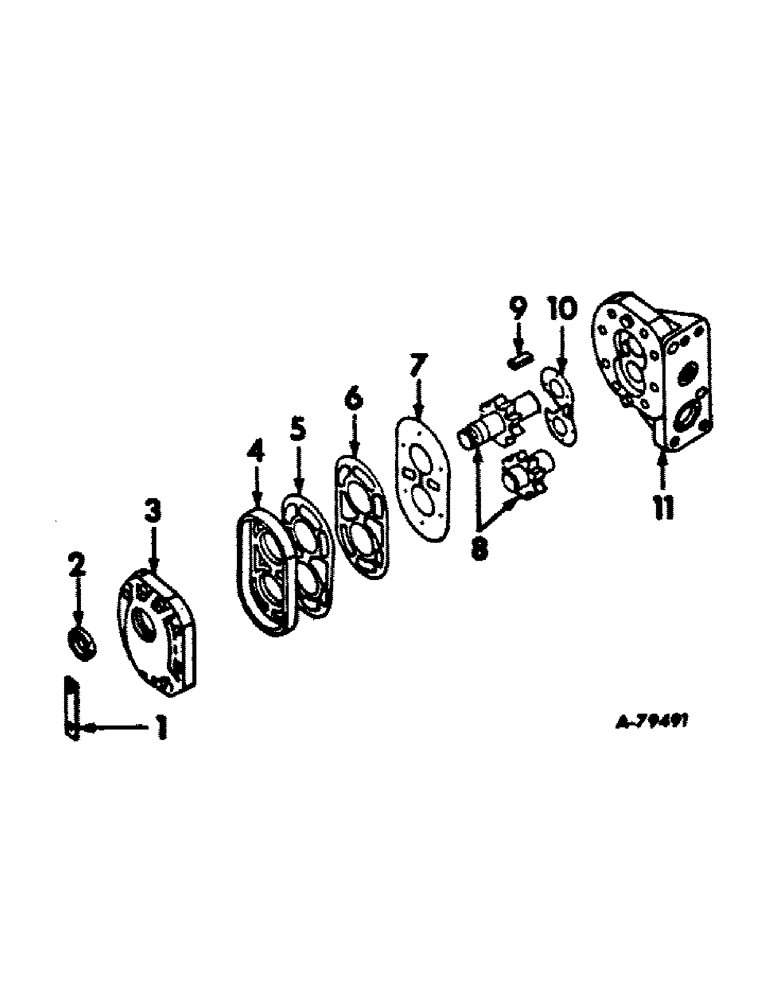

Запчасти Case IH 1206 (F-08) - HYDRAULIC SYSTEM, HYDRAULIC PUMP, CESSNA, 9 GPM (07) - HYDRAULIC SYSTEM

527397R91

HYDRAULIC PUMP

PUMP ASSY, hydraulic, will work for 391354R91

1шт.

1949304C1

REMAN-HYD PUMP

Reman for New PN 527397R91

1шт.

1949305C1

CORE-HYDRAULIC PUMP

Return Number

1шт.

391354R91

PUMP

ASSY, hydraulic

1шт.

1949304C1

REMAN-HYD PUMP

Reman for New PN 391354R91

1шт.

1949305C1

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

383538R1

PLATE

washer

1шт.

2

383534R91

OIL SEAL

pump drive shaft

1шт.

3

391355R91

COVER ASSY, pump, for service replacement also order o-ring & gasket package, 383530R91

1шт.

4

SEAL, diaphragm, not serviced separately order pkg, 383530R91

1шт.

5

GASKET, protector, not serviced separately order pkg, 383530R91

1шт.

7

DIAPHRAGM, pump body, not serviced separately order pkg, 383530R91

1шт.

8

383537R91

PACKAGE, drive & driven gear, for service replacement also order o-ring & gasket package, 383530R91

1шт.

9

383539R1

KEY

pump drive shaft

1шт.

10

DIAPHRAGM, pump cover, not serviced separately order pkg, 383530R91

1шт.

11

383535R1

BODY, pump, for service replacement also order o-ring & gasket package, 383530R91

1шт.

383530R91

PACKAGE

hydraulic pump o-ring & gasket, consists of (1) diaphragm 406005R1 (NSS), (1) diaphragm 383531R1 (NSS), (1) gasket 381155R1 (NSS), (1) gasket 371553R1 (NSS), (1) o-ring 350667R1, (1) o-ring 372821R1, (1) seal 383534R91

1шт.

391353R91

HYDRAULIC PUMP

PUMP ASSY, hydraulic

1шт.
