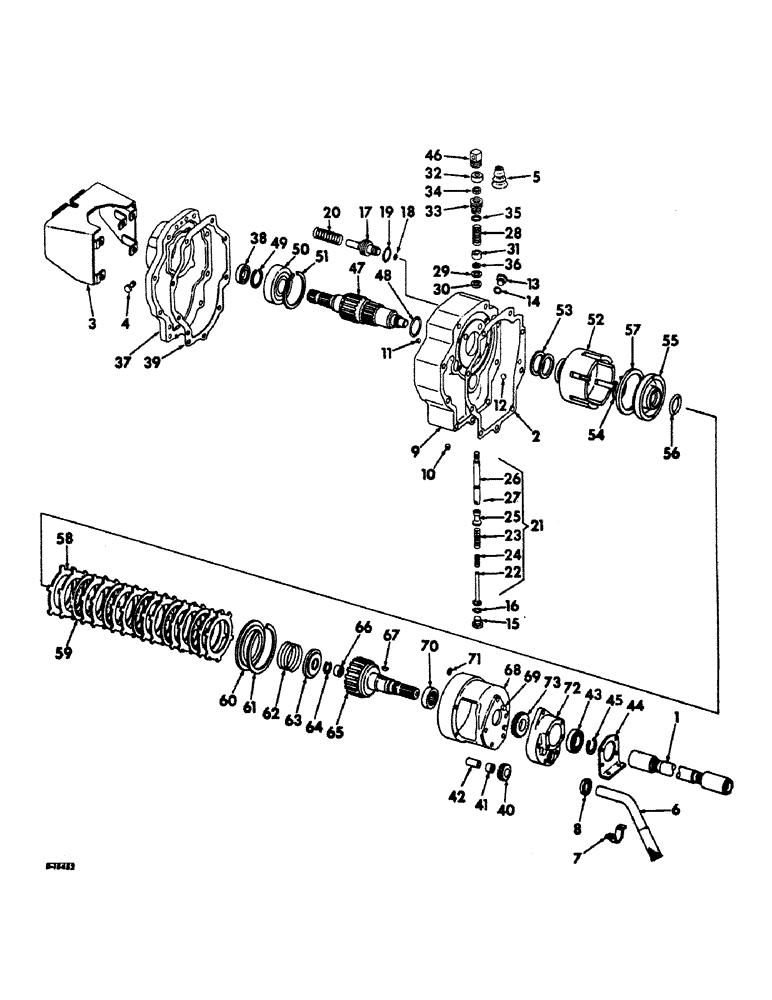

Запчасти Case IH 1206 (B-21) - POWER TRAIN, INDEPENDENT POWER TAKE-OFF, SINGLE SPEED (03) - POWER TRAIN

ATTACHMENT, power take-off, 1000 RPM, 390970R91

1шт.

1

381513R11

SHAFT

ASSY, PTO extension

1шт.

2

381467R1

GASKET

PTO housing

1шт.

3

401151R1

SHIELD

ASSY, independent PTO safety, will work for 392864R11

1шт.

4

390973R1

BOLT,Hex, 1/2" - 13 x 0.94"

BOLT, independent PTO safety shield

4шт.

5

393071R1

BOOT

control dust

1шт.

109084

NUT,1/4"-20, G5

2шт.

179795

TILLAGE BLADE

SCREW, 1/4-20 x 3/4 hex-hd cap

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

6

395120R1

TUBE

ASSY, suction, will work for 381521R21

1шт.

7

381525R1

SUPPORT TUBE,2.8" Length

SUPPORT, suction tube

1шт.

109084

NUT,1/4"-20, G5

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

SCREW, 1/4-20 x 3/4 hex-hd cap

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

8

381526R1

SEAL,25.3mm ID x 36.2mm OD x 4.78mm Thk

suction tube

1шт.

9

381462R11

HOUSING

w/ball, 16008R1, ball, 16020R1, & plug, 103867, independent PTO

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1шт.

10

444660

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG, 3/8-18 auto. sq-soc-hd pipe

1шт.

11

16008R1

BALL,1/4" Dia, Steel

1/4 grade 2 cr-stl

1шт.

12

16020R1

BALL

5/8 grade 2 cr-stl

1шт.

13

9410355

PLUG,Hex Hd, 3/8"-24 ORB

3/8-24 str thd-o-ring boss, gauge hole

1шт.

14

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk, Gauge hole plug

1шт.

15

9410360

PLUG

7/8-14 str thd-o-ring boss, valve stop

1шт.

16

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, valve stop plug

1шт.

17

381464R22

PISTON

ASSY, anti-creep brake

3шт.

18

370920R1

O-RING,1/2" ID

1/2 x 5/8 x 1/16, anti-creep brake piston

3шт.

19

293739R1

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

1-3/8 x 1-5/8 x 1/16, anti-creep brake piston

3шт.

20

381466R1

SPRING

anti-creep brake piston

3шт.

21

381468R93

VALVE

ASSY, control

1шт.

22

381469R12

GUIDE

ASSY, control valve

1шт.

23

381760R1

SPRING

control valve light

1шт.

24

381761R1

SPRING

control valve heavy

1шт.

25

381472R1

VALVE

control

1шт.

26

381473R2

STEM

control valve guide

1шт.

27

400518R1

PIN

control valve dowel, replaces 386193R1

1шт.

28

381762R1

VALVE SPRING

SPRING, control valve bumper

1шт.

29

384562R1

SHIM

bumper spring

1шт.

30

384564R1

SPACER

bumper spring pre-load sleeve

1шт.

31

381763R1

SEAT

SLEEVE, bumper spring pre-load

1шт.

32

384876R1

SPACER,12.7mm ID x 25.4mm OD x 14.22mm L

control valve stem

1шт.

33

381476R2

FITTING

control valve

1шт.

34

381477R91

SEAL,9.73mm ID x 22.33mm OD x 6.35mm Thk

control valve cover oil

1шт.

35

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1-3/64 x 1-7/32 x 7/64, control valve cover

1шт.

36

384875R1

WASHER

control valve stem

1шт.

37

401150R11

COVER

ASSY, independent PTO housing, replaces 390971R11

1шт.

19846R1

DOWEL,1/2" x 1 1/4"

PIN, 1/4 x 1-1/4 dowel

2шт.

179886

BOLT,Hex, 1/2" - 13 x 1 5/8", Gr 5

SCREW, 1/2-13 x 1-1/4 dowel

2шт.

187152

BOLT,Hex, 1/2" - 13 x 5", Gr 5

SCREW, 1/2-13 x 5 hex-hd cap

6шт.

38

381480R91

OIL SEAL

output shaft oil

1шт.

39

381481R1

GASKET

independent PTO cover & housing

1шт.

40

381500R1

PINION

GEAR, pump idler

1шт.

41

381501R91

NEEDLE BEARING

pump idler gear needle

1шт.

42

381502R1

SHAFT

pump idler gear

1шт.

43

ST568

BALL BEARING,35 mm ID x 62 mm OD x 14 mm

BEARING, drive shaft front

1шт.

44

381503R1

RETAINER

drive shaft front bearing

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

45

359141R1

RING, SNAP

RING, drive shaft front bearing snap

1шт.

46

384194R2

NUT,3/8" - 16

valve adjustment

1шт.

47

401149R1

SHAFT

independent PTO, will work for 390972R1, for service replacement order 405598R1

1шт.

47

405598R1

SHAFT

independent PTO, also order piston 405473R1 and ring 258400C1

1шт.

48

364145R1

O-RING,0.103" Thk x 2.112" ID, -138, Cl 5, 75 Duro

2-1/8 x 2-5/16 x 3/32, independent PTO shaft

1шт.

49

359894R1

RING, SNAP

RING, output shaft locating snap

1шт.

50

ST293

BALL BEARING,45mm ID x 100mm OD x 25mm W

BEARING, output shaft rear ball

1шт.

51

357201R1

RING

shaft rear brg retaining snap

1шт.

52

381484R1

DISC

CUP, clutch

1шт.

53

381485R1

RING,67.13mm ID x 72.21mm OD x 3.12mm Thk

clutch cup seal

2шт.

54

258400C1

SNAP RING,#187, Ext

Ring, Snap, , clutch cup #187, Ext

1шт.

55

405473R1

PISTON

clutch, replaces 381487R1

1шт.

56

558636R1

O-RING

1-7/8 x 2-1/4 x 3/16

1шт.

57

381488R1

RING,120.78mm ID x 134.34mm OD x 4.78mm Thk

SEAL, clutch piston oil

1шт.

58

381489R2

DISC

clutch driven

12шт.

59

381490R91

DISC

PLATE ASSY, clutch

5шт.

60

381491R1

RETAINER

clutch driven disc

1шт.

61

381492R1

CIRCLIP,M137.16 x 3.07mm Thk, Int

RING, clutch driven disc retainer snap

1шт.

62

381493R1

SPRING

clutch release

1шт.

63

381494R1

RETAINER

clutch release spring

1шт.

64

370504R1

RING

clutch release spring retainer snap

1шт.

65

389529R1

SHAFT

drive

1шт.

66

10026R

NEEDLE BEARING,0.875" ID x 1.1245" OD x 0.5"

BEARING, drive shaft front

1шт.

67

124545

WOODRUFF KEY,#5, 1/8" x 5/8", HT

1шт.

68

381496R11

CARRIER

ASSY, independent PTO clutch

1шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

4шт.

69

19879R1

SPLIT PIN/SAFETY PIN

PIN, 5/16 x 3/4 dowel

2шт.

70

359950R91

NEEDLE BEARING

BEARING, drive shaft rear

1шт.

71

375271R1

O-RING,0.426" ID x 0.07" Width

7/16 x 9/16 x 1/16, clutch pressure tube

1шт.

72

381498R1

HOUSING

pump

1шт.

NLS

NO LONGER SERVICED

2шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

73

381499R1

PINION

GEAR, pump driver

1шт.

374539R1

FLUID

SEALANT, loctite

1шт.
