Запчасти Case IH 1206 (B-20) - POWER TRAIN, REAR AXLE AND CONNECTIONS (03) - POWER TRAIN

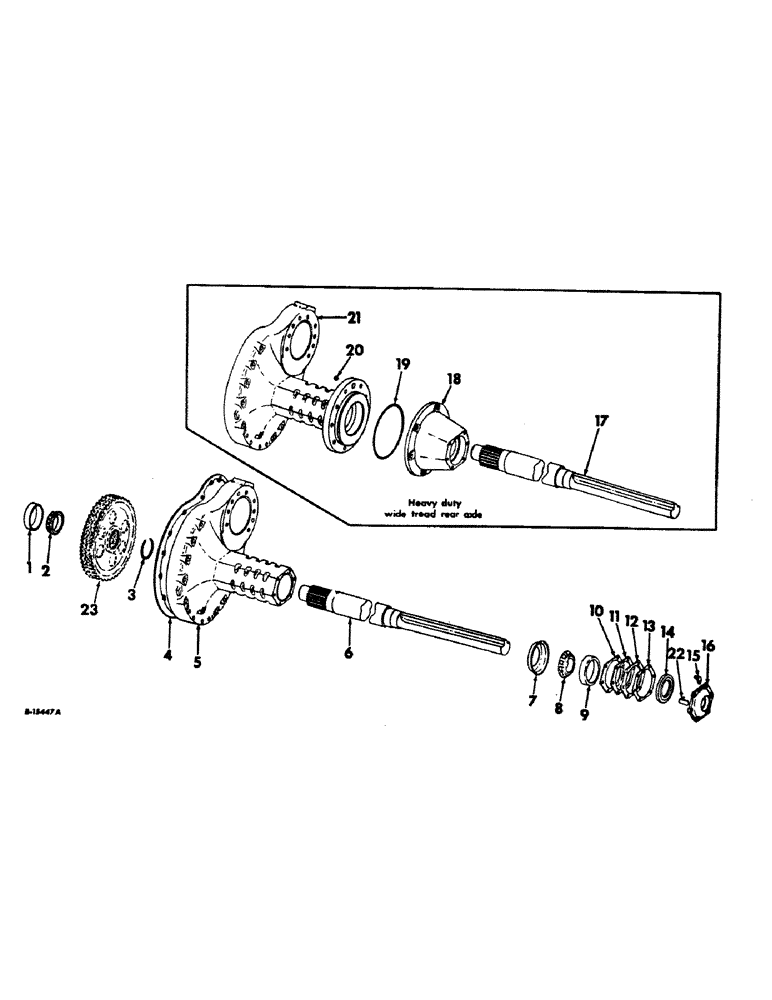

Схема запчастей Case IH 1206 - (B-20) - POWER TRAIN, REAR AXLE AND CONNECTIONS (03) - POWER TRAIN
3
20
17
12
14
10
15
7
6
23
21
16
11
19
22
18
13
8
2
5
1
9
4

Артикул

Название

Примечание

Количество

1

56040R1

BEARING CUP,2.5938" ID x 4.8125" OD x 1.71875"

rear axle inner cup

2шт.

2

391695R91

BEARING ASSY,2.5938" ID x 4.8125" OD x 1.71875, 1.4375"

rear axle inner cone

2шт.

3

380220R1

SNAP RING,#362, 3.423, Ext

RING, bull gear retainer snap

2шт.

4

380225R1

GASKET

rear axle carrier

2шт.

5

380224R2

AXLE CARRIER

CARRIER, rear axle

2шт.

444746

PLUG,Sq Hd, 1/2"-14 NPTF

1/2-14 auto sq-hd drain & filler

2шт.

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

SCREW, 5/8-11 x 3-1/2 hex-hd cap

28шт.

413-1068

BOLT,Hex, 5/8" - 11 x 4-1/4", Gr 5

5/8-11 x 4-1/4 hex-hd

8шт.

6

391692R2

SHAFT

AXLE, rear, Farmall tractors

2шт.

6

391693R1

AXLE, rear, International tractors

2шт.

6

392646R1

AXLE

rear, 100 inch tread

2шт.

6

392646R1

AXLE

rear, 100 inch tread, tractors w/dual rear wheels or wheatland

2шт.

6

392261R3

AXLE

rear, 118 in. maximum tread

2шт.

7

380223R1

DEFLECTOR

RETAINER, rear axle outer brg grease

2шт.

8

ST2107

TAPERED BEARING

BEARING ASSY, rear axle outer cone

2шт.

9

13249D

BEARING CUP,152.4127 mm OD x 39.7895 mm

rear axle outer cup

2шт.

10

380227R2

SHIM

rear axle carrier cap, light

4шт.

11

380228R2

SHIM

rear axle carrier cap, med

1шт.

12

380229R2

SHIM

rear axle carrier cap, HV

1шт.

13

380230R2

SHIM

rear axle carrier cap, extra light

1шт.

13

385158R2

SHIM

rear axle carrier cap .0025, .0035

1шт.

14

378077R91

OIL SEAL

rear axle carrier cap oil

2шт.

15

445684

PLUG

1/8-27 pipe, replaces fitting 109457, rear axle carrier cap

2шт.

16

391698R2

CAP, rear axle carrier

2шт.

529133R1

RING

rear axle carrier cap sealing

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

12шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

17

380806R1

AXLE, rear, 114 in. maximum tread

2шт.

18

384249R2

EXTENSION, rear axle carrier

2шт.

SCREW, 3/8-16 x 1 HEX-HD CAP

12шт.

19

286967R1

O-RING

9-1/4 x 9-1/2 x 1/8, rear axle carrier

2шт.

20

382857R1

PLUG, rear axle carrier

2шт.

21

382856R21

CARRIER

ASSEMBLY, rear axle

2шт.

444746

PLUG,Sq Hd, 1/2"-14 NPTF

1/2-14 automotive sq-hd drain and filler

2шт.

271612

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

SCREW, 3/4-10 x 2-1/4 hex-hd cap

12шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 3-1/2 hex-hd cap

28шт.

271571

SEALING RING COLLAR

5/8-11 x 4-1/4 hex-hd cap

8шт.

22

392346R1

BRACKET

rear wheel inner position gauge

1шт.

23

GEAR, bull, refer to differential listing this section

1шт.

Выбрано товаров: 39
