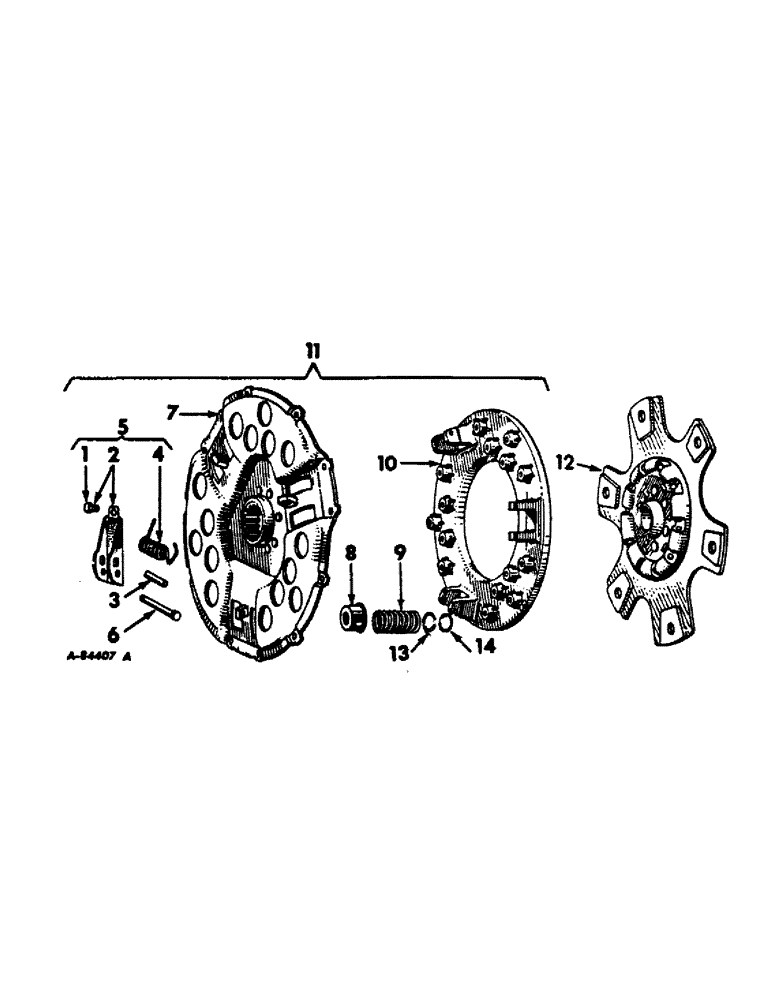

Запчасти Case IH 1206 (B-02) - POWER TRAIN, CLUTCH (03) - POWER TRAIN

1

163479R1

SCREW

SCREW, clutch lever adjusting

3шт.

2

390810R91

LEVER

LEVER ASSEMBLY, clutch

3шт.

3

146809R1

PIN

PIN, clutch lever

3шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

3шт.

120394

WASHER,3/8", SAE

WASHER, 11/32 x 13/16 x .065

3шт.

4

390809R1

SPRING

SPRING, clutch lever

3шт.

5

390808R91

KIT

PACKAGE, clutch lever assembly

6шт.

6

146810R1

AXLE PIN

PIN, lever pivot

3шт.

7

390806R91

PLATE

PLATE ASSEMBLY, clutch back

1шт.

8

353316R1

SPRING CUP

CUP, clutch pressure spring

12шт.

9

SPRING, clutch pressure, on orders for 145555R1 furnish 12 springs 172072R1, 12 washers 311291C1 and 12 retainers 311292C1

12шт.

9

172062R1

SPRING

SPRING, clutch pressure

12шт.

10

390807R1

PLATE ASSY.

PLATE, clutch pressure

1шт.

11

390254R92

CLUTCH PLATE

PLATE ASSY, clutch pressure

1шт.

11

120181C92R

REMAN-CLUTCH PLATE

Remanufactured 14", 17 Tooth Hub, 12 Spring Clutch Plate

1шт.

11

120181C92C

CORE-CLUTCH PLATE

Return Part Number, 14", 17 Tooth Hub, 12 Spring Clutch Plate

1шт.

11

389769A1

REMAN-CLUTCH KIT

1206, 21206, Kit Includes: 1 - 120181C92R Plate w/ 12 Springs, 1 - 393117R93R Disc, 1 - 69789C91 Pkg., 1 - 524598R91 Brg.

1шт.

11

389769A1C

CORE-CLUTCH KIT

Return Part Number

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

BOLT, 3/8-16 x 7/8 hex-hd cap

12шт.

12

393117R92

CLUTCH DISC

CLUTCH DISK DISC ASSY, clutch driven, Dyna life

1шт.

12

393117R93R

REMAN-CLUTCH DISC

Remanufactured, Clutch Disc - 14 in., 11Tooth hub, 6 paddle

1шт.

12

393117R93C

CORE-CLUTCH DISC

Return Part Number

1шт.

13

311291C1

INSULATING WASHER

WASHER, insulating

12шт.

14

311292C1

WASHER

RETAINER, washer

12шт.
