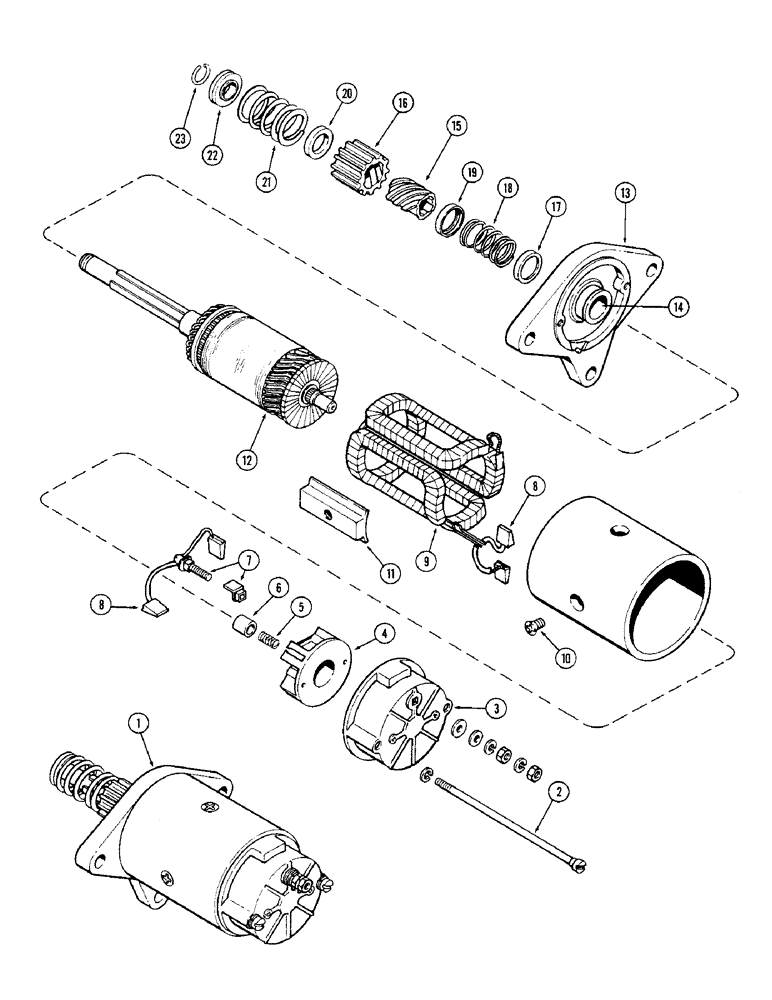

Запчасти Case IH LUCAS (14) - K944488 STARTER, LUCAS NUMBER 25679, MODEL 3M100

1

K944488

STARTING MOTOR

STARTER ASSY. - (12 volt)

1шт.

2

K963946

BOLT - thru

2шт.

K963935

BRACKET

FRAME ASSY. - commutator end

1шт.

3

NSS

NOT SOLD SEPARAT

FRAME

1шт.

4

NSS

NOT SOLD SEPARAT

HOLDER - brush

1шт.

5

NSS

NOT SOLD SEPARAT

SPRING - brush holder

1шт.

6

NSS

NOT SOLD SEPARAT

BUSHING - (Order K963937 kit)

1шт.

7

NSS

NOT SOLD SEPARAT

BRUSH ASSY.

1шт.

8

K963936

BRUSH ASSY.

BRUSH SET

1шт.

K963945

KIT - field coil (Less brushes)

1шт.

9

NSS

NOT SOLD SEPARAT

COIL - field

4шт.

10

NSS

NOT SOLD SEPARAT

SCREW - pole

4шт.

11

NSS

NOT SOLD SEPARAT

SHOE - pole

4шт.

12

K963944

ARMATURE

1шт.

K963943

FRAME ASSY. - drive end

1шт.

13

NSS

NOT SOLD SEPARAT

FRAME

1шт.

14

NSS

NOT SOLD SEPARAT

BUSHING - (Order K963937 kit)

1шт.

K962792

PINION

- drive and sleeve

1шт.

15

NSS

NOT SOLD SEPARAT

PINION - drive

1шт.

16

NSS

NOT SOLD SEPARAT

SLEEVE - drive pinion

1шт.

17

NSS

NOT SOLD SEPARAT

GUIDE - spring retaining

1шт.

18

NSS

NOT SOLD SEPARAT

SPRING - pinion retaining

1шт.

19

NSS

NOT SOLD SEPARAT

CUP - spring retaining

1шт.

20

NSS

NOT SOLD SEPARAT

WASHER - buffer

1шт.

21

K963826

SPRING

- main

1шт.

22

K963836

WASHER

COLLAR - thrust

1шт.

23

K963939

RING

- retainer

1шт.

K963937

KIT - bushing (Includes items 6 & 9)

1шт.

K963947

KIT - hardware (Includes all items illustrated but not listed or identified)

1шт.
