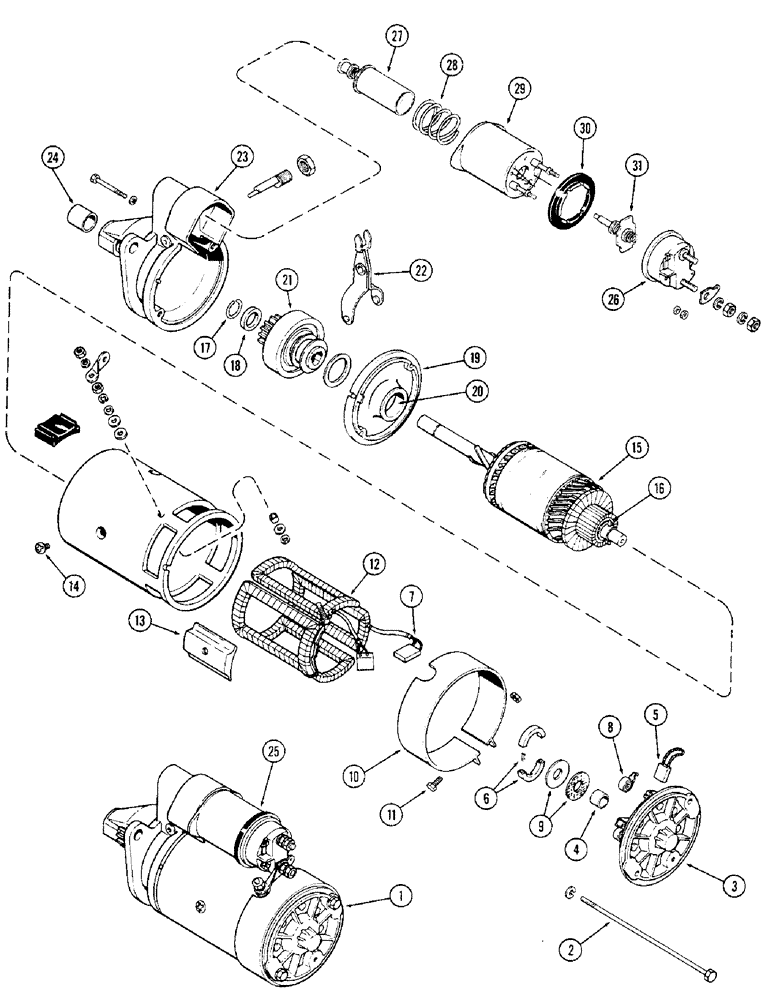

Запчасти Case IH LUCAS (10) - K913007 STARTER, LUCAS NUMBER 26215, MODEL M45G
№
Артикул
Название
Примечание
Количество
1
K913007
X
STARTER ASSY. - (12 volt)
1шт.
2
A47096
SCREW
BOLT - thru
2шт.
K963845
BASE
FRAME ASSY. - commutator end
1шт.
3
NSS
NOT SOLD SEPARAT
FRAME
1шт.
4
NSS
NOT SOLD SEPARAT
BUSHING - (Order K963931 kit)
1шт.
5
NSS
NOT SOLD SEPARAT
BRUSH - (Order K962799 kit)
2шт.
6
NSS
NOT SOLD SEPARAT
BRAKE
1шт.
7
K962799
BRUSH, COMMUTATOR
BRUSH SET
1шт.
K963798
SPRING
SET
1шт.
8
NSS
NOT SOLD SEPARAT
SPRING
2шт.
9
K963857
BRAKE
KIT - brake service
1шт.
A47081
COVER
KIT - cover band
1шт.
10
NSS
NOT SOLD SEPARAT
BAND - cover
1шт.
11
NSS
NOT SOLD SEPARAT
SCREW - cover band
1шт.
K963753
COIL ASSY.
KIT - field coil
1шт.
12
NSS
NOT SOLD SEPARAT
COIL - field
4шт.
13
NSS
NOT SOLD SEPARAT
SHOE - pole
4шт.
14
NSS
NOT SOLD SEPARAT
SCREW - pole
4шт.
K963790
ARMATURE
ASSY.
1шт.
15
NSS
NOT SOLD SEPARAT
ARMATURE
1шт.
16
NSS
NOT SOLD SEPARAT
PIN - shaft
1шт.
17
NSS
NOT SOLD SEPARAT
RING - jump
1шт.
18
NSS
NOT SOLD SEPARAT
COLLAR - thrust
1шт.
K964200
BRACKET
FRAME ASSY. - intermediate
1шт.
19
NSS
NOT SOLD SEPARAT
FRAME
1шт.
20
NSS
NOT SOLD SEPARAT
BUSHING - (Order K963931 kit)
1шт.
K963796
DRIVE
ASSY. - (Consists of ref. 17, 18 and 21)
1шт.
21
NSS
NOT SOLD SEPARAT
DRIVE
1шт.
22
K964201
LEVER - pinion engaging
1шт.
K963841
FRAME ASSY. - drive end
1шт.
23
NSS
NOT SOLD SEPARAT
FRAME
1шт.
24
NSS
NOT SOLD SEPARAT
BUSHING - (Order K963931 kit)
1шт.
25
K962776
SOLENOID
- starter
1шт.
26
K963799
BASE
ASSY.
1шт.
27
NSS
NOT SOLD SEPARAT
PLUNGER - solenoid
1шт.
28
NSS
NOT SOLD SEPARAT
SPRING - plunger
1шт.
29
NSS
NOT SOLD SEPARAT
CASE - solenoid
1шт.
30
NSS
NOT SOLD SEPARAT
SEAL - rubber
1шт.
31
NSS
NOT SOLD SEPARAT
PLATE - contact and spindle
1шт.
K962798
HARDWARE
KIT - hardware (Includes all items illustratred but not listed or identified)
1шт.
K963931
KIT
- bushing (Includes items 4, 20 & 24)
1шт.
Выбрано товаров: 41
