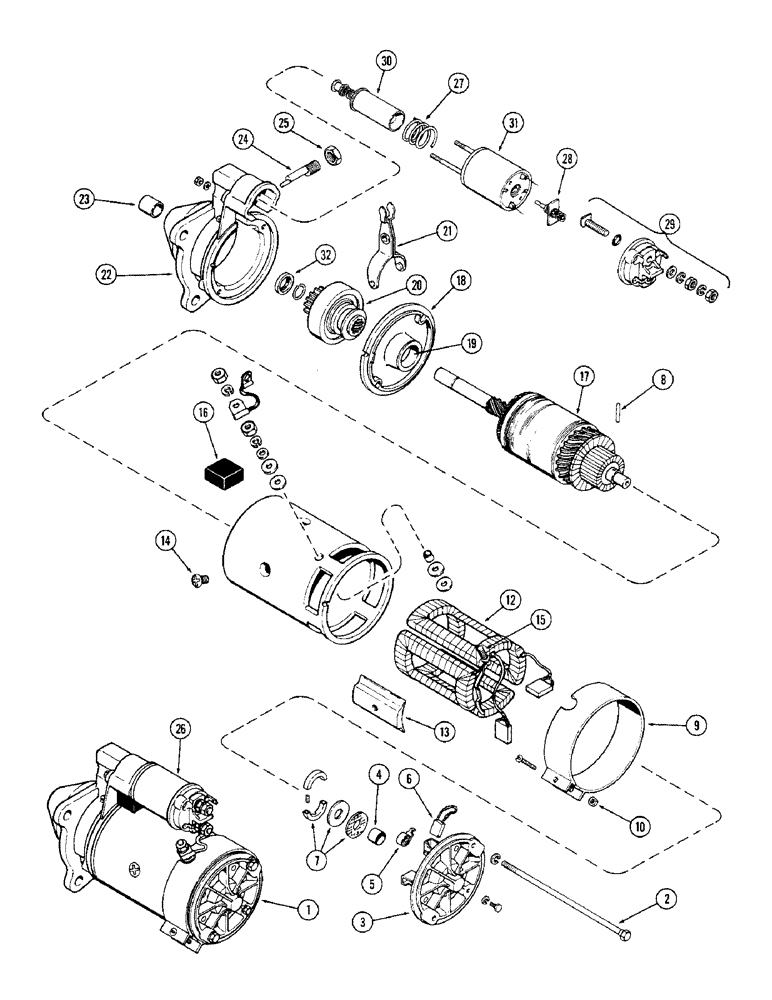

Запчасти Case IH LUCAS (08) - K89772 STARTER, LUCAS NUMBER 26278, MODEL M45G

1

K89772

STARTER MOTOR

STARTER ASSY. - (12 volt)

1шт.

2

A47096

SCREW

BOLT - thru

2шт.

K963845

BASE

FRAME ASSY. - commutator end

1шт.

3

NSS

NOT SOLD SEPARAT

FRAME

1шт.

4

NSS

NOT SOLD SEPARAT

BUSHING - (Order K963931 kit)

1шт.

5

K963798

SPRING

SET - brush tension

1шт.

6

K962799

BRUSH, COMMUTATOR

BRUSH SET

1шт.

7

K963857

BRAKE

KIT - brake service

1шт.

8

K964253

PIN

- brake shaft

1шт.

9

K964198

BAND - cover

1шт.

10

A47048

ARMATURE

NUT - cover band screw

1шт.

K963753

COIL ASSY.

KIT - field coil

1шт.

12

NSS

NOT SOLD SEPARAT

COIL - field

4шт.

13

NSS

NOT SOLD SEPARAT

SHOE - pole

4шт.

14

NSS

NOT SOLD SEPARAT

SCREW - pole

4шт.

15

K962800

TERMINAL CONNECTOR

TERMINAL - main

1шт.

16

K963890

GROMMET

- frame

1шт.

17

K963790

ARMATURE

1шт.

K964200

BRACKET

FRAME ASSY. - intermediate

1шт.

18

NSS

NOT SOLD SEPARAT

FRAME

1шт.

19

NSS

NOT SOLD SEPARAT

BUSHING - (Order K963931 kit)

1шт.

20

K963782

DRIVE

ASSY

1шт.

21

K963858

LEVER

- pinion engaging

1шт.

K964149

FRAME ASSY. - drive end

1шт.

22

NSS

NOT SOLD SEPARAT

FRAME

1шт.

23

NSS

NOT SOLD SEPARAT

BUSHING - (Order K963931 kit)

1шт.

24

K964256

BOLT - pivot

1шт.

25

K963928

NUT - pivot bolt

1шт.

26

K963825

SOLENOID

ASSY.

1шт.

27

A47095

SPRING

- plunger

1шт.

28

NSS

NOT SOLD SEPARAT

PLATE - contact and spindle

1шт.

29

K964230

BASE

ASSY.

1шт.

30

NSS

NOT SOLD SEPARAT

PLUNGER - solenoid

1шт.

31

NSS

NOT SOLD SEPARAT

CASE - solenoid

1шт.

32

K963851

COLLAR

- thrust

1шт.

K962798

HARDWARE

KIT - hardware (Includes all items illustrated but not listed or identified)

1шт.

K963931

KIT

- bushing (Includes items 4, 19 & 23)

1шт.
