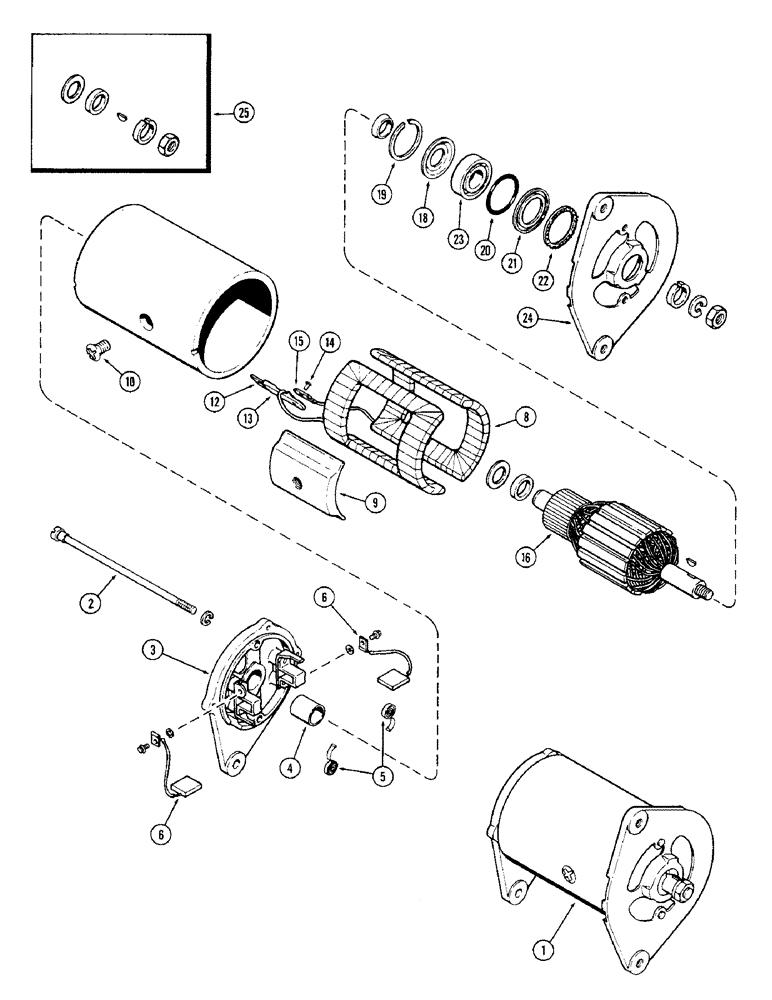

Запчасти Case IH LUCAS (04) - K908882 GENERATOR, LUCAS NUMBER 22791, MODEL C40A

1

K908882

GENERATOR

ASSY. - (12 volt)

1шт.

2

K962791

BOLT - thru

2шт.

A47092

FRAME ASSY. - commutator end

1шт.

3

NSS

NOT SOLD SEPARAT

FRAME - commutator end

1шт.

4

K962790

BUSHING - armature shaft, commutator end

1шт.

5

K962788

SPRING SET - brush tension

1шт.

6

K962787

BRUSH ASSY.

1шт.

K963780

COIL

KIT - field coil

1шт.

8

NSS

NOT SOLD SEPARAT

COIL - field

2шт.

9

NSS

NOT SOLD SEPARAT

SHOE - pole

2шт.

10

NSS

NOT SOLD SEPARAT

SCREW - pole

2шт.

K963774

KIT - terminal

1шт.

12

NSS

NOT SOLD SEPARAT

BLADE - terminal

1шт.

13

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

14

NSS

NOT SOLD SEPARAT

EYELET

1шт.

15

NSS

NOT SOLD SEPARAT

RIVET

1шт.

16

K963775

ARMATURE

1шт.

K963769

KIT

- bearing retention, drive end

1шт.

18

NSS

NOT SOLD SEPARAT

PLATE - bearing retaing

1шт.

19

NSS

NOT SOLD SEPARAT

RING - snap, bearing kit retaining

1шт.

20

NSS

NOT SOLD SEPARAT

RING - pressure

1шт.

21

NSS

NOT SOLD SEPARAT

RETAINER - felt seal

1шт.

22

NSS

NOT SOLD SEPARAT

SEAL - felt

1шт.

23

A47109

BEARING - armature shaft, drive end

1шт.

24

K963839

FRAME - drive end

1шт.

25

K963868

KIT

- hardware

1шт.
