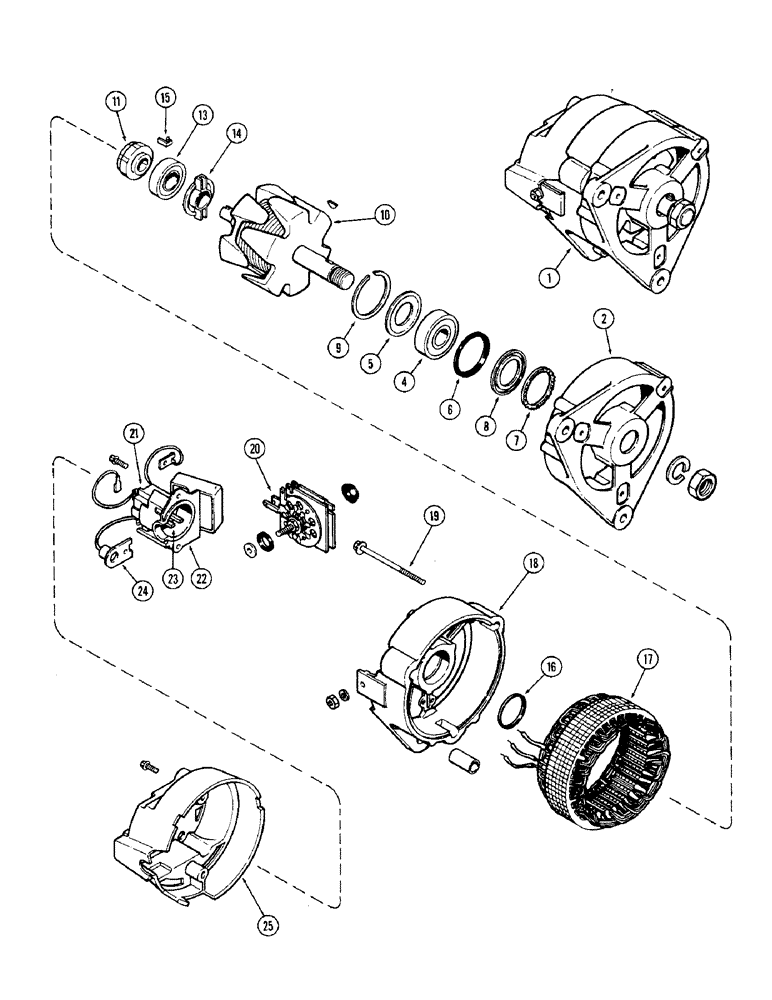

Запчасти Case IH LUCAS (02) - K964150 ALTERNATOR, LUCAS NUMBER 23774, MODEL 17ACR

1

K964150

ALTERNATOR

ASSY. - (12 volt, 34 amps)

1шт.

2

K963919

BRACKET

FRAME ASSY. - drive end

1шт.

K963778

BEARING ASSY

BEARING KIT - drive end

1шт.

4

NSS

NOT SOLD SEPARAT

BEARING

1шт.

5

NSS

NOT SOLD SEPARAT

PLATE

1шт.

6

NSS

NOT SOLD SEPARAT

RING - pressure

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - felt

1шт.

8

NSS

NOT SOLD SEPARAT

RETAINER - felt seal

1шт.

9

NSS

NOT SOLD SEPARAT

RING - snap, bearing kit retaining

1шт.

10

A47085

ROTOR ASSY.

1шт.

11

K964178

SLIP RING

RING - slip

1шт.

K963779

KIT

BEARING KIT - slip ring end

1шт.

13

NSS

NOT SOLD SEPARAT

BEARING

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - dust (Black)

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL - dust (White)

1шт.

16

NSS

NOT SOLD SEPARAT

RING - pressure

1шт.

17

A47093

NO LONGER SERVICED

STATOR

1шт.

18

K964180

BRACKET

FRAME - slip ring end

1шт.

19

K964181

BOLT (MACHINE)

BOLT - thru

2шт.

20

K962783

RECTIFIER

ASSY.

1шт.

21

K962774

REGULATOR

ASSY.

1шт.

22

K963772

BOX

HOLDER ASSY. - brush

1шт.

23

K964151

BRUSH, COMMUTATOR

BRUSH SET

1шт.

24

K964182

PROTECTOR

DIODE - isolation (Surge protection)

1шт.

25

A47083

REAR COVER

COVER - drive end

1шт.

K963927

KIT

HARDWARE KIT - (Includes all items illustrated but not listed or identified)

1шт.
