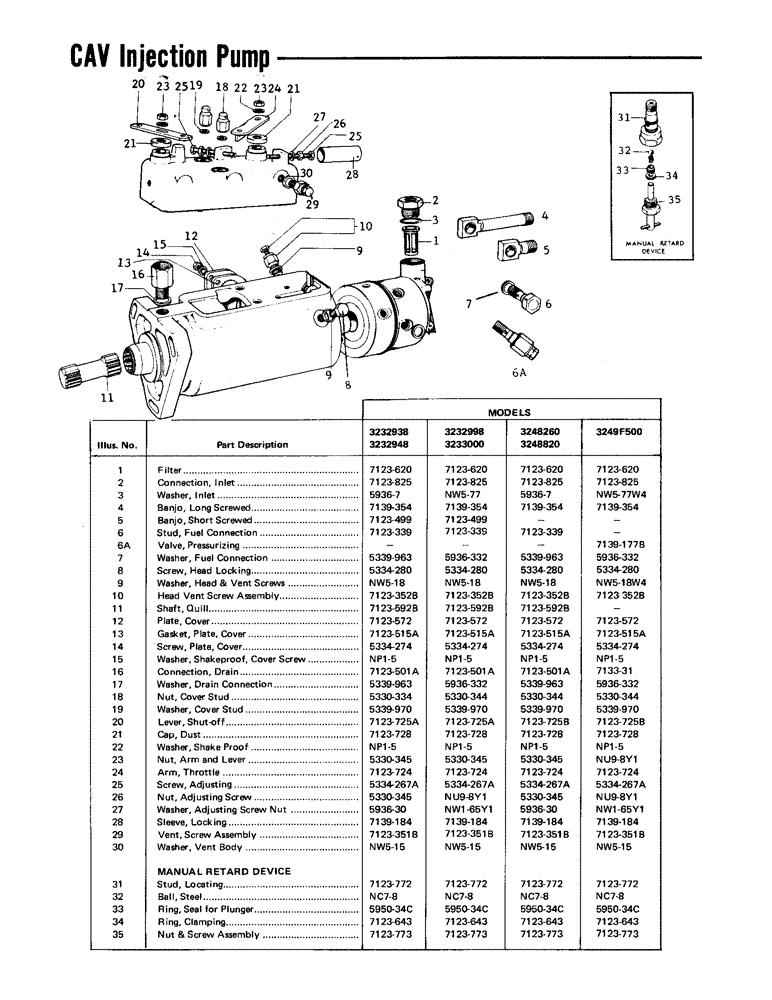

Запчасти Case IH CAV (18) - CAV INJECTION PUMP, 3232938, 3232948, 3232998, 3233000, 3248260, 328820, 3249F500

1

7123-620

FILTER

1шт.

2

7123-825

CONNECTION, inlet

1шт.

3

5936-7

WASHER, inlet, 3232938, 3232948

1шт.

3

NW5-77

WASHER, inlet, 3232998, 3233000

1шт.

3

5936-7

WASHER, inlet, 3248260, 3248820

1шт.

3

NW5-77W4

WASHER, inlet, 3249F500

1шт.

4

7139-354

BANJO, long screwed

1шт.

5

7123-499

BANJO, short screwed, 3232938, 3232948, 3232998, 3233000

1шт.

6

7123-339

STUD, fuel connection, 3232938, 3232948, 3232998, 3233000, 3248260, 3248820

1шт.

6

NSS

NOT SOLD SEPARAT

STUD, fuel connection, 3249F500 3248820

1шт.

6a

7139-177B

VALVE, pressurizing, 3249F500

1шт.

7

5339-963

WASHER, fuel connection, 3232938, 3232948, 3248260, 3248820

1шт.

7

5936-332

WASHER, fuel connection, 3232998, 3233000, 3249F500

1шт.

8

5334-280

SCREW, head locking

1шт.

9

NW5-18

WASHER, head & vent screws, 3232938, 3232948, 3232998, 3233000, 3248260, 3248820

1шт.

9

NW5-18W4

WASHER, head & vent screws, 3249F500

1шт.

10

7123-352B

HEAV VENT SCREW ASSEMBLY

1шт.

11

7123-592B

SHAFT, quill, 3232938, 3232948, 3232998, 3233000, 3248260, 3248820

1шт.

11

NSS

NOT SOLD SEPARAT

SHAFT, quill, 3249F500

1шт.

12

7123-572

PLATE, cover

1шт.

13

7123-515A

GASKET, plate, cover

1шт.

14

5334-274

SCREW, plate, cover

1шт.

15

NP1-5

WASHER, Shakeproof, cover screw

1шт.

16

7123-501A

CONNECTION, drain, 3232938, 3232948, 3232998, 3233000, 3248260, 3248820

1шт.

16

7133-31

CONNECTIN, drain, 3249F500

1шт.

17

5339-963

WASHER, drain connection, 3232938, 3232948, 3248260, 3248820

1шт.

17

5936-332

WASHER, drain connection, 3232998, 3233000, 3249F500

1шт.

18

5330-334

NUT, cover stud

1шт.

19

5339-970

WASHER, cover stud

1шт.

20

7123-725A

LEVER, shut-off, 3232938, 3232948, 3232998, 3233000

1шт.

20

7123-725B

LEVER, shut-off, 3248260, 3248820, 3249F500

1шт.

21

7123-728

CAP, dust

1шт.

22

NP1-5

WASHER, Shakeproof

1шт.

23

5330-345

NUT, arm and lever, 3232938, 3232948, 3232998, 3233000, 3248260, 3248820

1шт.

23

NU9-8Y1

NUT, arm and lever, 3249F500

1шт.

24

7123-724

ARM, throttle

1шт.

25

5334-267A

SCREW, adjusting

1шт.

26

5330-345

NUT, adjusting screw, 3232938, 3232948, 3248260, 3248820

1шт.

26

NU9-8Y1

NUT, adjusting screw, 3232998, 3233000, 3249F500

1шт.

27

5936-30

WASHER, adjusting screw nut, 3232938, 3232948, 3248260, 3248820

1шт.

27

NW1-65Y1

WASHER, adjusting screw nut, 3232998, 3233000, 3249F500

1шт.

28

7139-184

SLEEVE, locking

1шт.

29

7123-351B

VENT, screw assembly

1шт.

30

NW5-15

WASHER, vent body

1шт.

31

7123-772

STUD, locating, manual retard device

1шт.

32

NC7-8

BALL, steel, manual retard device

1шт.

33

5950-34C

RING, seal for plunger, manual retard device

1шт.

34

7123-643

RING, clamping, manual retard device

1шт.

35

7123-773

NUT & SCREW ASSEMBLY, manual retard device

1шт.
