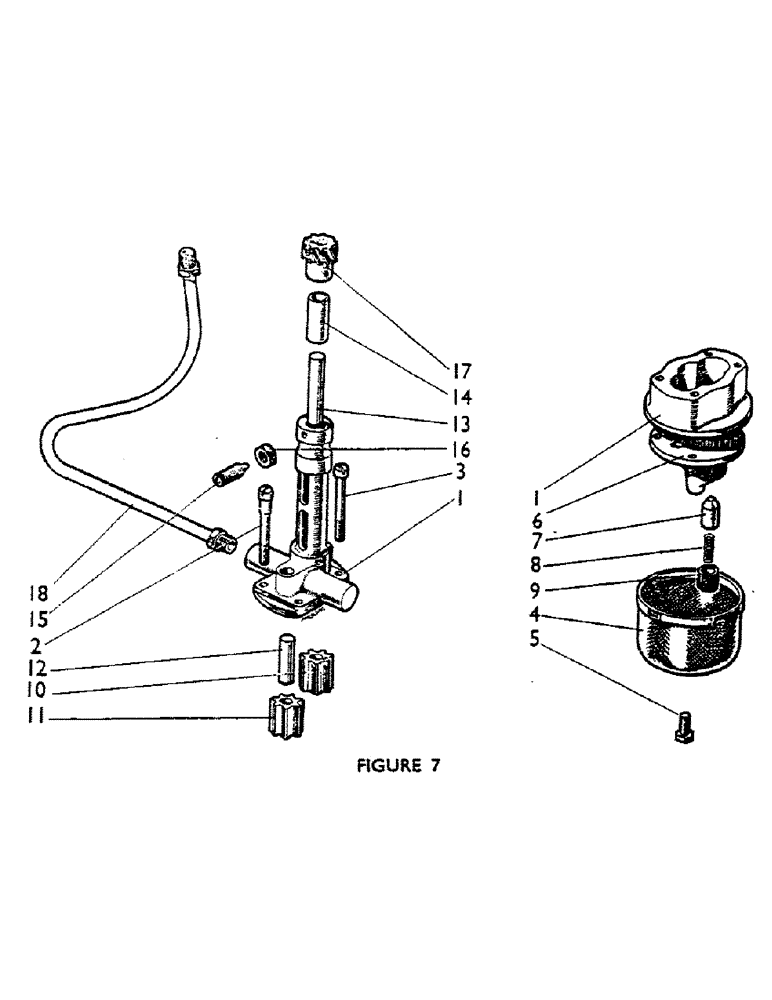

Запчасти Case IH AD4/47 (13S) - OIL PUMP, AD4/47

K904217

PUMP, ENGINE OIL

OIL PUMP (Complete) (Identical to K961285) (Number change only)

1шт.

1

K961009

HOUSING

BRACKET AND GEAR HOUSING, spindle and bush

1шт.

2

K902061

STEP BOLT

BOLT, 1/4 UNC x 2-1/8 in., special fitting

2шт.

3

K600011

BOLT

1/4 UNC x 2-1/8 in.

2шт.

K607000

NUT

1/4 UNC

4шт.

K19480

SPRING WASHER

SPRING WASHER, 1/4 in.

4шт.

4

K12013

FILTER

GAUZE

1шт.

5

K602701

BOLT

SETSCREW, 1/4 UNC x 1/2 in.

1шт.

K19480

SPRING WASHER

SPRING WASHER, 1/4 in.

1шт.

K900752

VALVE

RELIEF VALVE ASSEMBLY, Includes: Ref. 6 - 9

1шт.

6

K900753

NO LONGER SERVICED

COVER - pump body

1шт.

7

K67461

PLUNGER

1шт.

8

K12961

SPRING

1шт.

9

K30013

ADJUSTER

SCREW - adjusting

1шт.

10

K902058

PINION

DRIVING ROTOR

1шт.

11

K902059

PINION

DRIVEN ROTOR

1шт.

K19604

KEY

Woodruff no. 405

2шт.

12

K902060

SPINDLE

- driven rotor, part of K961009

1шт.

13

K910173

SPINDLE

DRIVING SPINDLE

1шт.

14

K30016

BUSHING

BUSH, part of K916009

1шт.

15

K900748

SCREW

LOCATING SCREW, 7/16 UNC

1шт.

16

K607516

NUT

CAPPED NUT, 7/16 UNC (Replaces K607053)

1шт.

K14674

WASHER

COPPER WASHER, 7/16 in. (Replaces K626610)

1шт.

17

K902051

GEAR

SPIRAL PINION

1шт.

18

K904180

PIPE

OIL PIPE - pump to cylinder block

1шт.
