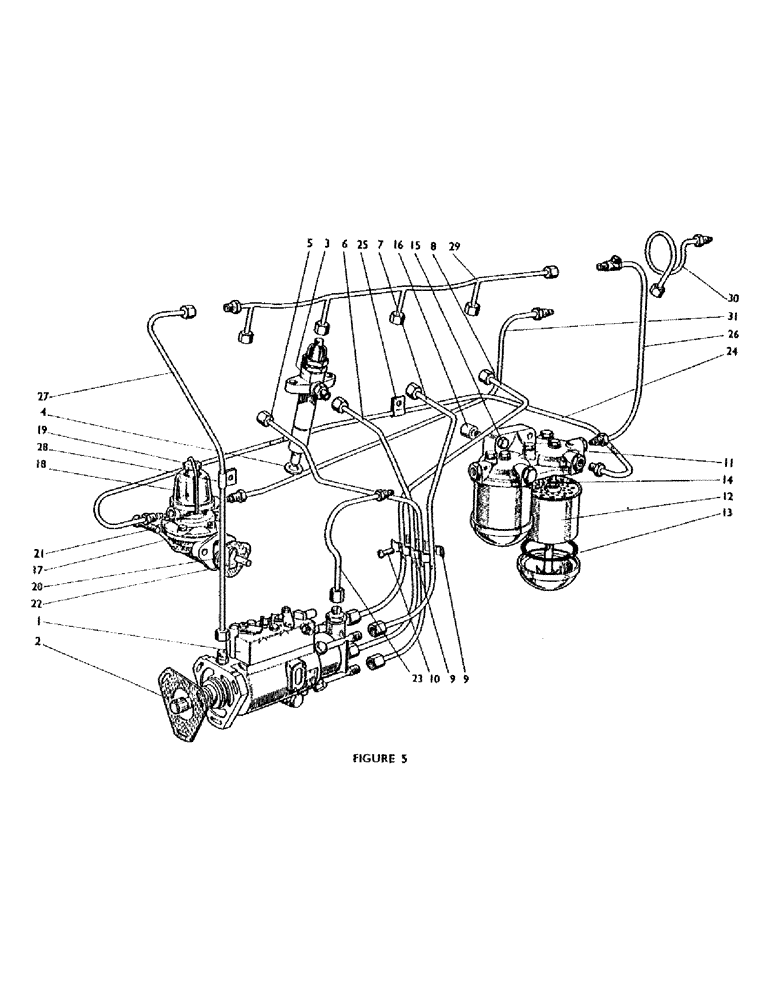

Запчасти Case IH AD4/47 (10S) - INJECTION PUMP AND FUEL SYSTEM, AD4/47

1

K910521

X

DISTRIBUTOR INJECTION PUMP (CAV 3248260)

1шт.

2

K68349

GASKET

1шт.

9635082

NUT,5/16" - 18, Gr 5

3шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in.

3шт.

K19471

WASHER

5/16 in.

3шт.

3

K910530

NOZZLE

INJECTOR, Includes: Ref. 3A - 4

4шт.

3a

K904261

NOZZLE CAP

HOLDER (CAV BKBL 97S5152)

1шт.

3b

K910080

NOZZLE

(CAV BDLL 140S6417)

1шт.

4

K901092

WASHER

COPPER WASHER

1шт.

5

K902722

PIPE

FUEL PIPE - injection pump to no. 1 cylinder

1шт.

6

K902724

PIPE

FUEL PIPE - injection pump to no. 2 cylinder

1шт.

7

K904275

NO LONGER SERVICED

FUEL PIPE - injection pump to no. 3 cylinder

1шт.

8

K904277

NO LONGER SERVICED

FUEL PIPE - injection pump to no. 4 cylinder

1шт.

K900845

NUT

UNION NUT, injector pipes

8шт.

K900846

FERRULE

OLIVE, injector pipes

8шт.

9

K900844

CLAMP

CLIP, injector pipes

2шт.

10

K12217

SCREW,0.185" x 5/8"

2 BA x 5/8 in., injector pipes

2шт.

K11109

NUT

2 BA, injector pipes

2шт.

K19488

SPRING WASHER

SPRING WASHER, 3/16 in., injector pipes

2шт.

11

K906708

FILTER

FUEL FILTER (Complete), Includes: Ref. 12 - 14

1шт.

12

K906911

ELEMENT (CAV), alternatives

2шт.

12

K915319

ELEMENT

(AC-Delco), alternatives

2шт.

13

K960936

RING

SEALING WASHER (Supplied with element)

4шт.

14

K960937

O-RING

"O" RING, 1/2 in. int. dia.

2шт.

15

K600406

BOLT

3/8 UNC x 1-3/4 in., filter to cylinder head

2шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in., filter to cylinder head

2шт.

16

K627042

BUSHING

DISTANCE PIECE, filter to cylinder head

2шт.

17

K909944

PUMP

FUEL FEED PUMP (AC-Delco E/FP63154/A), Includes: Ref. 17A - 19A

1шт.

17a

K961675

FILTER SCREEN

FILTER GAUZE

1шт.

18

K66442

FILTER BOWL

1шт.

18a

K961674

SEAL

GASKET

1шт.

19

K961676

BAIL

STIRRUP AND SCREW

1шт.

19a

K911917

DIAPHRAGM

1шт.

20

K902136

GASKET

feed pump to cylinder block

1шт.

21

K602807

SCREW

SETSCREW, 5/16 UNC x 1-1/4 in., feed pump to cylinder block

2шт.

K14988

WASHER

COPPER ASBESTOS WASHER, 5/16 in., feed pump to cylinder block

2шт.

K19471

WASHER

5/16 in., feed pump to cylinder block

2шт.

22

K902068

PUSH ROD

- feed pump

1шт.

23

K902731

PIPE

FUEL PIPE - filter to injection pump

1шт.

24

K909952

PIPE

FUEL PIPE - feed, Serial Range: pump-filter

1шт.

25

K621603

CLIP

- fuel pipe to manifold stud

1шт.

26

K907037

FITTING

FUEL PIPE -, Serial Range: leak-off-filters

1шт.

27

K907035

PIPE

FUEL PIPE - injection pump leak-off

1шт.

28

K621610

CLIP

- fuel pipe to exhaust manifold stud

1шт.

29

K904250

INJECTION PIPE

LEAK-OFF PIPE

1шт.

30

K915671

PIPE

FUEL PIPE -, Serial Range: leak-off-tank

1шт.

31

K915673

PIPE

- tank to feed pump

1шт.

K622061

VALVE

FUEL TAP, alternative equipment

1шт.

K626024

FITTING

UNION, 1/2 UNF, alternative equipment

1шт.

K626950

WASHER

FIBRE WASHER, 1/2 in., alternative equipment

2шт.

K19501

WASHER

FIBRE WASHER, 1/2 in., alternative equipment

1шт.

K626951

WASHER

FIBRE WASHER, 7/16 in. O.D., alternative equipment

1шт.
