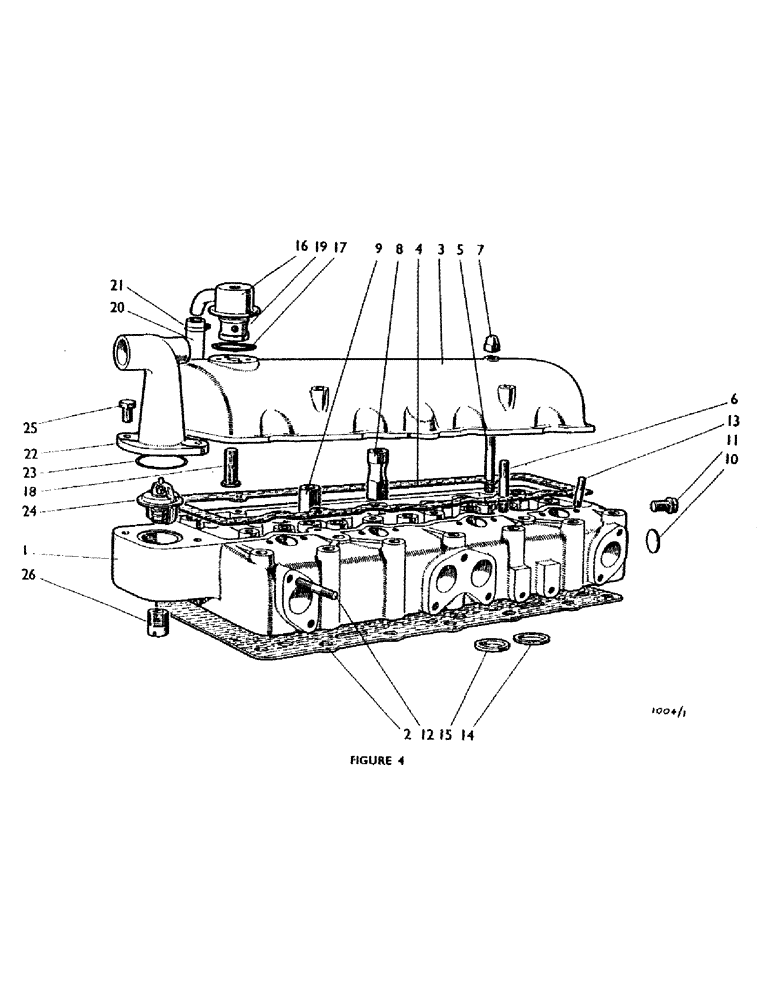

Запчасти Case IH AD4/47 (08S) - CYLINDER HEAD, AD4/47

1

K961010

NO LONGER SERVICED

CYLINDER HEAD (With valve inserts and plugs)

1шт.

2

K902040

GASKET

-, Serial Range: head-block

1шт.

3

K920678

COVER

- cylinder head (Supersedes K906975)

1шт.

4

K905229

GASKET,3.97mm Thk

- cylinder head cover

1шт.

5

K608118

STUD

5/16 UNC x 3-7/16 in.

2шт.

6

K608119

STUD

5/16 UNC x 2-13/16 in.

2шт.

K14988

WASHER

COPPER - asbestos washer

4шт.

7

K607252

NUT

DOMED NUT, 5/16 UNC

4шт.

K617581

NUT

1/2 UNF, special, cylinder, Serial Range: head-block

3шт.

K600870

BOLT

1/2 UNC x 4-1/4 in. special, cylinder, Serial Range: head-block

7шт.

8

K906536

NUT

ELONGATED NUT, 1/2 UNF, cylinder, Serial Range: head-block

7шт.

9

K906898

NUT

LIFTING NUT, 1/2 UNF, cylinder, Serial Range: head-block

2шт.

K900431

PLUG

TAPER PLUG

4шт.

10

K623810

PLUG

WELCH PLUG, 1 in.

1шт.

11

K19591

PLUG

FLANGED PLUG, 1/8 BSP

1шт.

K16732

WASHER

COPPER WASHER, 3/8 in.

1шт.

12

K608203

STUD

3/8 UNC x 1-7/16 in. manifold

12шт.

K608214

STUD

3/8 UNC x 2 in. - conduit to inlet manifold

2шт.

K608216

STUD

3/8 UNC x 1-3/8 in. - exhaust manifold

1шт.

13

K608107

STUD

5/16 UNC x 2-11/16 in. - injector

8шт.

9635082

NUT,5/16" - 18, Gr 5

8шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in.

8шт.

14

K905202

INSERT

- inlet seat

4шт.

15

K62034

INSERT

- exhaust seat

4шт.

16

K920675

COVER

engine breather (Supersedes K907108)

1шт.

17

K626901

O-RING,40554" ID x 40575" OD x 0.12"

"O" RING, 1-11/16 in. int. dia., engine breather

1шт.

18

K920677

BREATHER

CONNECTION, engine breather (Supersedes K909671)

1шт.

19

K909672

DISTRIBUTOR

DISTANCE PIECE, engine breather

1шт.

20

K920676

PIPE

BREATHER PIPE, engine breather (Supersedes K909669)

1шт.

21

K621668

NO LONGER SERVICED

HOSE CLIP, 5/8 in., engine breather

1шт.

K626443

WASHER

COPPER WASHER, 1/2 in., engine breather

2шт.

425-158

JAM NUT,Jam, 1/2"-20, G5

LOCKNUT, 1/2 UNF, Engine breather (Replaces K617371)

1шт.

K902765

PIPE

OIL PIPE - cylinder, Serial Range: block-head

1шт.

K619525

PLUG

5/8 UNF, temperature gauge aperture

1шт.

K626444

WASHER

COPPER WASHER, 5/8 in., temperature gauge aperture

1шт.

22

K909026

NO LONGER SERVICED

PIPE - water outlet

1шт.

23

K68951

O-RING,0.103" Thk x 2.112" ID, -138, Cl 5, 75 Duro

-138, 90 Duro, 2.112" ID x .103" Thk

1шт.

24

K900368

THERMOSTAT

1шт.

K910411

GASKET

1шт.

25

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

SETSCREW, 5/16 UNC x 1 in.

2шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in.

2шт.

26

K904195

FITTING

CONNECTION - by-pass

1шт.
