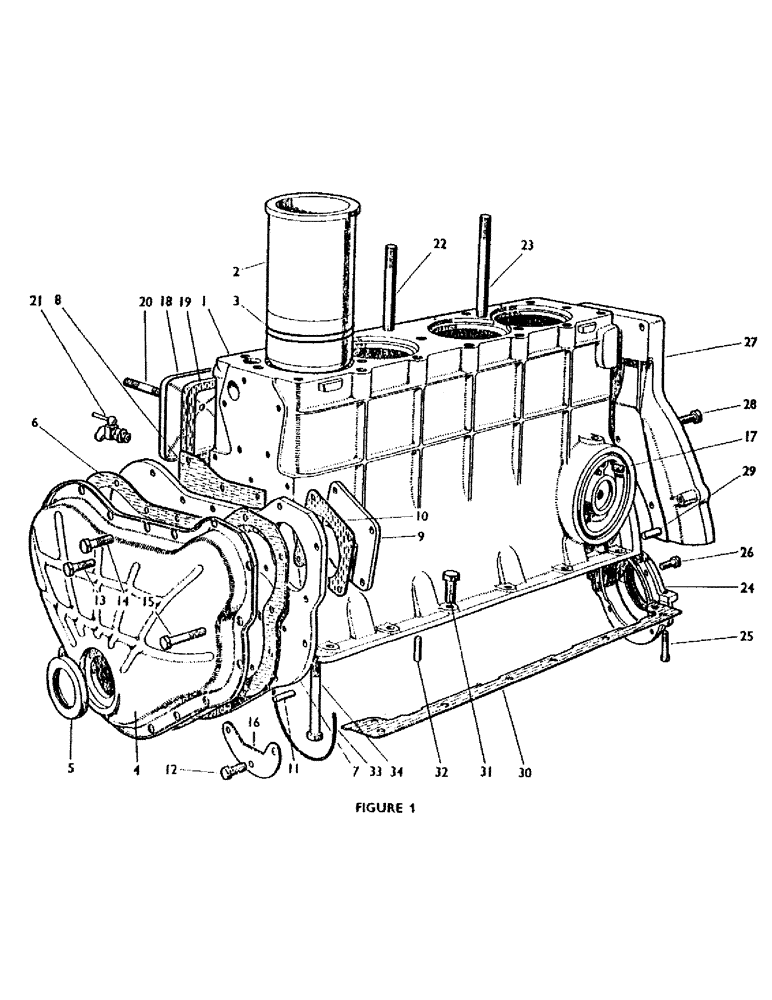

Запчасти Case IH AD4/47 (02S) - CYLINDER BLOCK, SLEEVES AND COVERS, AD4/47

1

K961005

BLOCK

CYLINDER BLOCK (Less sleeves)

1шт.

2

K906859

CYLINDER

SLEEVE

4шт.

3

K66385

O-RING,0.093" Thk x 3.875" ID, 65 Duro

SEAL - sleeve

8шт.

K12258

PIN

DOWEL, 5/16 x 3/4 in., main bearing caps to cylinder block

6шт.

K902022

BOLT

- 5/8 UNC x 3-5/8 in., main bearing caps to cylinder block

6шт.

K12994

BEARING WASHER

TAB WASHER, main bearing caps to cylinder block

6шт.

4

K910057

COVER

- timing gear

1шт.

5

K24855

NO LONGER SERVICED

OIL SEAL

1шт.

6

K910597

GASKET

-, Serial Range: cover-plate

1шт.

7

K904058

NO LONGER SERVICED

CARRIER PLATE

1шт.

8

K902031

GASKET

-, Serial Range: plate-block

1шт.

9

K904059

BLANKING PLATE

1шт.

10

K922543

GASKET

- blanking plate to carrier plate (Supersedes K904060)

1шт.

11

K621807

PIN

DOWEL -, Serial Range: cover-plate

4шт.

12

K602803

BOLT

5/16 UNC x 3/4 in. - carrier plate

4шт.

13

K602842

SCREW

SETSCREW, 5/16 UNC x 7/16 in.

9шт.

14

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

SETSCREW, 5/16 UNC x 1 in.

6шт.

15

K600325

BOLT

5/16 UNC x 2 in. (Replaces K600209)

1шт.

K602801

BOLT (SPREADER)

BOLT, 5/16 UNC x 1/2 in.

1шт.

9635082

NUT,5/16" - 18, Gr 5

3шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in.

21шт.

16

K902036

GASKET

BAFFLE PLATE

1шт.

17

K905217

PLUG

TAPER PLUG - oil cleaner mounting boss

1шт.

18

K10029

COVER

- tappets

2шт.

19

K10030

GASKET

- tappet cover

2шт.

20

K600408

BOLT,3/8" x 2"

3/8 UNC x 2 in. - tappet cover (Replaces K608206)

2шт.

K19504

WASHER,9.92mm ID x 14.29mm OD x 2mm Thk

FIBRE WASHER, 3/8 in.

2шт.

21

K622060

PLUG, DRAIN

DRAIN TAP (Replaces 89737)

1шт.

K922093

ADAPTER

ADAPTOR - drain tap

1шт.

K19502

WASHER

FIBRE WASHER, 7/8 in.

1шт.

K30421

SEALING WASHER

SEALING WASHER

1шт.

22

K906538

STUD

1/2 UNC/UNF x 4-7/8 in., cylinder head

8шт.

23

K906539

STUD

1/2 UNC/UNF x 5-3/16 in., cylinder head

4шт.

K600870

BOLT

special, 1/2 UNC x 4-1/4 in, cylinder head

7шт.

K609440

PLUG

5/8 UNC - oil gallery

1шт.

K626441

WASHER

COPPER WASHER

1шт.

K15512

WASHER

ROLLED COPPER WASHER

1шт.

24

K962319

BEARING

OIL RETAINER (With packing) (Supersedes K908398)

1шт.

K921611

OIL SEAL

PACKING (2 halves - oil retainer)

1шт.

25

K606558

SCREW

SOCKET SCREW, 5/16 UNC

2шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in.

2шт.

K914404

GASKET,0.18mm Thk

- oil retainer cylinder block

2шт.

26

280345

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

SETSCREW, 5/16 UNC x 7/8 in.

4шт.

K919481

BEARING

SPRING WASHER, 5/16 in.

4шт.

27

K903947

SUPPORT

PLATE - starter

1шт.

28

K602906

SCREW

SETSCREW, 3/8 UNC x 1-1/4 in.

6шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in.

6шт.

29

K12258

PIN

DOWEL

2шт.

K623523

O-RING,1.802" OD x 0.143" Width

"O" RING, 1-13/16 in. - camshaft rear bearing

1шт.

30

K902044

GASKET

left-hand, frame to cylinder block

1шт.

K902045

GASKET

right-hand, frame to cylinder block

1шт.

31

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

SETSCREW, 3/8 UNC x 1-1/8 in., frame to cylinder block

12шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in., frame to cylinder block

12шт.

32

K621834

PIN

DOWEL, frame to cylinder block

2шт.

33

K902046

SEAL

frame to cylinder block

2шт.

34

K600460

BOLT

3/8 UNC, special, frame to cylinder block

4шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in., frame to cylinder block

4шт.

K903851

PRESSURE SWITCH

SWITCH - oil warning light

1шт.

K19504

WASHER,9.92mm ID x 14.29mm OD x 2mm Thk

FIBRE WASHER, 3/8 in.

1шт.
