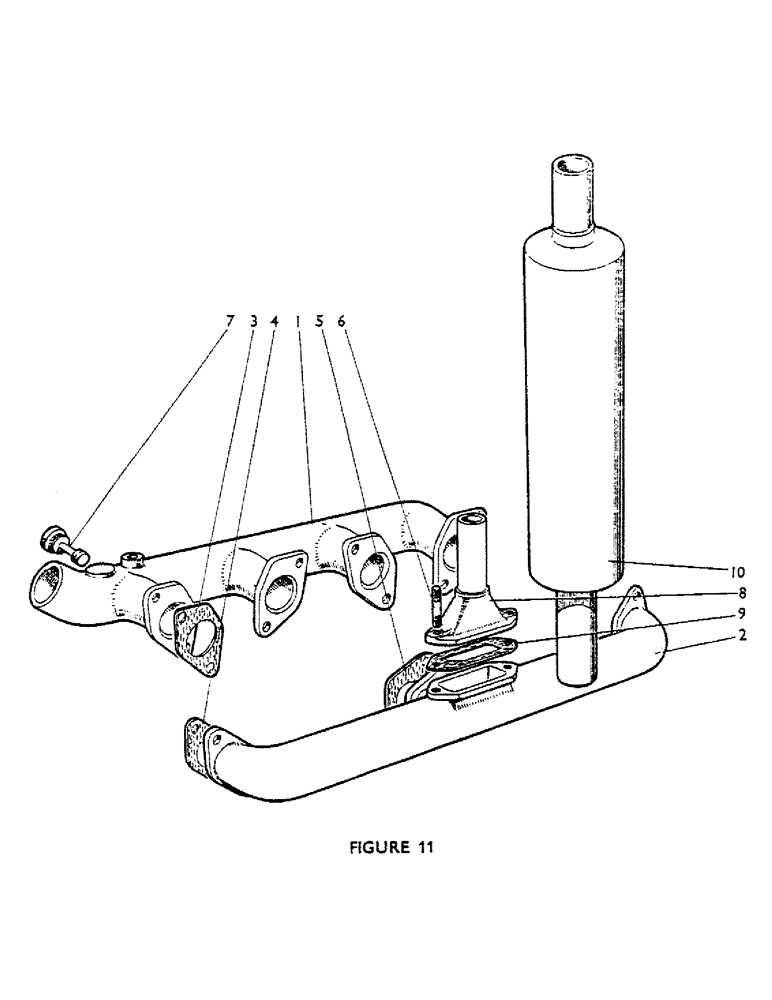

Запчасти Case IH AD4/47 (17S) - MANIFOLDS, AD4/47

1

K905206

TUBE ASSY.

MANIFOLD - air inlet

1шт.

2

K906744

MANIFOLD

- exhaust

1шт.

3

K917136

NO LONGER SERVICED

GASKET - inlet manifold

4шт.

4

K900771

NO LONGER SERVICED

GASKET - exhaust manifold

2шт.

5

K900772

GASKET

- exhaust manifold

1шт.

280136

NUT,3/8"-16, G8

17шт.

6

K608203

STUD

3/8 UNC x 1-7/16 in.

2шт.

7

K906039

PLUG

ETHER PLUG, 7/8 UNF

1шт.

K619532

PLUG

1/2 UNF - inlet manifold

1шт.

K11576

COPPER ASBESTOS WASHER

1шт.

8

K905165

FLANGE

- exhaust

1шт.

9

K68327

GASKET

- exhaust flange

1шт.

10

K914083

FLANGE

SILENCER

1шт.

K928668

PIPE,0.25" OD x 14" L

- exhaust manifold drain (Supersedes K908255)

1шт.

K626051

FITTING

UNION (Supersedes K908256)

1шт.

K622406

FERRULE

OLIVE (Supersedes K623204) 626051

1шт.

K617421

PIPE UNION NUT

UNION NUT (Supersedes K623204) 626051

1шт.
