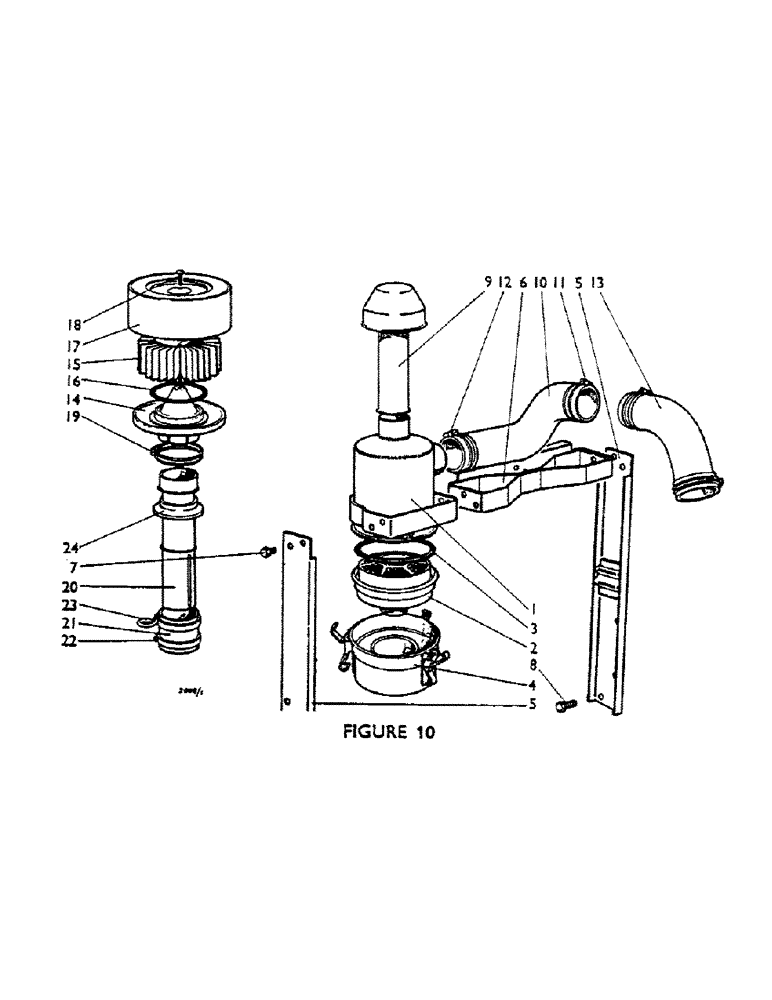

Запчасти Case IH AD4/47 (16S) - AIR CLEANER, TRACTOR 482001 TO 800000

1

K921205

CLEANER

AIR CLEANER (Complete) (Supersedes K917179), Includes: Ref. 2 - 4

1шт.

2

K900218

FILTER, ELEMENT

LOWER ELEMENT, Start Serial: 496283

1шт.

3

K920519

O-RING

RUBBER SEALING RING, Start Serial: 496283

1шт.

4

K920518

BOWL

(With toggle clips), Start Serial: 496283

1шт.

1

K917179

AIR CLEANER

(Complete), , Includes: Ref. 2 - 4

1шт.

2

K9200218

LOWER ELEMENT, Serial Range: 482001-496282

1шт.

3

K902981

SPARE PART

RUBBER SEALING RING, Serial Range: 482001-496282

2шт.

4

K916747

NO LONGER SERVICED

BOWL (With toggle clips), Serial Range: 482001-496282

1шт.

5

K921207

STRAP

SUPPORT BRACKET - air cleaner

2шт.

6

K627044

TIE BRACKET (Replaces K921208)

1шт.

7

K602803

BOLT

SETSCREW, 5/16 UNC x 3/4 in. - bracket to air cleaner

6шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in.

6шт.

9635082

NUT,5/16" - 18, Gr 5

6шт.

8

K602803

BOLT

SETSCREW, 5/16 UNC x 3/4 in. - bracket to front extension

4шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in.

4шт.

9

K917142

CLEANER

PRE-CLEANER

1шт.

10

K917133

PIPE CLAMP

PIPE - air, Serial Range: cleaner-radiator

1шт.

11

K622007

NO LONGER SERVICED

HOSE CLIP, 2-3/8 in. dia. (Replaces K13083)

2шт.

12

K622009

NO LONGER SERVICED

HOSE CLIP, 2-5/8 in. dia. (Replaces K13085)

2шт.

13

K908978

PIPE

-, Serial Range: radiator-manifold

1шт.

K961944

SPARE PART

TRANSFER - air cleaner

1шт.

K962001

DECAL

TRANSFER - "Negative Earth" (Supersedes K961934)

1шт.

14

K917861

BODY (Paper element type) - AC-Delco, U826 (911808) (Paper element pre-cleaner)

1шт.

15

K913601

CLEANER

PAPER ELEMENT, 917092, U826 (911808) (Paper element pre-cleaner)

1шт.

16

K917863

RING

SEALING RING - element, 917092, U826 (911808) (Paper element pre- cleaner)

2шт.

17

K917862

COVER

917092, U826 (911808) (Paper element pre-cleaner)

1шт.

18

K917864

SCREW

917092, U826 (911808) (Paper element pre-cleaner)

1шт.

19

K13083

NO LONGER SERVICED

HOSE CLIP - pre-cleaner, U826 (911808) (Paper element pre-cleaner)

1шт.

20

K917076

EXTENSION PIPE, 11-5/8 in., U826 (911808) (Paper element pre-cleaner)

1шт.

21

K917048

SLEEVE

RUBBER SLEEVE, U826 (911808) (Paper element pre-cleaner)

1шт.

22

K621933

CLIP

HOSE CLIP - air cleaner, U826 (911808) (Paper element pre-cleaner)

1шт.

23

K621940

HOSE CLIP - extension, U826 (911808) (Paper element pre-cleaner)

1шт.

24

K917010

FLANGE

DUST FLANGE, U826 (911808) (Paper element pre-cleaner)

1шт.

K915275

INLET MANIFOLD

EXTENSION PIPE, 32 in., U825 (911809) (Air cleaner extension)

1шт.

K917048

SLEEVE

RUBBER SLEEVE, U825 (911809) (Air cleaner extension)

1шт.

K621933

CLIP

HOSE CLIP - air cleaner, U825 (911809) (Air cleaner extension)

1шт.

K621940

HOSE CLIP - extension, U825 (911809) (Air cleaner extension)

1шт.

K917010

FLANGE

DUST FLANGE, U825 (911809) (Air cleaner extension)

1шт.
