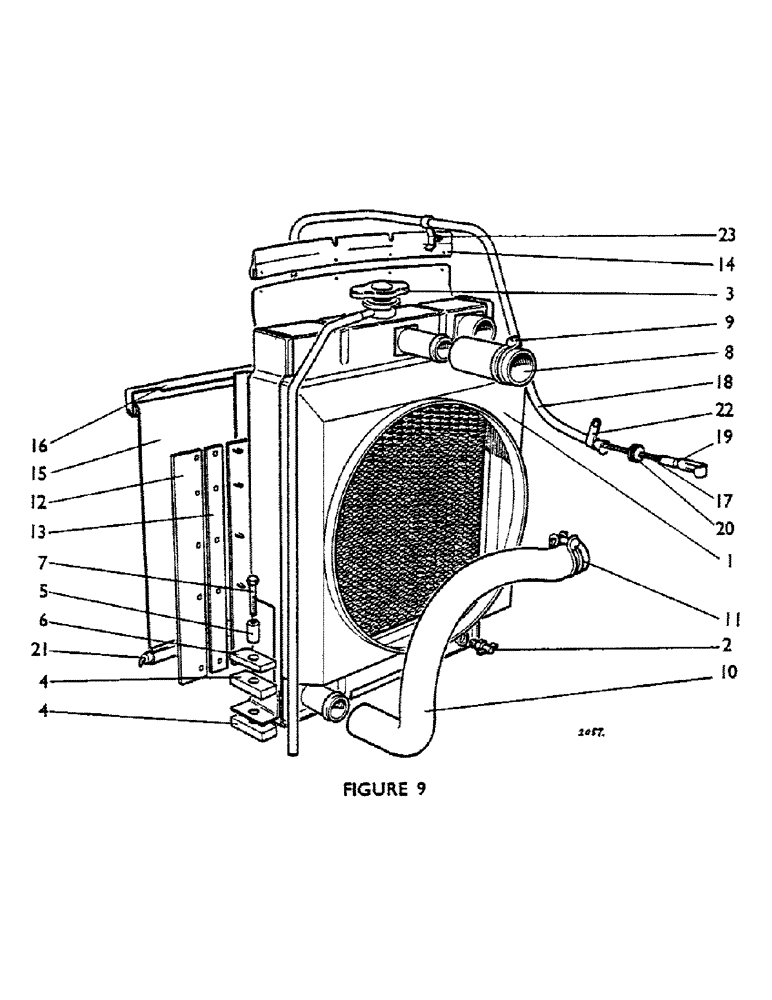

Запчасти Case IH AD4/47 (15S) - RADIATOR AND BLIND, TRACTOR 482001 TO 80000
№
Артикул
Название
Примечание
Количество
1
K916761
RADIATOR
50 mm. block
1шт.
1
K916762
RADIATOR
50 mm. block (Front drive)
1шт.
1
K916763
SPARE PART
RADIATOR, 80 mm. block
1шт.
2
K622060
PLUG, DRAIN
DRAIN TAP, 1/4 BSP
1шт.
K19501
WASHER
FIBRE WASHER
1шт.
3
K906196
CAP
FILLER CAP (Supplied with radiator)
1шт.
4
K908824
NO LONGER SERVICED
FOOT PACKING
4шт.
5
K908823
TUBE,0.562" OD x 0.875" L
DISTANCE TUBE
2шт.
6
K908822
NO LONGER SERVICED
CLAMPING PLATE
2шт.
7
K600406
BOLT
3/8 UNC x 1-3/4 in.
2шт.
K19482
SPRING WASHER
SPRING WASHER, 3/8 in.
2шт.
8
K921972
HOSE
- radiator inlet (Replaces K37575)
1шт.
9
K13078
BRACKET
HOSE CLIP, 1-7/8 in. dia.
3шт.
10
K926603
HOSE
- radiator outlet (Replaces K906875)
1шт.
11
K622081
HOSE
CLIP, 2 in. dia. (Replaces K13079)
1шт.
12
K920353
SPECIAL RING
SIDE BEADING
2шт.
13
K920356
STRIP
STIFFENING STRIP
2шт.
14
K913100
STRIP
SEALING STRIP - top
1шт.
K624070
RIVET
1/8 x 1/2 in.
4шт.
15
K908846
COVER
RADIATOR BLIND (Replaces K64924), U383 (906993) (Optional equipment)
1шт.
16
K64925
ROD
PULL ROD, U383 (906993) (Optional equipment)
1шт.
17
K912476
BRACKET
CONTROL CORD, U383 (906993) (Optional equipment)
1шт.
18
K907291
TUBE, U383 (906993) (Optional equipment)
1шт.
19
K89494
NO LONGER SERVICED
GRIP, U383 (906993) (Optional equipment)
1шт.
20
K89501
HARDWARE
BRASS FERRULE, U383 (906993) (Optional equipment)
1шт.
21
K36895
NO LONGER SERVICED
ANCHOR, U383 (906993) (Optional equipment)
1шт.
K11109
NUT
2 BA, U383 (906993) (Optional equipment)
1шт.
22
K621616
CLIP
control tube to inlet manifold, U383 (906993) (Optional equipment)
1шт.
23
K912667
CLIP, tube to air cleaner pipe, U383 (906993) (Optional equipment)
1шт.
K614983
SCREW, pan head, no. 10 UNF, tube to air cleaner pipe, U383 (906993) (Optional equipment)
1шт.
120614
NUT,Hex, #10 - 32
NUT, no. 10 UNF, tube to air cleaner pipe, U383 (906993) (Optional equipment)
1шт.
Выбрано товаров: 31
