Запчасти Case IH 996 (E11-1) - SELECTAMATIC HYDRAULIC SYSTEM, SINGLE RATE SENSING UNIT (07) - HYDRAULIC SYSTEM

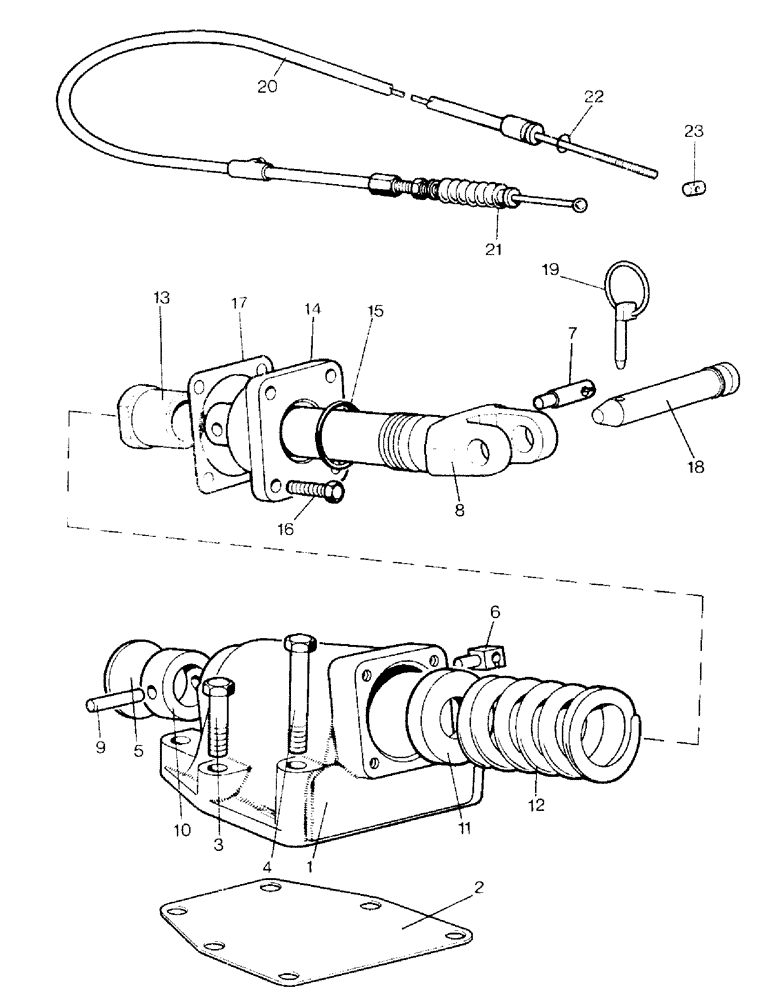

Схема запчастей Case IH 996 - (E11-1) - SELECTAMATIC HYDRAULIC SYSTEM, SINGLE RATE SENSING UNIT (07) - HYDRAULIC SYSTEM
13
9
8
7
16
18
22
2
20
3
5
1
6
23
21
19
10
17
14
11
15
12
4

Артикул

Название

Примечание

Количество

1a

K915092

SPRING

HOUSING (990, 995, 996, 990Q, 995Q, 996Q, 990SK, 995SK, 995SK)

1шт.

1b

K915111

SPRING

HOUSING (990G, 995G, 996G)

1шт.

2

K926451

GASKET,0.56mm Thk

, Serial Range: (Housing-PTO)

1шт.

3

K600805

BOLT

- 1/2 UNC x 1-7/8 in., Serial Range: (Housing-PTO)

4шт.

4

K600815

BOLT

- 1/2 UNC x 3-1/4 in., Serial Range: (Housing-PTO)

2шт.

K19484

LOCK WASHER

SPRING WASHER - 1/2 in., Serial Range: (Housing-PTO)

6шт.

5

K623813

PLUG

CORE PLUG - 2-3/8 in. dia.

1шт.

6

K912371

CABLE

SUPPORT - outer

1шт.

7

K913852

LARGE PIN

CABLE SUPPORT - inner

1шт.

8

K919726

SHAFT

1шт.

9

K915117

PIN

RETAINING PIN - 3/8 x 2-1/4 in.

1шт.

10

K915266

COLLAR

1шт.

11a

K915116

WASHER

THRUST WASHER - 0.405 in.

1шт.

11b

K915115

WASHER

THRUST WASHER - 0.395 in.

1шт.

11c

K915114

WASHER

THRUST WASHER - 0.385 in.

1шт.

11d

K915101

WASHER

THRUST WASHER - 0.375 in.

1шт.

11e

K915113

WASHER

THRUST WASHER - 0.365 in.

1шт.

11f

K915112

WASHER

THRUST WASHER - 0.355 in.

1шт.

12

K915103

SPRING

1шт.

13

K915259

SLEEVE

1шт.

14

K915261

FLANGE

END PLATE

1шт.

15

K623556

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

"O" RING - 1-7/8 in. internal dia.

1шт.

16

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

SETSCREW - 3/8 UNC x 1-1/8 in.

4шт.

K19482

SPRING WASHER

SPRING WASHER - 3/8 in.

4шт.

17a

K915098

SHIM,.030" Thk

1шт.

17b

K915097

SHIM,.010" Thk

1шт.

17c

K915096

SHIM,.005" Thk

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF (990, 995, 996, 990Q, 995Q, 996Q, 990SK, 995SK, 996SK) 1/4"-28 NPT x .54" lg

1шт.

K690973

FITTING

GREASE FITTING - 1/4 ANF x 45 degrees (990G, 995G, 996G)

1шт.

18

K919725

PIN,19.05mm OD x 111.13mm L

LINK PIN - top link

1шт.

19

K66408

PIN

LINCH PIN AND RING

1шт.

20

K963417

LINK

CABLE - inner and outer, Includes: Ref. 21

1шт.

21

K906182

RUBBER

DIRT EXCLUDER

1шт.

22

K690702

O-RING,1.59mm Thk x 6.75mm ID, 80 Duro

"O" RING - 1/4 in., internal dia.

1шт.

23

K915053

FITTING

PIN - 3/8 x 9/16 in., cable

1шт.

K617080

NUT

- no. 10 UNF

2шт.

Выбрано товаров: 36
