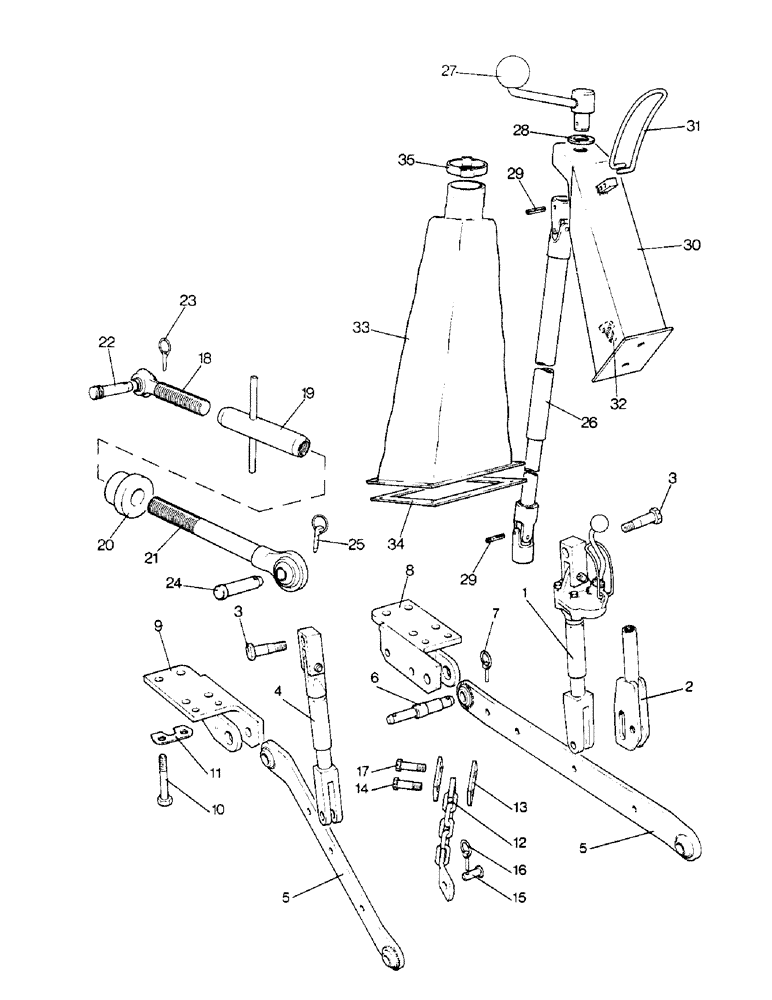

Запчасти Case IH 996 (E09-1) - SELECTAMATIC HYDRAULIC SYSTEM, THREE-POINT LINKAGE (07) - HYDRAULIC SYSTEM

1a

K955763

LINKAGE

LEVELLING LEVER ASSEMBLY - See Figure E10-1 (990Q, 995Q, 996Q)

1шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

1b

K940508

LEVER

LEVELLING LEVER ASSEMBLY - See Figure E10-1 (990Q, 995Q, 996Q)

1шт.

Used on models 990Q, 995Q, 996Q, up to S/N 11088300

1шт.

1c

K940508

LEVER

LEVELLING LEVER ASSEMBLY - See Figure E10-1 (990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q)

1шт.

1d

K954076

LEVER

LEVELLING LEVER ASSEMBLY - See Figure E10-1 (990SK, 995SK, 996SK)

1шт.

2

K945967

CLEVIS

ADJUSTING NUT - slotted (Optional equipment) (990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q)

2шт.

K19476

WASHER

- 3/4 in. (Optional equipment) (990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q)

2шт.

3

K914191

PIN

BOLT - 3/4 UNC, special

2шт.

K607446

NUT

CLEVELOC NUT - 3/4 UNC

2шт.

K19476

WASHER

- 3/4 in.

2шт.

4a

K940505

ROD

LIFT ROD ASSEMBLY - See Figure E10-1 (990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q)

1шт.

4b

K954079

ROD

LIFT ROD ASSEMBLY - See Figure E10-1 (990SK, 995SK, 996SK)

1шт.

5a

K923699

LINK

LOWER LINK - 35-1/2 in., standard (990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q)

2шт.

5b

K923698

LINK

LOWER LINK - 38-1/2 in., extended (990SK, 995SK, 996SK)

2шт.

6

K922634

PIN,31.75mm OD x 182.56mm L

PIVOT PIN - lower link

2шт.

7

K920359

PIN

LINCH PIN AND RING

2шт.

8

K921559

BRACKET

HITCH BRACKET - right-hand

1шт.

9

K921558

BRACKET

HITCH BRACKET - left-hand

1шт.

10a

K601410

BOLT

- 3/4 UNC x 3 in. (Brackets to rear axle) (990, 995, 996, 990G, 995G, 996G)

8шт.

10a

K601410

BOLT

- 3/4 UNC x 3 in. (Brackets to rear axle) (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

6шт.

10b

K601411

BOLT

- 3/4 UNC x 3-1/4 in. (Brackets to rear axle) (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

2шт.

11

K913121

WASHER

TABWASHER - (Brackets to rear axle)

4шт.

12

K946106

CHAIN (AG)

CHECK CHAIN ASSEMBLY, Includes: Ref. 13 & 14 and cleveloc nut

2шт.

13

K924022

PLATE

ADJUSTING PLATE

2шт.

14

K600804

BOLT

- 1/2 UNC x 1-3/4 in.

1шт.

K607462

NUT

CLEVELOC NUT - 1/2 UNC

1шт.

15

K946108

HEADED PIN

PIN - check chain, Serial Range: (Chains-links)

2шт.

16

K915678

PIN

LINCH PIN AND RING -, Serial Range: (Chains-links)

2шт.

17

K600804

BOLT

- 1/2 UNC x 1-3/4 in. (Chains to bridge plate)

2шт.

K607462

NUT

CLEVELOC NUT - 1/2 UNC (Chains to bridge plate)

2шт.

K956113

LINK

TOP LINK ASSEMBLY - standard, replaces K940504 (990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q), Includes: Ref. 18 - 21B

1шт.

K956114

LINK

TOP LINK ASSEMBLY - extended, replaces K940499 (990SK, 995SK, 996SK), Includes: Ref. 18 - 21B

1шт.

18

K920798

BALL

SCREW AND HOUSING - 8 in., right-hand

1шт.

19

K920800

TURNBUCKLE

- 1-1/4 BSF

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

1шт.

K19448

LOCK NUT

LOCKNUT - 1-1/4 BSF

1шт.

20

K955515

BUSHING

BUSH - link stowage (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

1шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

21a

K922790

SHAFT

SCREW AND HOUSING - 12 in., left-hand thread (990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q)

1шт.

21b

K922792

SHAFT

SCREW AND HOUSING - 15 in., left-hand thread (990SK, 995SK, 996SK)

1шт.

22

K919725

PIN,19.05mm OD x 111.13mm L

LINK PIN - sensing unit

1шт.

23

K66408

PIN

LINCH PIN AND RING

1шт.

24a

K903981

HITCH PIN

LINK PIN - category 1

1шт.

24b

K65690

HITCH PIN

LINK PIN - category 2

1шт.

25

K920359

PIN

LINCH PIN AND RING

1шт.

26

K956386

LINK

TELESCOPIC SPINDLE, levelling lever (990Q, 995Q, 996Q)

1шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

27

K956382

BALL

HANDLE - levelling lever (990Q, 995Q, 996Q)

1шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

28

K956383

WASHER

THRUST WASHER (990Q, 995Q, 996Q)

2шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

K921778

SHIM

- handle (990Q, 995Q, 996Q)

1шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

29

K691356

PIN

SPRING PIN - 5 x 25 MM (990Q, 995Q, 996Q)

2шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

30

K200134

BRACKET

SUPPORT BRACKET - levelling lever control (990Q, 995Q, 996Q)

1шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

31

K924723

SPRING

LATCH (990Q, 995Q, 996Q)

1шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

32

K602846

SCREW,5/16" - 18 x 5/8", Gr S

SETSCREW - 5/16 UNC x 5/8 in. (Bracket to cab) (990Q, 995Q, 996Q)

2шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

K19481

SPRING WASHER

SPRING WASHER - 5/16 in. (Bracket to cab) (990Q, 995Q, 996Q)

2шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16 UNC (Bracket to cab) (990Q, 995Q, 996Q)

2шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

33

K200144

COVER

- telescopic spindle (990Q, 995Q, 996Q)

1шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

34

K956020

CLAMP

PLATE - cover (990Q, 995Q, 996Q)

1шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

K19660

RIVET

- 1/8 x 3/8 in. (990Q, 995Q, 996Q)

4шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

K626309

WASHER

- 1/8 in. (990Q, 995Q, 996Q)

4шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

35

K621992

CLIP

- cover to bracket (990Q, 995Q, 996Q)

1шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.
