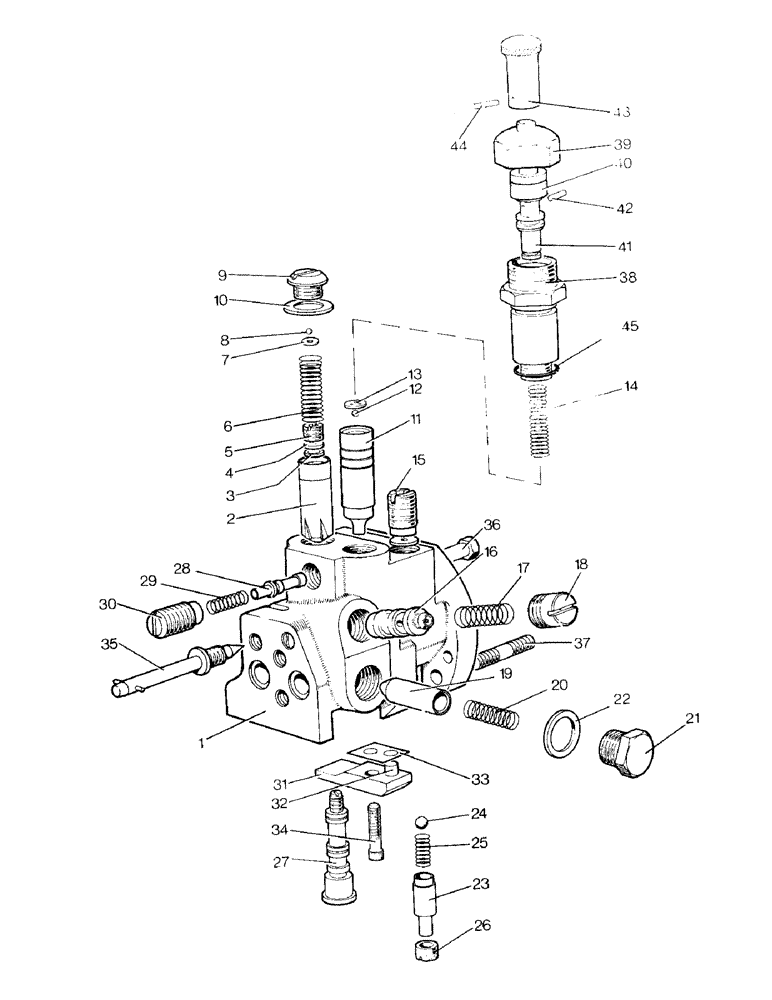

Запчасти Case IH 996 (E06-1) - SELECTAMATIC HYDRAULIC SYSTEM, CONTROL VALVE (07) - HYDRAULIC SYSTEM

1

K947765

VALVE

CONTROL VALVE ASSEMBLY, Includes: Ref. 2 - 30

1шт.

Use K953151 Valve & K944593, Needle Valve

1шт.

2

NSS

NOT SOLD SEPARAT

PLUNGER - by-pass valve

1шт.

3

K921154

FILTER

- by-pass plunger (By-pass valve)

1шт.

4

K913621

WASHER

RESTRICTOR WASHER (By-pass valve)

1шт.

5

K947759

PLUG

- 3/8 UNF, special (By-pass valve)

1шт.

6

K24832

SPRING

(By-pass valve)

1шт.

7

K947977

RETAINER

(By-pass valve)

1шт.

8

K11548

BALL

STEEL BALL - 1/8 in. (By-pass valve)

1шт.

9

K948067

PLUG

- 5/8 UNF, special (By-pass valve)

1шт.

10

K623515

SEAL,16.38mm ID x 25.53mm OD x 3.2mm Thk

ING WASHER - 5/8 in. (By-pass valve)

1шт.

11

NSS

NOT SOLD SEPARAT

PLUNGER - hold valve

1шт.

12

K11548

BALL

STEEL BALL - 1/8 in. (Hold valve)

1шт.

13

K920136

SHIM

RETAINER - ball (Hold valve)

1шт.

14

K24832

SPRING

(Hold valve)

1шт.

K913242

PLUG

- 5/8 UNF, without dump valve (Hold valve) (990, 995, 996, 990G, 995G, 996G)

1шт.

15

K961794

VALVE

RELIEF VALVE - pre-set assembly

1шт.

K625160

SPRING

- relief valve

1шт.

16

K944592

SPOOL

- rate of lowering

1шт.

17

K625108

SPRING

- rate of lowering valve

1шт.

18

K909397

SPRING

PLUG - 3/8 BSP, special

1шт.

19

K916395

PLUNGER

- non-return valve

1шт.

20

K625167

SPRING

- non-return valve

1шт.

21

K916397

PLUG

- 3/4 UNF, special

1шт.

22

K623530

SEAL

ING WASHER - 3/4 in.

1шт.

23

K909403

SPRING

PLUNGER - TCU valve

1шт.

24

K17063

BALL

STEEL BALL - 1/4 in.

1шт.

K626843

WASHER

- 1/8 in., special

1шт.

25

K625190

SPRING

- TCU valve

1шт.

26

K909398

CAP

FERRULE - 1/4 BSP

1шт.

27

NSS

NOT SOLD SEPARAT

SPOOL VALVE

1шт.

28

NSS

NOT SOLD SEPARAT

PLUNGER - latching valve

1шт.

29

K625180

SPRING

- latching valve

1шт.

30

K913971

PLUG

- 9/16 UNF, special

1шт.

31

K912464

WASHER

ABUTMENT PLATE

1шт.

32

K24853

PIN

DOWEL - 1/4 x 11/16 in. (Plate to valve body) (990, 995, 996, 990G, 995G, 996G)

1шт.

33a

K912465

SHIM,.003" Thk

(Plate to valve body) .003" Thk

1шт.

33b

K912466

SHIM,.007" Thk

(Plate to valve body) .007" Thk

1шт.

33c

K912467

SHIM,.015" Thk

(Plate to valve body) .015" Thk

1шт.

34

K606803

SCREW

WEDGELOCK SCREW - 1/4 UNC (Plate to valve body)

1шт.

35

K944593

NEEDLE

VALVE - lowering control

1шт.

K962813

GASKET

SEAL PACK - control valve

1шт.

36

K600211

BOLT

- 5/16 UNC x 2-1/4 in. (Valve to ramshaft bracket)

1шт.

37

K608143

STUD

- 5/16 UNC x 1-1/2 in. (Valve to ramshaft bracket)

2шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16 UNC (Valve to ramshaft bracket)

2шт.

K19481

SPRING WASHER

SPRING WASHER - 5/16 in. (Valve to ramshaft bracket)

2шт.

K953673

VALVE

DUMP VALVE ASSEMBLY (Optional equipment) (990, 995, 996, 990G, 995G, 996G), Not applicable in North America, Includes: Ref. 38 - 45

1шт.

K953672

HYDRAULIC VALVE

DUMP VALVE ASSEMBLY (Optional equipment) (990Q, 995Q, 996Q, 990SK, 995SK, 996SK), Not applicable in North America, Includes: Ref. 38 - 45

1шт.

38

K948804

GUIDE

BODY, Not applicable in North America

1шт.

39

K918983

NUT

- 1 in. UNF, special, Not applicable in North America

1шт.

40

K948805

BUSHING

BUSH, Not applicable in North America

1шт.

41

K964763

PLUNGER

Not applicable in North America

1шт.

42

K24871

GROOVED PIN,1/8" x 1/2", Type D

Pin, Grooved, (990, 995, 996, 990G, 995G, 996G), Not applicable in North America 1/8" x 1/2", Type D

1шт.

43

K919666

KNOB

(990, 995, 996, 990G, 995G, 996G), Not applicable in North America

1шт.

44

K623724

PIN

- 1/8 x 5/8 in. (990, 995, 996, 990G, 995G, 996G), Not applicable in North America

1шт.

45

K964568

SEAL

SEAL PACK - dump valve, Not applicable in North America

1шт.
