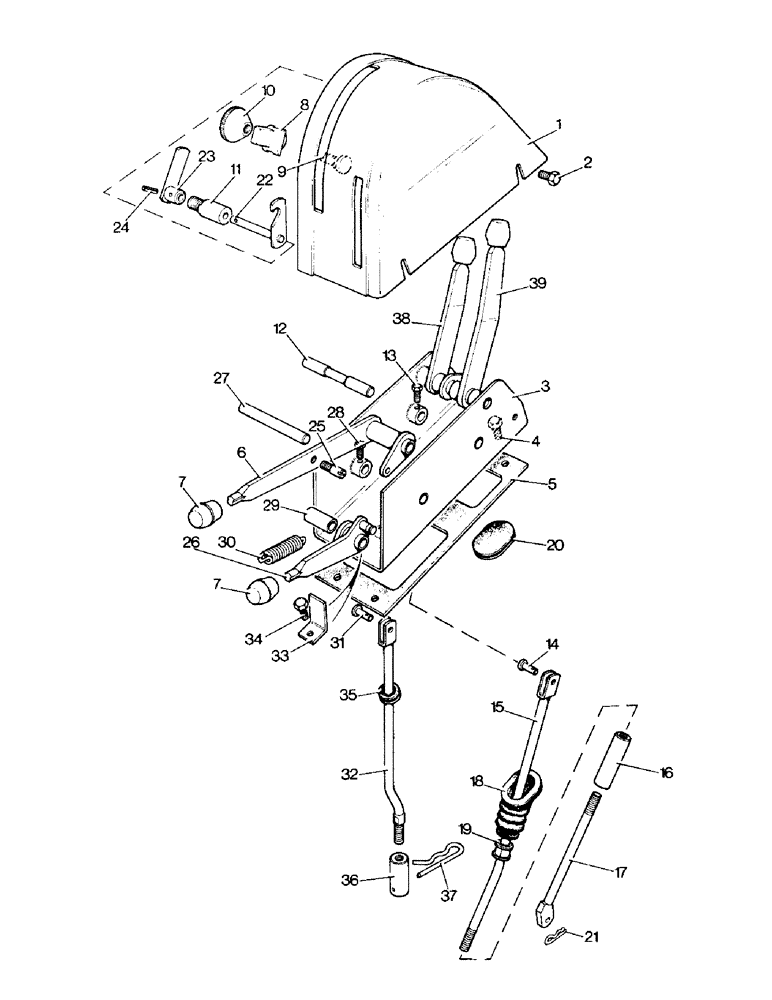

Запчасти Case IH 996 (E02-1) - SELECTAMATIC HYDRAULIC SYSTEM, CONTROL LEVERS AND QUADRANT, 990Q, 995Q, 996Q, 990SK, 995SK, 996SK (07) - HYDRAULIC SYSTEM

1

K950732

PANEL

QUADRANT

1шт.

2

K602846

SCREW,5/16" - 18 x 5/8", Gr S

SETSCREW - 5/16 UNC x 5/8 in., Serial Range: (Quadrant-housing)

4шт.

K626682

WASHER

- 5/16 in., Serial Range: (Quadrant-housing)

4шт.

3

K950733

LEVER

HOUSING - control levers

1шт.

4

K602846

SCREW,5/16" - 18 x 5/8", Gr S

SETSCREW - 5/16 UNC x 5/8 in., Serial Range: (Housing-cab)

4шт.

K19481

SPRING WASHER

SPRING WASHER - 5/16 in., Serial Range: (Housing-cab)

4шт.

5

K950882

MAT

RUBBER MAT, Serial Range: (Housing-cab)

1шт.

6

K950758

LEVER

CONTROL LEVER - hydraulic system

1шт.

7

K950493

KNOB

- control lever

2шт.

8a

K947403

BRACKET

FINGER GUIDE

2шт.

Used on models 990Q, 990SK, 995Q, 995SK, 996Q, 996SK, S/N 11088300 and after

1шт.

8b

K951340

BRACKET

FINGER GUIDE

2шт.

Used on models 990Q, 990SK, 995Q, 995SK, 996Q, 996SK, up to S/N 11088300

1шт.

9

K909577

STUD

- 5/16 UNF special

2шт.

10

K921826

SERRATED NUT

HAND NUT - 5/16 UNF

2шт.

11

K952324

STOP

- control lever

1шт.

K19473

WASHER

- 7/16 in., Serial Range: (Stop-quadrant)

1шт.

K19483

SPRING WASHER

SPRING WASHER - 7/16 in., Serial Range: (Stop-quadrant)

1шт.

K616983

NUT

- 7/16 UNC

1шт.

12

K950862

SHAFT

- control lever

1шт.

13

K619204

SCREW

SETSCREW - no. 10 UNF x 1/2 in.

1шт.

14

K950866

LARGE PIN

CLEVIS PIN

1шт.

K623605

PIN

SPLIT PIN - 1/16 x 1/2 in.

1шт.

15

K950843

ROD

CONTROL ROD - long

1шт.

K616982

NUT

- 3/8 UNF

1шт.

16

K950846

NUT

ADJUSTING SLEEVE

1шт.

K622808

NUT

LOCKNUT - 3/8 UNF, left-hand

1шт.

17

K950840

ROD

CONTROL ROD - short

1шт.

18

K950691

SEAL

GAITER - control rod

1шт.

19

K950871

BUSHING

NYLON BUSH - halves

2шт.

20

K627734

GROMMET

2шт.

21

K950865

CLIP

SPRING CLIP - control rod

1шт.

K19470

WASHER

- 1/4 in.

2шт.

K931966

SPARE PART

CATCH UNIT - U1948, Includes: Ref. 22 - 25 and spring washer and nut

1шт.

22

K952325

CATCH

- control lever

1шт.

23

K952328

CATCH

LEVER

1шт.

24

K623973

SPRING

PIN - 3/32 x 9/16 in.

1шт.

25

K952336

STOP

STUD - 1/4 UNC special

1шт.

K19480

SPRING WASHER

SPRING WASHER - 1/4 in.

1шт.

K607043

NUT

- 1/4 UNC

1шт.

26

K950769

LEVER

CONTROL LEVER - dump valve

1шт.

27

K950863

SHAFT

- dump lever

1шт.

28

K616414

SCREW

SETSCREW - no. 10 UNF x 1/2 in., replaces K613984

1шт.

29

K950898

BUSHING

SPACER

1шт.

30

K624922

SPRING

RETURN SPRING

1шт.

31

K950866

LARGE PIN

CLEVIS PIN

1шт.

K623605

PIN

SPLIT PIN - 1/16 x 1/2 in., Includes: Ref. 32

1шт.

32

K950856

VALVE

CONNECTING ROD

1шт.

33

K952523

BRACKET

STOP BRACKET - lever

1шт.

34

K602846

SCREW,5/16" - 18 x 5/8", Gr S

SETSCREW - 5/16 UNC x 5/8 in., Serial Range: (Bracket-cab)

1шт.

K19481

SPRING WASHER

SPRING WASHER - 5/16 in., Serial Range: (Bracket-cab)

1шт.

35

K950867

GROMMET

1шт.

36

K950894

CONNECTOR, ELEC

CONNECTING SLEEVE - 5/16 UNC

1шт.

425-115

NUT,5/16"-24, G5

- 5/16 UNC

1шт.

37

K624874

SPRING

CLIP

1шт.

38

K950762

LEVER

HAND LEVER - live take-off valve, See Figure E17-1

1шт.

39

K950766

LEVER

HAND LEVER - live take-off valve, See Figure E19-1

1шт.
