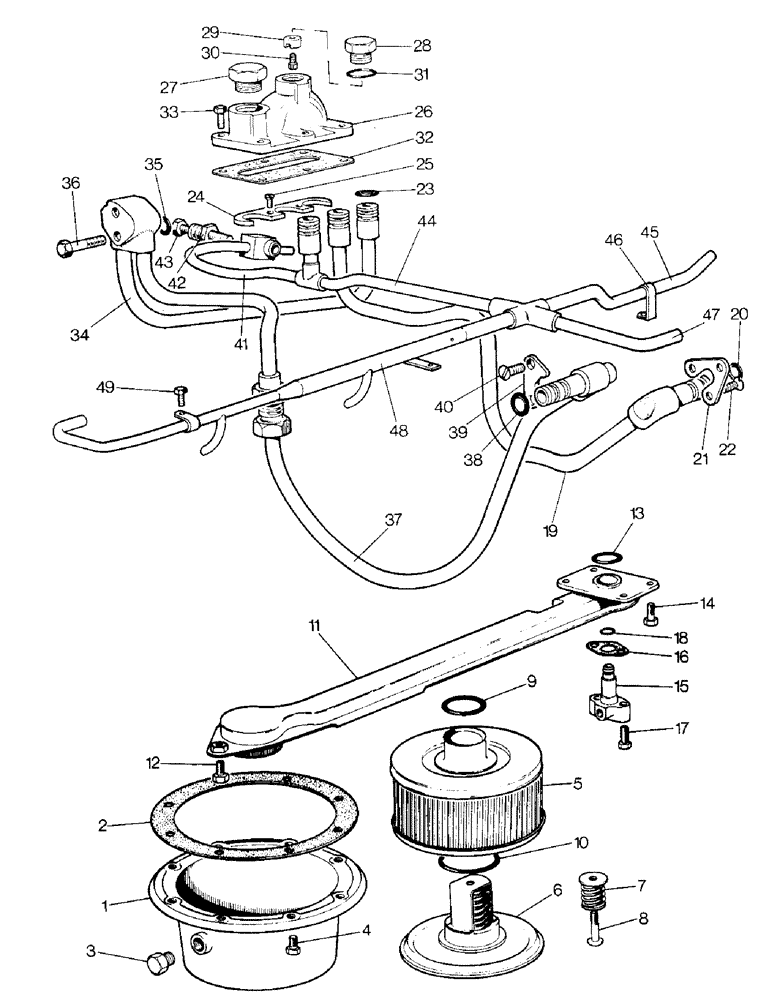

Запчасти Case IH 996 (E01-1) - SELECTAMATIC HYDRAULIC SYSTEM, OIL FILTER AND PIPES (07) - HYDRAULIC SYSTEM

1

K920520

COVER

REAR SUMP COVER

1шт.

2

K906764

GASKET

1шт.

3

K19581

PLUG

DRAIN PLUG - 1/4 BSP

1шт.

K626765

GASKET

SEALING WASHER - 1/2 in.

1шт.

4

9627874

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

SETSCREW - 5/16 UNC x 5/8 in.

8шт.

K19481

SPRING WASHER

SPRING WASHER - 5/16 in.

8шт.

K920806

FILTER, ELEMENT

FILTER ASSEMBLY, Includes: Ref. 5 - 10

1шт.

5

K920522

FILTER, ELEMENT

ELEMENT

1шт.

6

K920521

VALVE

AND SCREEN, Includes: Ref. 7 & 8 and nyloc nut

1шт.

7

K942788

PLUG

MAGNET

1шт.

8

K624300

SCREW

- 2BA x 1-1/2 in.

1шт.

K623002

LOCK NUT

NYLOC NUT - 2BA

1шт.

9

K15279

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

"O" RING - 1-3/8 in. internal dia.

1шт.

10

K623524

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

"O" RING - 2-1/8 in. internal dia.

1шт.

11

K920860

PIPE

OIL SUCTION PIPE

1шт.

12

K602850

SCREW,Set, 5/16" - 18 x 1 1/8", Gr S

SETSCREW - 5/16 UNC x 1-1/8 in.

1шт.

K626620

SPRING WASHER

SPRING WASHER /IN

1шт.

13

K15596

RING,3.63mm Thk x 31.34mm ID

"O" RING - 1-1/4 in. internal dia., Serial Range: (Pipe-pump)

1шт.

14

K12131

BOLT

- 1/4 BSF x 9/16 in., Serial Range: (Pipe-pump)

4шт.

K19480

SPRING WASHER

SPRING WASHER /IN, Serial Range: (Pipe-pump)

4шт.

15

K921214

ADAPTER

ADAPTOR - warning lamp switch

1шт.

Ref #15 - K921317 Switch fits in adapter 12/15/95

1шт.

16

K921220

GASKET

(Adaptor to PTO case)

1шт.

17

K602705

SCREW

SETSCREW - 1/4 UNC x 1 in. (Adaptor to PTO case)

2шт.

K19480

SPRING WASHER

SPRING WASHER - 1/4 in. (Adaptor to PTO case)

2шт.

18

K14658

O-RING,0.07" Thk x 0.239" ID

"O" RING - 1/4 in. internal dia.

1шт.

19

K952172

PIPE,11.281, 5.687" L

- pump outlet

1шт.

20

K24676

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

"O" RING - 5/8 in. internal dia.

1шт.

21

K89170

SHIM

CLAMPING PLATE

1шт.

22

K603662

SCREW

- 1/4 UNC x 5/8 in.

3шт.

23

K623557

O-RING

"O" RING - 9/16 in. internal dia.

3шт.

24

K915344

WASHER

LOCATING PLATE

1шт.

25

K603662

SCREW

- 1/4 UNC x 5/8 in.

2шт.

26

K917127

CONNECTOR, ELEC

CONNECTOR PLATE - axle case

1шт.

27

K619528

PLUG

- 7/8 UNF, oil return

1шт.

K30085

GASKET

FIBRE WASHER - 7/8 in.

1шт.

K947236

PLUG

MAGNETIC PLUG ASSEMBLY, Includes: Ref. 28 - 30

1шт.

28

K946937

CAP

PLUG

1шт.

29

K946949

MAGNET

1шт.

30

K19391

SCREW

- 4BA x 1/2 in.

1шт.

31

K623589

O-RING

"O" RING - 5/8 in. internal dia.

1шт.

32

K917387

GASKET

(Connector plate to rear axle case)

1шт.

33

K600403

BOLT

- 3/8 UNC x 1-3/8 in. (Connector plate to rear axle case)

4шт.

K19482

SPRING WASHER

SPRING WASHER - 3/8 in. (Connector plate to rear axle case)

4шт.

34

K952171

PIPE,6.312" L

- control valve

1шт.

35

K24779

O-RING,0.103" Thk x 0.424" ID, -11, Cl 6, 90 Duro

"O" RING - 7/16 in. internal dia.

2шт.

36

K600405

BOLT

- 3/8 UNC x 1-5/8 in.

2шт.

K19482

SPRING WASHER

SPRING WASHER - 3/8 in.

2шт.

37

K952173

PIPE,15.875, 11.062" L

- union to ram cylinder

1шт.

38

K24676

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

"O" RING - 5/8 in. internal dia.

2шт.

39

K910105

WASHER

CLAMPING PLATE

1шт.

40

K603662

SCREW

- 1/4 UNC x 5/8 in.

2шт.

41

K915339

TUBE

LUBRICATION PIPE -, Serial Range: valve-T-piece

1шт.

42

K912269

BUSHING

SCREWED BUSH - axle case

1шт.

86632558

JAM NUT,Jam, 1/2"-13, G5

LOCKNUT - 1/2 UNC

1шт.

K626577

WASHER

SEALING WASHER - 1/2 in.

1шт.

43

K602816

SCREW

SETSCREW - 5/16 UNC x 2-3/8 in.

1шт.

K607081

LOCK NUT

LOCKNUT - 5/16 UNC

1шт.

44

K915337

PIPE

- valve to cross piece

1шт.

45

K913783

PIPE

LUBRICATION PIPE - PTO

1шт.

46

K621660

CLIP

1шт.

47

K913785

PIPE,0.5" OD

LUBRICATION PIPE - ram cylinder

1шт.

K625009

SPRING

RETAINING CLIP - pipe to axle case

1шт.

Ref #47 - K625009 Clip Now retains pipe. 12/15/95

1шт.

48

K929551

PIPE,18.937, 4" L

LUBRICATION PIPE - gearbox

1шт.

49

K602701

BOLT

SETSCREW - 1/4 UNC x 1/2 in.

1шт.

K19480

SPRING WASHER

SPRING WASHER - 1/4 in.

1шт.

K962586

GASKET KIT

SEAL PACK

1шт.
