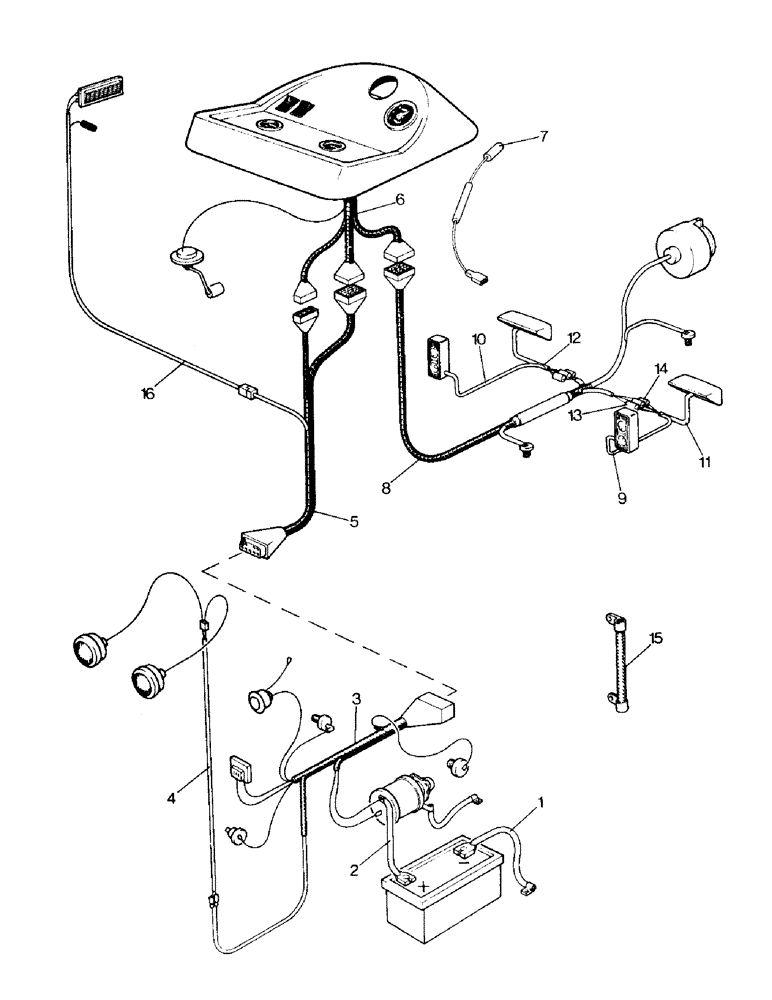

Запчасти Case IH 996 (M09-1) - ELECTRICAL EQUIPMENT, ELECTRICAL WIRING (06) - ELECTRICAL SYSTEMS

1

K913945

CABLE

-, Serial Range: battery-earth

1шт.

K602840

SCREW

SETSCREW - 5/16 UNC x 1/2 in.

1шт.

K11517

WASHER

SPRING WASHER - 5/16 in.

1шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16 UNC

1шт.

2

K947406

CABLE

-, Serial Range: battery-starter

1шт.

K15518

CLAMP

CABLE CLIP - starter cable

1шт.

K87560

CONTACT HOUSING

RUBBER COVER - starter terminal

1шт.

3a

K951378

HARNESS

WIRING HARNESS - engine auxiliaries (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

1шт.

3b

K955573

HARNESS

WIRING HARNESS - engine auxiliaries (990GSK, 995GSK, 996GSK)

1шт.

K19928

CLIP

BUCKLE CLIP

2шт.

4a

K921073

ELECTRICAL WIRE

HARNESS - inboard headlamps (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

1шт.

4b

K921072

HARNESS

- outboard headlamps (990SK, 995SK, 996SK)

1шт.

4c

K950253

ELECTRICAL WIRE

HARNESS - inboard headlamps (990GSK, 995GSK, 996GSK)

1шт.

K625006

CLIP

KWIK KLIP

9шт.

5a

K954904

HARNESS

WIRING HARNESS - front bulkhead (990Q, 995Q, 996Q)

1шт.

Used on models 990Q, 995Q, 996Q, S/N 11083020 and after

1шт.

5b

K951380

HARNESS

WIRING HARNESS - front bulkhead (990Q, 995Q, 996Q)

1шт.

Used on models 990Q, 995Q, 996Q, up to S/N 11083020

1шт.

5c

K953956

HARNESS

WIRING HARNESS - front bulkhead (990SK, 995SK, 996SK)

1шт.

5d

K955575

HARNESS

WIRING HARNESS - front bulkhead (990GSK, 995GSK, 996GSK)

1шт.

K951483

RETAINER

PLATE (Harness to instrument panel)

1шт.

K11855

SPRING WASHER - 9/64 in. (Harness to instrument panel)

4шт.

K607039

NUT

- no. 6 UNF (Harness to instrument panel)

4шт.

K953731

ELEC CONNECTOR

CONNECTOR - double blade

1шт.

6a

K951381

HARNESS

WIRING HARNESS - instrument panels (990Q, 995Q, 996Q, 990SK, 995SK, 996SK), Includes: Ref. 7

1шт.

6b

K955576

PANEL

WIRING HARNESS - instrument panel (990GSK, 995GSK, 996GSK), Includes: Ref. 7

1шт.

7

K952506

DIODE

1шт.

8a

K954905

HARNESS

REAR WIRING HARNESS

1шт.

Used on models 990Q, 995Q, 996Q, S/N 11083020 and after

1шт.

8b

K951382

HARNESS

REAR WIRING HARNESS

1шт.

Used on models 990Q, 995Q, 996Q, up to S/N 11083020

1шт.

9

K950656

WIRE HARNESS

HARNESS - side/flasher lamp, left-hand (990Q, 995Q, 996Q)

1шт.

10

K950657

WIRE HARNESS

HARNESS - side/flasher lamp, right-hand (990Q, 995Q, 996Q)

1шт.

11

K951406

HARNESS

- stop/rear lamp, left-hand (990Q, 995Q, 996Q)

1шт.

12

K951407

HARNESS

- stop/rear lamp, right-hand (990Q, 995Q, 996Q)

1шт.

13

K786230

DOUBLE CONNECTOR (990Q, 995Q, 996Q)

4шт.

14

K67916

ELEC CONNECTOR

SINGLE CONNECTOR (990Q, 995Q, 996Q)

2шт.

K946869

CONNECTOR, ELEC

SINGLE CONNECTOR - blade-type (990SK, 995SK, 996SK, 990GSK, 995GSK, 996GSK)

1шт.

K947474

TUBE

PLASTIC TUBE - 5/16 in., lamp leads' order in metres (990Q, 995Q, 996Q)

1шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

K625010

CLIP

WIRING CLIP (990Q, 995Q, 996Q)

3шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

K621665

CLIP

CABLE CLIP - lead to PTO case

2шт.

K625000

CLIP

CABLE CLIP - 3/8 in., leads to cab (990Q, 995Q, 996Q)

14шт.

86625206

SCREW,Phillips Drive, Pan HD, #10 - 32 x 1/2"

- no. 10 UNF x 1/2 in. (990Q, 995Q, 996Q)

2шт.

K626310

WASHER

- 3/16 in. (990Q, 995Q, 996Q)

2шт.

K626340

RING

SPRING WASHER - 3/16 in. (990Q, 995Q, 996Q)

2шт.

K617080

NUT

- no. 10 UNF (990Q, 995Q, 996Q)

2шт.

K626341

SPRING WASHER

SPRING WASHER - 1/4 in. (990Q, 995Q, 996Q)

7шт.

K607043

NUT

- 1/4 in. (990Q, 995Q, 996Q)

7шт.

K19930

GROMMET,3/8" ID x 5/8" Groove Dia

- 5/8 in. (990Q, 995Q, 996Q)

8шт.

15

K200606

ELECTRICAL WIRE

EARTH STRAP - cab to frame, replaces K947336 (990Q, 995Q, 996Q)

1шт.
