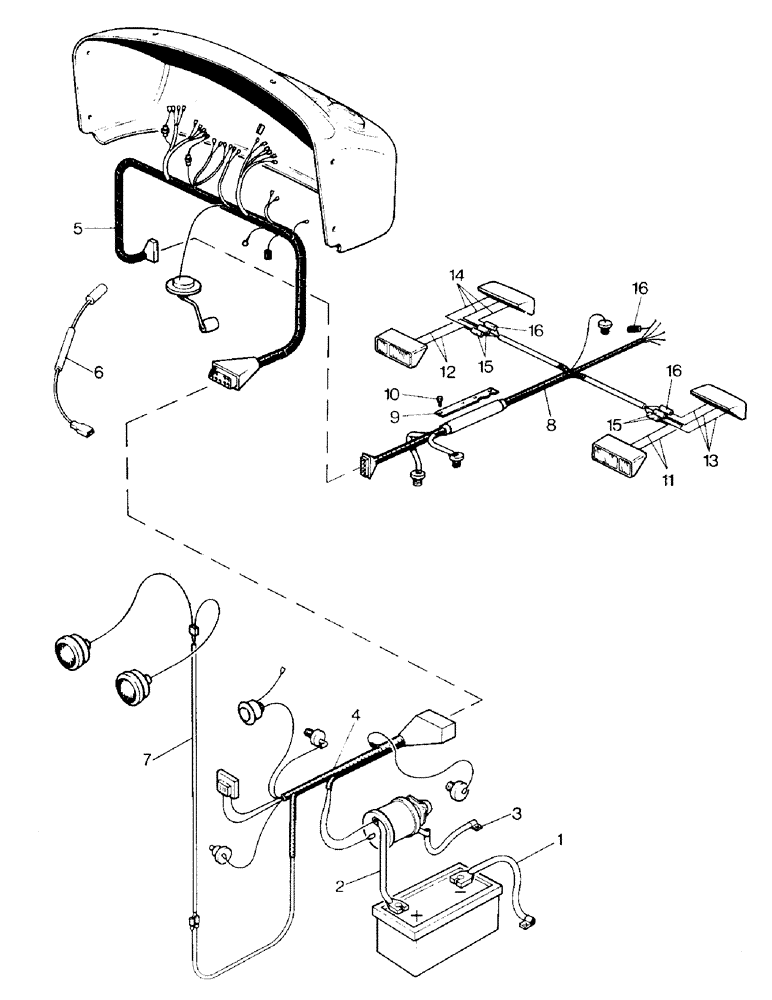

Запчасти Case IH 996 (M08-1) - ELECTRICAL EQUIPMENT, ELECTRICAL WIRING, TRACTORS WITH FULL FENDERS, 990, 995, 996, 990G, 995G, 996G (06) - ELECTRICAL SYSTEMS

1

K913945

CABLE

-, Serial Range: battery-earth

1шт.

K602840

SCREW

SETSCREW - 5/16 UNC x 1/2 in.

1шт.

K11517

WASHER

SPRING WASHER - 5/16 in.

1шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16 UNC

1шт.

2

K947406

CABLE

-, Serial Range: battery-starter

1шт.

K15518

CLAMP

CLIP - starter cable

1шт.

K87560

CONTACT HOUSING

RUBBER COVER - starter terminal

1шт.

3

K918762

CABLE

-, Serial Range: starter-earth

1шт.

4a

K948070

HARNESS

WIRING HARNESS - engine auxiliaries (990, 995, 996)

1шт.

4b

K950251

HARNESS

WIRING HARNESS - engine auxiliaries (990G, 995G, 996G)

1шт.

K621711

CLIP

- 1/8 in. (Harness to fuel tank support) (990, 995, 996)

2шт.

K621718

CLIP - 1 in. (Harness to fuel tank support) (990G, 995G, 996G)

2шт.

K602982

SCREW,3/8" - 16 x 3/4", Gr S

SETSCREW - 3/8 UNC x 3/4 in. (Harness to fuel tank support)

1шт.

K19482

SPRING WASHER

SPRING WASHER - 3/8 in. (Harness to fuel tank support)

1шт.

280136

NUT,3/8"-16, G8

(Harness to fuel tank support) 3/8"-16, G8

1шт.

K19928

CLIP

BUCKLE CLIP

4шт.

5a

K948071

HARNESS

WIRING HARNESS - instrument panel (990, 995, 996), Includes: Ref. 6

1шт.

5b

K954520

PANEL

WIRING HARNESS - instrument panel (990G, 995G, 996G), Includes: Ref. 6

1шт.

6

K952506

DIODE

- part of panel harness

1шт.

K929754

SOCKET/RECEPTACLE

SOCKET - auxiliary feed (990G, 995G, 996G)

1шт.

K625003

CLIP

KWIK KLIP - 3/8 in.

2шт.

K625004

CLIP

KWIK KLIP - 1/2 in.

1шт.

K925268

BLADE

CONNECTOR - 25 amp (990, 995, 996)

1шт.

K925268

BLADE

CONNECTOR - 25 amp (990G, 995G, 996G)

2шт.

86625206

SCREW,Phillips Drive, Pan HD, #10 - 32 x 1/2"

- no. 10 UNF x 1/2 in. (Connector to tank support)

1шт.

K626340

RING

WASHER - 3/16 in. (Connector to tank support)

1шт.

K617080

NUT

- no. 10 UNF (Connector to tank support)

1шт.

7a

K921072

HARNESS

- outboard headlamps (990, 995, 996)

1шт.

7b

K921073

ELECTRICAL WIRE

HARNESS - unboard headlamps (990, 995, 996)

1шт.

7c

K950213

WIRE HARNESS

HARNESS - inboard headlamps (990G, 995G, 996G)

1шт.

K625006

CLIP

KWIK KLIP - 1/4 in., headlamp leads

9шт.

8

K948072

HARNESS

REAR WIRING HARNESS

1шт.

9

K945688

COVER

PLATE (Harness to gearbox cover)

1шт.

10

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SETSCREW - 1/4 UNC x 1/2 in. (Harness to gearbox cover)

4шт.

K626341

SPRING WASHER

SPRING WASHER - 1/4 in. (Harness to gearbox cover)

4шт.

K625003

CLIP

KWIK KLIP - 3/8 in. (Harness to axle) (990, 995, 996)

2шт.

K625003

CLIP

KWIK KLIP - 3/8 in. (Harness to axle) (990G, 995G, 996G)

3шт.

K625006

CLIP

KWIK KLIP - 1/4 in. (Harness to axle) (990G, 995G, 996G)

2шт.

K921633

CLIP - 5/16 in. stop lamp lead

3шт.

11

K945589

HARNESS

- side/flasher lamp, left-hand

1шт.

12

K945591

HARNESS

- side/flasher lamp, right-hand

1шт.

13

K945590

HARNESS

- stop/rear lamp, left-hand

1шт.

14

K945592

HARNESS

- stop/rear lamp, right-hand

1шт.

K625000

CLIP

CABLE CLIP - 3/8 in. (Harnesses to full fenders)

14шт.

K626341

SPRING WASHER

SPRING WASHER - 1/4 in. (Harnesses to full fenders)

12шт.

K607043

NUT

- 1/4 in. (Harnesses to full fenders)

12шт.

86625206

SCREW,Phillips Drive, Pan HD, #10 - 32 x 1/2"

- no. 10 UNC x 1/2 in. (Harnesses to full fenders)

2шт.

K626310

WASHER

- 3/16 in. (Harnesses to full fenders)

2шт.

K626340

RING

SPRING WASHER - 3/16 in. (Harnesses to full fenders)

2шт.

K617080

NUT

- no. 10 UNF (Harnesses to full fenders)

2шт.

K19930

GROMMET,3/8" ID x 5/8" Groove Dia

- 5/8 in. (Harnesses to full fenders)

8шт.

15

K86230

CONNECTOR, ELEC

DOUBLE CONNECTOR (990, 995, 996)

6шт.

15

K86230

CONNECTOR, ELEC

DOUBLE CONNECTOR (990G, 995G, 996G)

4шт.

16

K67916

ELEC CONNECTOR

SINGLE CONNECTOR

2шт.
