Запчасти Case IH 996 (A10-1) - ENGINE, RADIATOR AND BLIND, 990, 990G, 995, 995G, 996, 996G, 990Q, 990SK, 995Q, 995SK, 996Q, 996SK (01) - ENGINE

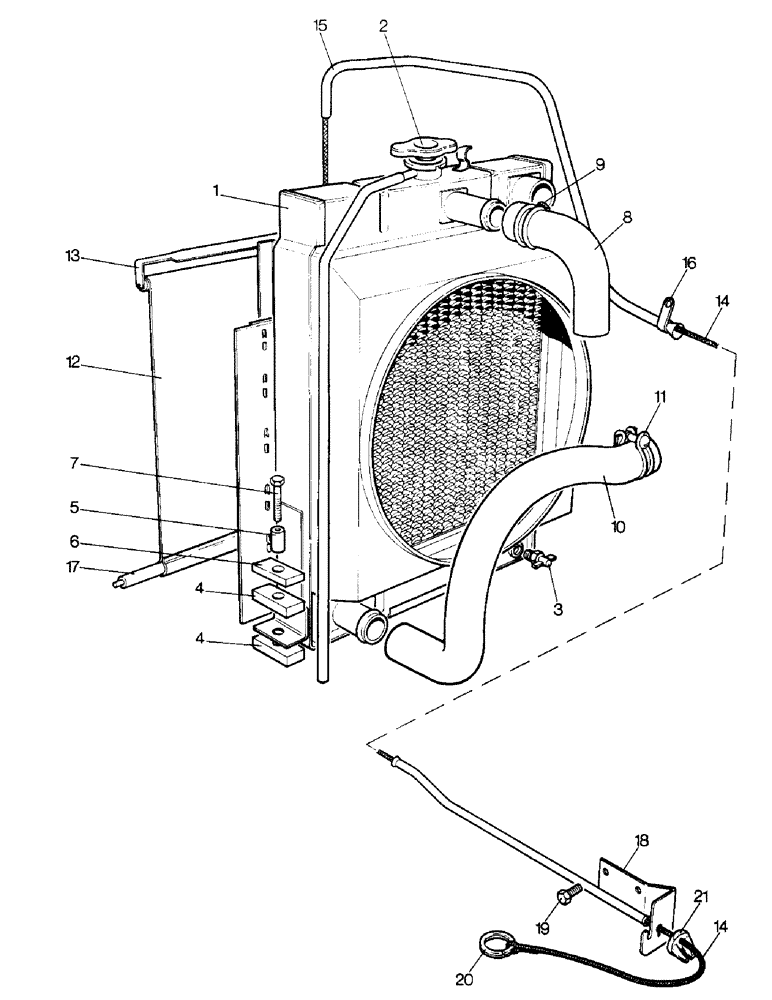

Схема запчастей Case IH 996 - (A10-1) - ENGINE, RADIATOR AND BLIND, 990, 990G, 995, 995G, 996, 996G, 990Q, 990SK, 995Q, 995SK, 996Q, 996SK (01) - ENGINE
11
13
3
6
1
18
21
14
4
4
8
9
20
10
5
14
16
15
7
2
12
17
19

Артикул

Название

Примечание

Количество

1a

K922058

RADIATOR

- 2-1/4 in. block standard (990, 990G, 990Q, 990SK) (replaced K922057)

1шт.

1b

K922058

RADIATOR

- 2-1/2 in. block standard (995, 995G, 996, 996G, 995Q, 995SK, 996Q, 996SK)

1шт.

1c

K942878

RADIATOR

- 2-3/4 in. block tropical (995, 995G, 996, 996G, 995Q, 995SK, 996Q, 996SK)

1шт.

2a

K945363

CAP

FILLER CAP - 4 lb/ in. squared for K922057/8

1шт.

2b

K945362

CAP

FILLER CAP - 7 lb/ in. squared for K942878

1шт.

3

K622060

PLUG, DRAIN

DRAIN TAP - 1/4 BSP

1шт.

K19501

WASHER

FIBRE WASHER

1шт.

4

K921836

WEDGE

FOOT PACKING

4шт.

5

K908823

TUBE,0.562" OD x 0.875" L

DISTANCE PIECE

2шт.

6

K921837

SHIM

CLAMPING PLATE

2шт.

7

K600406

BOLT

- 3/8 NC x 1-3/4 in.

2шт.

K19482

SPRING WASHER

SPRING WASHER - 3/8 in.

2шт.

8

K921972

HOSE

- radiator inlet

1шт.

9

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

HOSE CLIP - 1-7/8 in. dia. (Replaced K622029)

4шт.

10

K948453

HOSE

- radiator outlet

1шт.

Ref #10 - K948453 is to bend 2 1/2" 12-15-95

1шт.

11

K622081

HOSE

CLIP - 2 in.

1шт.

K930291

SPARE PART

RADIATOR BLIND UNIT - U1432 (990, 990G, 995, 995G, 996, 996G), Includes: Ref. 12 - 21

1шт.

K930291 "Not Sold in N. America

1шт.

12

K908846

COVER

RADIATOR BLIND (990, 990G, 995, 995G, 996, 996G)

1шт.

13

K64925

ROD

PULL ROD (990, 990G, 995, 995G, 996, 996G)

1шт.

14

K67196

ROPE

CONTROL CORD (990, 990G, 995, 995G, 996, 996G)

1шт.

15

K921969

TUBE

(990, 990G, 995, 995G, 996, 996G)

1шт.

16

K621616

CLIP

- tube to manifold (990, 990G, 995, 995G, 996, 996G)

1шт.

T34928

GROMMET - 3/8 in. (990, 990G, 995, 995G, 996, 996G) (replaced K627749)

1шт.

17

K921971

ROD

ANCHOR - blind (990, 990G, 995, 995G, 996, 996G)

1шт.

K19520

PIN

SPLIT PIN - 1/16 x 3/8 in. (990, 990G, 995, 995G, 996, 996G)

1шт.

18

K954208

GUIDE

REAR GUIDE TUBE (990, 990G, 995, 995G, 996, 996G)

1шт.

19

9627874

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

SETSCREW - 5/16 UNC x 5/8 in. (990, 990G, 995, 995G, 996, 996G)

2шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16 UNC (990, 990G, 995, 995G, 996, 996G)

2шт.

K19481

SPRING WASHER

SPRING WASHER - 5/16 in. (990, 990G, 995, 995G, 996, 996G)

2шт.

20

K952646

KEY

RING (990, 990G, 995, 995G, 996, 996G)

1шт.

21

K952633

ROD

ANCHOR - cord (990, 990G, 995, 995G, 996, 996G)

1шт.

Выбрано товаров: 33
